Wilkins 1 1/4" 975XL2

Name: 114-975XL2
Brand: ZURN INDUSTRIES LLC - FLORIDA
SKU: 114-975XL2
Price: 1959.19 USD
Availability: InStock

SKU: 114-975XL2

$1959.19

Log In or Call for Pro Pricing

The Wilkins 975XL2 is the lead free version of the 975XL. It is a wye pattern reduced pressure zone device. Bronze body construction with replacable seat. A special seat removal tool is required for servicing the seats. This device is Lead Free compliant.

Warehouse Availability

Low Stock

Dallas, TX

Lead Free

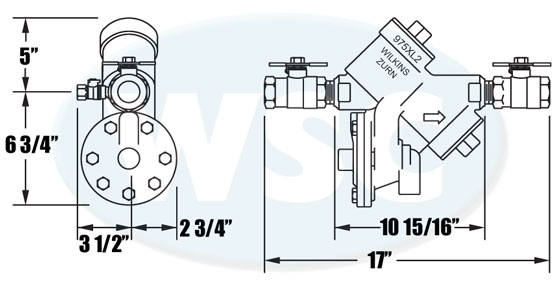

Lay Length: 17"

Weight: 28 lbs

Connections: 1 1/4" NPT Inlet/Outlet

Configuration: Horizontal or vertical (up or down) installation

Temperature Range: 32 - 180F

Maximum Working Pressure: 175 psi

en:

Specification Sheet

Maintenance Manual

Wilkins SXL Series Wye Strainer

1 1/4" IPS Threads

#20 Mesh Screen

300psi WOG

180F Max Temperature

Brass Nipple Included

Air Gap Drain Fitting
The air gap drain fitting is designed to attach to the relief port on a Reduced Pressure Zone (RPZ) backflow device and pipe to a drain to direct any discharge to a safe place. Bottom features a 2" Female NPT Connection.
