Wilkins 3/4" 975XL2

Name: 34-975XL2
Brand: ZURN INDUSTRIES LLC - FLORIDA
SKU: 34-975XL2
Price: 1065.83 USD
Availability: InStock

SKU: 34-975XL2

$1065.83

Log In or Call for Pro Pricing

The Wilkins 975XL2 is the lead free version of the 975XL. It is a wye pattern reduced pressure zone device. Bronze body construction with replaceable seat. A special seat removal tool is required for servicing the seats. This device is Lead Free compliant.

Warehouse Availability

In Stock

Dallas, TX

Orlando, FL

Reno, NV

Low Stock

Edison, NJ

Lead Free

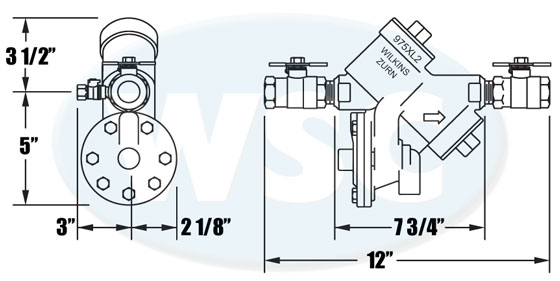

Lay Length: 12"

Weight: 12 lbs

Connections: 3/4" NPT Inlet/Outlet

Configuration: Horizontal or vertical (up or down) installation

Temperature Range: 32 - 180F

Maximum Working Pressure: 175 psi

en:

Specification Sheet

Maintenance Manual

Wilkins SXL Series Wye Strainer

3/4" IPS Threads

#20 Mesh Screen

300psi WOG

180F Max Temperature

Brass Nipple Included

Air Gap Drain Fitting
The air gap drain fitting is designed to attach to the relief port on a Reduced Pressure Zone (RPZ) backflow device and pipe to a drain to direct any discharge to a safe place. Bottom features a 1" Female NPT Connection.
