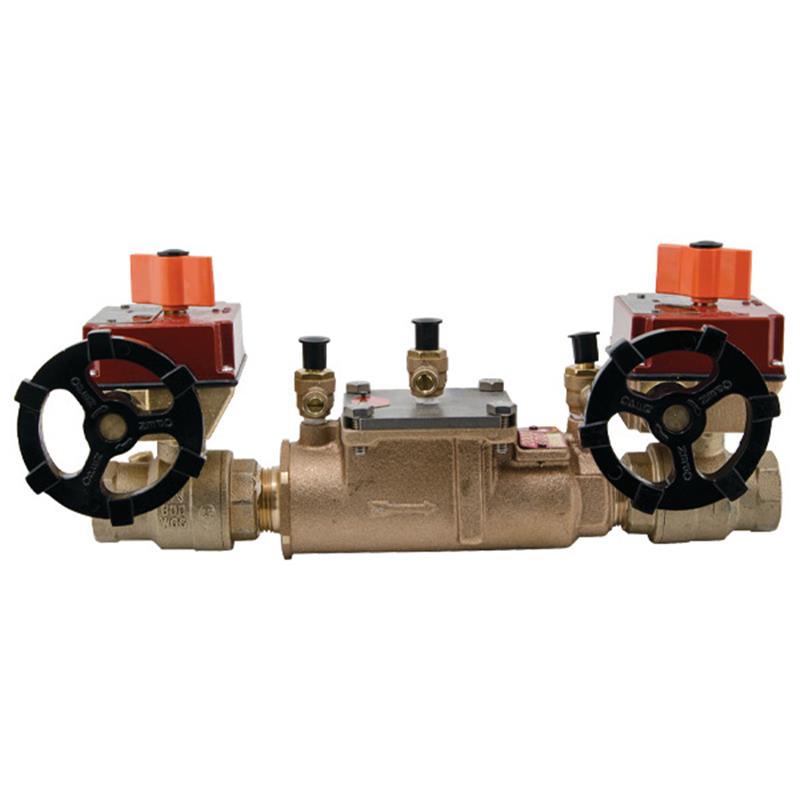

1 1/2 2000BM2-FP

Item Number: 88007306
1 1
$3,561.00
Limited Stock (8)
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Brand - Ames
  • Size: 1 1/2 inch
  • Weight: 21.2 lb
  • Body Material: Bronze
  • Maximum Working Pressure: 175 PSI
  • Temperature Range: 33°F – 140°F
  • Inlet/Outlet Connections: Female NPT
  • Gear Operated Slow Close Isolation Valves, Right-Hand Close
  • Two Pre-wired Tamper Switches
  • Approved for horizontal and vertical installation

Description

This 1 1/2 inch bronze double check valve assembly backflow preventer prevents polluted water from flowing back into potable water supplies. Designed for non-health hazard cross-connection applications, it features a compact, modular bronze body with right-hand close gear operated slow close isolation valves and female NPT inlet/outlet connections. It has a maximum working pressure of 175 PSI and operates within a temperature range of 33°F to 140°F. Maintenance is simplified with a single top entry access cover, replaceable seats, and no special tools required. This assembly is approved for both horizontal and vertical installations, meeting ASSE 1015 and AWWA C510 standards.

Help Me Connect

Connections

  • The inlet and outlet connections are 1 1/2 inch Female NPT (National Pipe Taper) threads.
  • This assembly is designed for use at cross-connections to prevent backflow into the potable water supply.
  • It is approved for installation in both horizontal and vertical orientations.
View full details

Additional Details

This 1 1/2 inch double check valve assembly backflow preventer is designed to prevent the reverse flow of polluted water into the potable water supply. It is suitable for use at cross-connections identified as non-health hazard applications.

Features

  • Compact and modular design with a bronze body construction.
  • One top entry access cover and replaceable seats and seat discs for ease of maintenance.
  • Equipped with right-hand close gear operated slow close isolation valves.
  • Includes two pre-wired tamper switches and four resilient seated test cocks.
  • Engineered for low pressure drop and requires no special tools for service.
  • Approved for both horizontal and vertical installations.

It is illegal to use this product in any plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States. Before installing, consult your local water authority, building and plumbing codes.

Specifications

General

  • Size: 1 1/2 inch
  • Body Material: Bronze
  • Type: Double Check Valve Assembly Backflow Preventer
  • Design: Compact, Modular

Performance

  • Maximum Working Pressure: 175 PSI
  • Temperature Range: 33°F – 140°F (0.5°C – 60°C)
  • Operation: Gear Operated, Slow Close Isolation Valves, Right-Hand Close
  • Check Modules: Two positive seating, with captured springs and rubber seat discs

Components

  • Inlet/Outlet Connections: Female NPT
  • Access: Single Top Entry Cover
  • Switches: Two Pre-wired Tamper Switches
  • Test Cocks: Four Resilient Seated

Approvals & Standards

  • ASSE: 1015 Listed
  • AWWA: Standard C510 Compliant
  • UL: Classified (US & Canada)
  • IAPMO/CUPC: Approved
  • CSA: B64.5 Compliant
  • NFPA: 13, 14, 15, 16, 20, 22 & 24 Compliant
  • Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR-USC): Approved

FAQs

What is the primary purpose of this 1 1/2 inch backflow preventer?

Its primary purpose is to prevent the backflow of polluted or non-potable water from cross-connections into the clean potable water supply. It is used in applications identified as non-health hazards.

What are the connection types for this backflow preventer?

This backflow preventer features 1 1/2 inch Female NPT (National Pipe Taper) connections for both the inlet and outlet.

Can this backflow preventer be installed in any orientation?

Yes, this assembly is approved for both horizontal and vertical installations, providing flexibility for various plumbing configurations.

What is the maximum operating pressure and temperature range for this device?

The maximum operating pressure for this assembly is 175 PSI. It is designed to operate within a temperature range of 33°F (0.5°C) to 140°F (60°C).

What materials is this backflow preventer constructed from?

The body of this double check valve assembly is constructed from durable bronze. It also includes rubber seat discs and stainless steel bolts for internal components.
