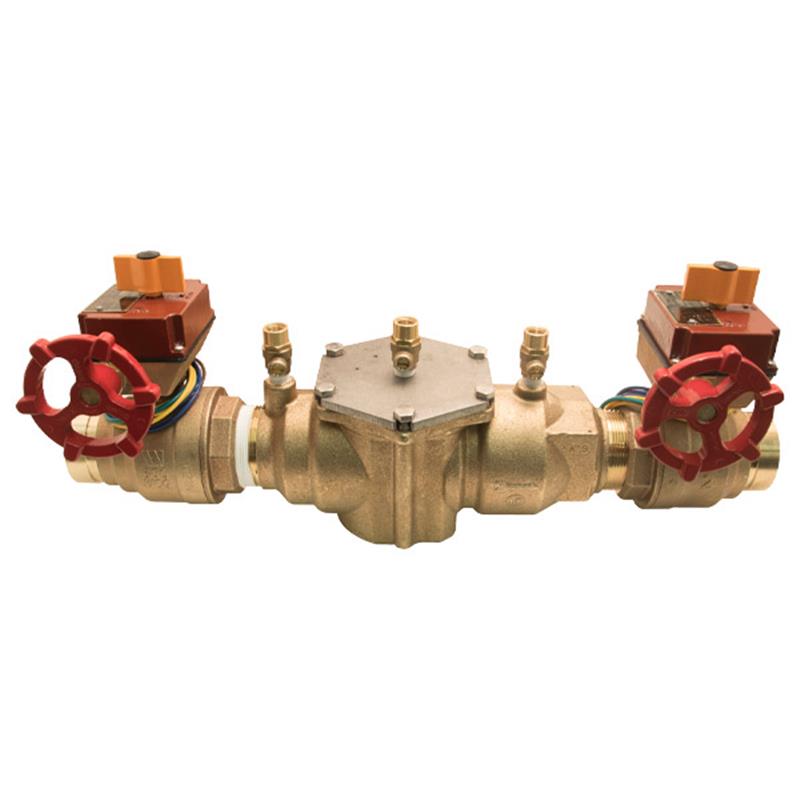

1 1/2 2000BM2-FP - GV

Item Number: 88005580
1 1
$3,739.50
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Size: 1 1/2 inch
  • Weight: 21.2 lb
  • Body Material: Bronze
  • Connection Type: Grooved Inlet/Outlet
  • Maximum Working Pressure: 175 PSI
  • Temperature Range: 33°F – 140°F
  • Gear Operated Slow Close Isolation Valves
  • One Top Entry Access Cover
  • Approved: ASSE 1015, AWWA C510, UL Classified, CSA B64.4

Description

This 1 1/2 inch Bronze Double Check Valve Assembly (DCVA) backflow preventer is designed for non-health hazard cross-connections to protect potable water supplies from contamination. Featuring a durable bronze body, it includes gear-operated slow-close isolation valves with pre-wired tamper switches and grooved inlet/outlet connections. Its compact, modular design allows for easy maintenance through a single top-entry access cover. Approved for horizontal and vertical installations, this DCVA meets ASSE 1015, AWWA C510, and CSA B64.4 standards, ensuring reliable performance up to 175 PSI and temperatures from 33°F to 140°F.

Help Me Connect

Connections

  • The grooved inlet/outlet connections are designed for use with grooved piping systems, often secured with grooved couplings and gaskets.
  • This assembly includes pre-wired tamper switches on the isolation valves, which can be integrated into alarm systems to indicate valve position.
  • Four resilient seated test cocks are provided for easy testing and maintenance, typically requiring specialized test kits.
View full details

Additional Details

This 1 1/2 inch Bronze Double Check Valve Assembly (DCVA) backflow preventer is designed to prevent the reverse flow of non-potable contaminated water into the potable water supply due to backsiphonage or backpressure.

It is ideal for protection at cross-connections identified as non-health hazard applications and to prevent contaminants from entering the service line.

Features

  • Bronze body construction
  • Gear operated slow close isolation valves
  • One top entry access cover for easy maintenance
  • Modular construction and compact design
  • Two pre-wired tamper switches per shutoff
  • Top mounted ball valve type test cocks
  • Grooved inlet/outlet connections
  • Replaceable seats and seat discs
  • Low pressure drop
  • No special tools required for maintenance

It is illegal to use this product in any plumbing system providing water for human consumption, e.g., for drinking or showering, in the United States. Before installing, contact your local water authority and building/plumbing codes.

Specifications

General

  • Product Type: Double Check Valve Assembly Backflow Preventer
  • Body Material: Bronze
  • Connection Type: Grooved Inlet/Outlet
  • Size: 1 1/2 inch
  • Maximum Working Pressure: 175 PSI (12.06 BAR)
  • Temperature Range: 33°F – 140°F (0.5°C – 60°C)
  • Installation: Horizontal and Vertical "Flow-Up" approved
  • Check Modules: Two positive seating, replaceable
  • Isolation Valves: Two resilient seated gear operated slow close
  • Test Cocks: Four resilient seated ball valve type
  • Tamper Switches: Two pre-wired, per shutoff

Certificates & Approvals

  • Approved by: Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR USC)
  • Listed: ASSE 1015
  • Classified: UL (US & Canada)
  • Compliance: AWWA Standard C510
  • Compliance: IAPMO IAP(c)
  • Compliance: CSA B64.4
  • Compliance: NFPA 13, 14, 15, 16, 20, 22 & 24
  • Compliance: ASSE/ANSI/AWWA B 501 - Grooved end Table 4 of AWWA C 606-11

FAQs

What is the primary purpose of this 1 1/2 inch Double Check Valve Assembly?

Its primary purpose is to prevent the backflow of non-potable contaminated water into the potable water supply, protecting against backsiphonage and backpressure in non-health hazard cross-connections.

What are the connection types for this backflow preventer?

This backflow preventer features grooved inlet and outlet connections, designed for secure and easy installation with grooved piping systems.

What is the maximum operating pressure and temperature range for this unit?

The unit has a maximum working pressure of 175 PSI (12.06 BAR) and operates within a temperature range of 33°F to 140°F (0.5°C to 60°C).

Does this backflow preventer include tamper switches?

Yes, it includes two pre-wired tamper switches, one per shutoff, designed to signal if the isolation valves are moved from their intended position.

Can this assembly be installed in any orientation?

Yes, this double check valve assembly is approved for both horizontal and vertical "Flow-Up" installations, providing flexibility for various plumbing configurations.
