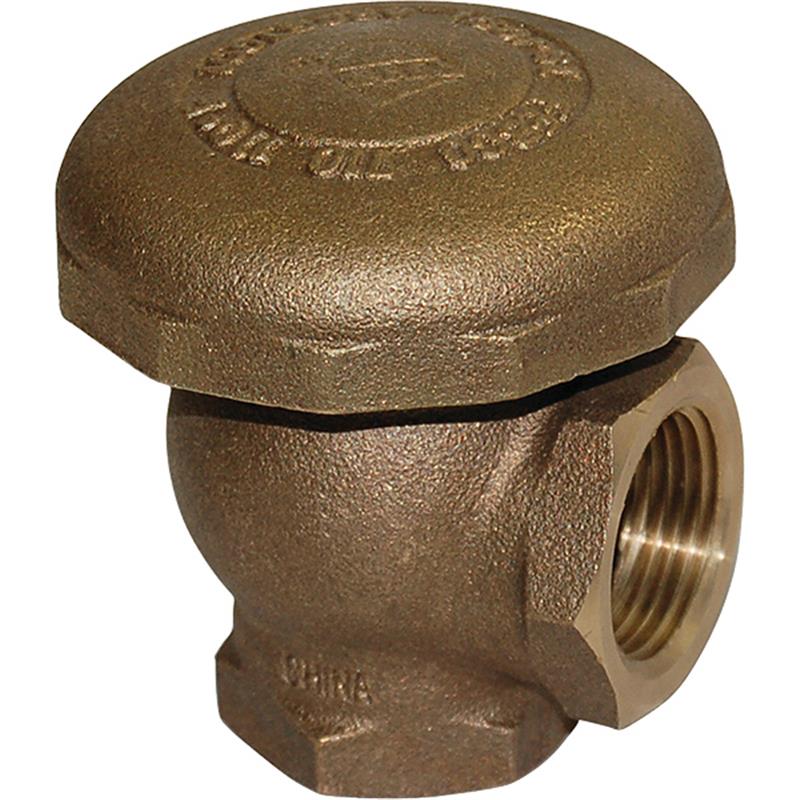

1 1/2 710A AVB

Item Number: 710G
1 1
$387.75
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • Size: 1 1/2 inch Female NPT
  • Weight: 25.1 lb
  • Body Material: Bronze
  • Maximum Working Pressure: 150 PSI
  • Temperature Range: 32°F to 110°F
  • Poppet Material: Acetal/Polypropylene
  • Protects against backsiphonage
  • Approved by ASSE 1001 and CSA B64.1.1
  • For non-continuous pressure applications

Description

The FEBCO Series 710 1 1/2 inch Atmospheric Vacuum Breaker Backflow Preventer provides critical protection against backsiphonage in non-continuous pressure systems. Constructed with a durable bronze body and lightweight plastic poppets, it ensures the main water supply remains pure by preventing contaminated water from flowing back. This unit is rated for 150 PSI maximum working pressure and water temperatures from 32°F to 110°F. It is ideal for various applications including hose bibbs, chemical vats, and irrigation systems, meeting ASSE 1001 and CSA B64.1.1 standards for reliable performance. Item number 710G.

Help Me Connect

Installation Guidelines

  • This atmospheric vacuum breaker is designed to protect a cross-connection against backsiphonage where the vacuum breaker is not subjected to back pressures.
  • It must be installed on the discharge side of the last shutoff valve.
  • Code requirements vary, but a minimum of 6 inches (150mm) above the highest overflow level is required.
  • The air inlet must be installed in a level position.

Note: Do not install any valve or shutoff device on the discharge side of this atmospheric vacuum breaker.

View full details

Additional Details

This 1 1/2 inch FEBCO Series 710 Atmospheric Vacuum Breaker Backflow Preventer provides positive protection against backsiphonage of impure water into the main supply system.

It is designed for non-continuous pressure applications where pressure loss could cause vacuum conditions, ideal for protecting water in systems like hose bibbs, chemical vats, X-ray tanks, turf irrigation systems, and laboratory sinks.

Features

  • Assures positive protection against backsiphonage
  • Bronze body construction for durability
  • Designed for cold water applications
  • Internal parts are serviceable in-line from the top of the unit
  • Lightweight plastic poppets with resilient rubber poppet discs ensure positive closure
  • Meets all specifications of ASSE
  • Simple service procedures
  • End connections are 1 1/2 inch female NPT ANSI/ASME B1.20.1

Operation

  • A poppet seals the air inlet when the unit is pressurized.
  • During a backsiphonage event, the poppet drops to allow air to enter the downstream piping.
  • The poppet simultaneously shields the water inlet, preventing foreign materials from entering the upstream piping.
  • Restoration of pressure (flow) lifts the poppet to seal the air inlet.

WARNING: It is illegal to use this product in any plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States. Before installing standard material product, consult your local water authority, building and plumbing codes.

Specifications

  • Valve Body Material: Bronze
  • Elastomers Material: Nitrile
  • Poppet Material: Acetal/Polypropylene
  • Maximum Working Pressure: 150 PSI (10.3 bar)
  • Hydrostatic Test Pressure: 150 PSI (10.3 bar)
  • Temperature Range (Series 710): 32°F to 110°F (0°C to 43°C)

Dimensions (for 1 1/2 inch)

  • A Dimension: 4 5/8 inches (118 mm)
  • B Dimension: 2 1/8 inches (54 mm)
  • C Dimension: 2 1/8 inches (54 mm)
  • D Dimension: 4 1/2 inches (114 mm)
  • Approximate Weight: 3.75 lbs (1.7 kgs)

Certificates & Approvals

  • ASSE 1001
  • CSA B64.1.1
  • UPC

FAQs

What is the primary function of the FEBCO 710G Atmospheric Vacuum Breaker?

The FEBCO 710G is designed to prevent backsiphonage of impure water into the main potable water supply, especially in situations where pressure loss could create vacuum conditions.

What are the suitable applications for this 1 1/2 inch vacuum breaker?

This atmospheric vacuum breaker is ideal for use with hose bibbs, chemical vats, X-ray tanks, turf irrigation systems, and laboratory sinks, where there are non-continuous pressure applications.

What is the maximum working pressure and temperature range for the 710G?

The 710G has a maximum working pressure of 150 PSI (10.3 bar) and can withstand water temperatures ranging from 32°F to 110°F (0°C to 43°C).

What material is the body of the FEBCO 710G made from?

The body of the FEBCO 710G Atmospheric Vacuum Breaker is constructed from durable bronze, ensuring longevity and reliable performance.

Does this vacuum breaker have any certifications or approvals?

Yes, the FEBCO 710G meets all specifications of ASSE 1001, CSA B64.1.1, and carries UPC approval, confirming its compliance with industry standards.
