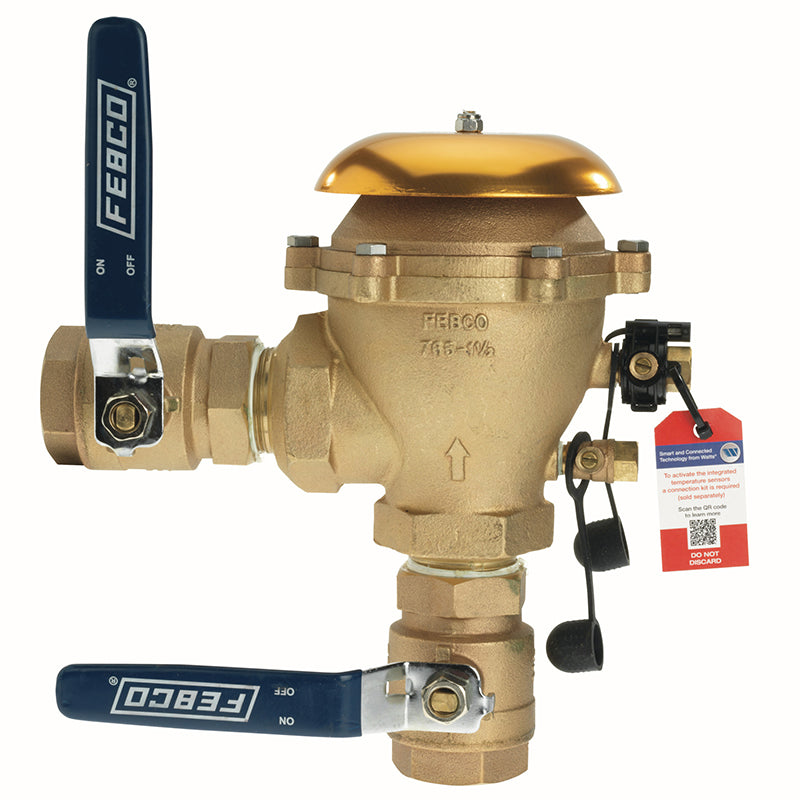

1 1/2 765-QT-FZ PVB

Item Number: T765GBV
  • 1 1/2 765-QT-FZ PVB
1 1
$1,163.24
Limited Stock (2)
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Brand - Febco
  • Size: 1 1/2 inch
  • Body Material: Bronze
  • Includes freeze sensor for temperature monitoring
  • Maximum Working Pressure: 150 psi
  • Temperature Range: 32°F to 140°F
  • End Connections: NPT ANSI/ASME B1.20.1
  • Plastic bonnet protects against freeze damage
  • Internal parts serviceable in-line

Description

The FEBCO Series 765 Pressure Vacuum Breaker Backflow Preventer, 1 1/2 inch, protects against health hazard backsiphonage in industrial, irrigation, and other systems. Constructed with a durable bronze body and NPT end connections, it features a spring-loaded check valve and an air relief valve. An integrated freeze sensor utilizes SentryPlus Alert® technology to warn of freezing temperatures, helping prevent damage. The unit also includes resilient seated shutoffs and test cocks, with internal parts serviceable from the top. It is rated for a maximum working pressure of 150 psi and temperatures from 32°F to 140°F. Item number T765GBV.

Help Me Connect

Installation Requirements

  • The assembly must be installed a minimum of 12 inches (12") above the highest downstream outlet and the highest point in the downstream piping.
  • End connections are NPT ANSI/ASME B1.20.1, designed for standard National Pipe Taper threads.
  • Assemblies must be installed in locations that are easily accessible for maintenance, periodic testing, and where discharge is not objectionable.
  • If the assembly is subject to freezing temperatures, additional freeze protection procedures must be followed. The freeze sensor requires an add-on connection kit (sold separately) for activation and communication with monitoring systems.

Operation

The Series 765 consists of a spring-loaded check valve that closes tightly when pressure drops below 1 psi or when flow ceases, and an air relief valve that opens to break a siphon when pressure drops to 1 psi.

View full details

Additional Details

This 1 1/2 inch FEBCO Series 765 Pressure Vacuum Breaker Backflow Preventer is designed to protect against health hazard and non-health hazard backsiphonage of toxic or non-toxic liquids in industrial plants, cooling towers, laboratories, laundries, swimming pools, and irrigation systems.

It features a bronze body for durability and includes a freeze sensor for use with SentryPlus Alert® technology to signal facility personnel when temperature nears and reaches the freezing point.

Features

  • Bronze body construction for long-term durability
  • Integrated freeze sensor monitors temperature and alerts facility personnel of potential freeze conditions
  • Engineered plastic bonnet protects valve bodies from freeze damage
  • Internal parts are serviceable in line from the top of the unit for simple maintenance
  • Designed for minimum head loss
  • Includes two resilient seated shutoffs and test cocks, integral to the assembly
  • Features a spring-loaded check valve and an air relief valve with opening port

WARNING: It is illegal to use this product in any plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States. Before installing, consult your local water authority, building, and plumbing codes.

WARNING: The freeze sensor provides alerts about a possible freeze event but does not prevent it. User action is required to prevent freeze conditions from causing product and/or property damage.

Specifications

  • Size: 1 1/2 inch
  • Body Material: Bronze
  • Elastomers: Nitrile
  • Maximum Working Pressure: 150 psi (10.3 bar)
  • Hydrostatic Test Pressure: 300 psi (20.7 bar)
  • Temperature Range: 32°F to 140°F (0°C to 60°C)
  • End Connections: NPT ANSI/ASME B1.20.1

Components

  • Shutoffs: Quarter-Turn Ball Valves
  • Sensor: Integrated Freeze Sensor

Certificates & Approvals

  • Approved by Foundation for Cross-Connection Control and Hydraulic Research at USC
  • ASSE 1020
  • B64.1.2

FAQs

What is the primary use of the FEBCO Series 765 PVB?

This backflow preventer is primarily used to protect against health hazard and non-health hazard backsiphonage of toxic or non-toxic liquids in industrial plants, cooling towers, laboratories, laundries, swimming pools, and irrigation systems.

Does this product prevent freezing?

No, the integrated freeze sensor only provides alerts about potential freeze events. User action is required to prevent freeze conditions from causing product or property damage. The plastic bonnet helps protect the valve body from freeze damage.

What are the key materials used in this backflow preventer?

The main valve body is constructed of durable bronze, and the elastomers are made of Nitrile. The bonnet assembly is made of engineered plastic for freeze protection.

What is the maximum operating pressure and temperature range?

The unit is rated for a maximum working pressure of 150 psi (10.3 bar) and can operate within a temperature range of 32°F to 140°F (0°C to 60°C).

What type of connections does this backflow preventer have?

The FEBCO Series 765 PVB features NPT ANSI/ASME B1.20.1 end connections, designed for standard pipe threading.
