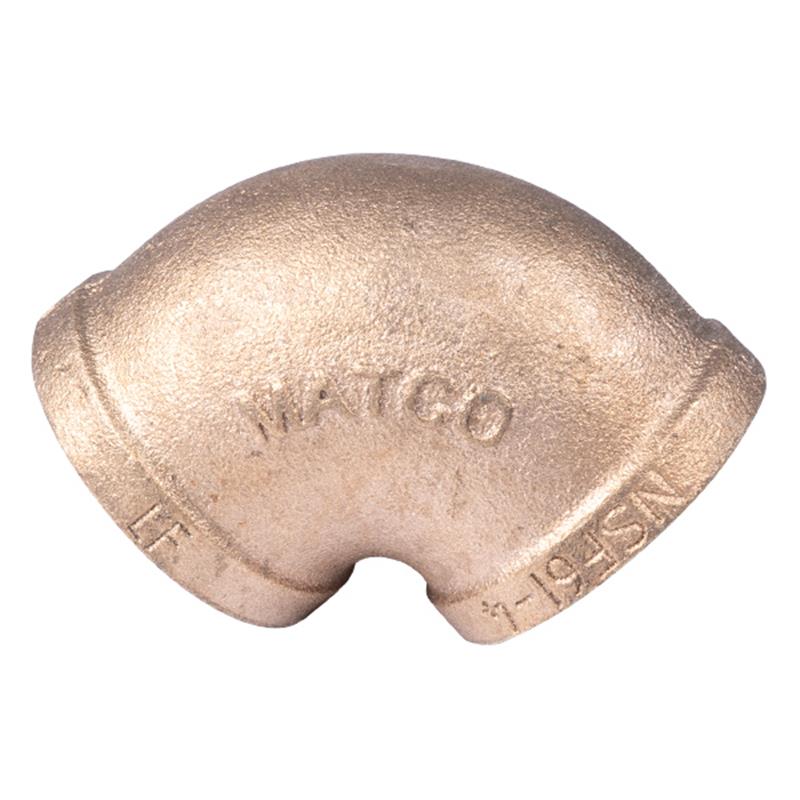

1 1/2" Lead Free 90 Degree Brass Elbow
Item Number: 15390
1
/
of
1
Regular price
$31.13
In Stock
(10)
Estimated transit time: 2 to 5 Business Days
Eligible for Express Shipping
Brand - Matco-Norca
Couldn't load pickup availability
- Nominal Pipe Size: 1 1/2 inch
- Weight: 1.26 lb
- Fitting Type: 90 Degree Elbow
- Material: Lead-Free Brass (C89833)
- Thread Type: Female NPT
- Pressure Class: 125 lbs.
- Certified: NSF 61, NSF 372
- Resists corrosion and dezincification
- Overall Dimension (A): 1.84 inches
Description
Description
The 1 1/2 inch Lead Free 90 Degree Brass Elbow provides a reliable solution for changing flow direction in plumbing systems. Constructed from ASTM B584, Alloy C89833 lead-free brass, it meets NSF 61 and NSF 372 standards, ensuring safe use with potable water. This Class 125 lbs. fitting features ASME B1.20.1 NPT threads for secure connections and adheres to ASME B16.15 and B16.18 dimensional specifications. Ideal for various residential, commercial, and industrial applications requiring a durable, compliant 90-degree bend.
Help Me Connect
Help Me Connect
Connecting a 1 1/2" Lead Free 90 Degree Brass Elbow
- This elbow is designed with 1 1/2 inch female NPT threads on both ends.
- It connects directly to 1 1/2 inch male NPT threaded pipes or fittings, providing a secure, leak-tight 90-degree change in direction.
- Ensure proper sealing with PTFE tape or pipe compound suitable for brass fittings and the intended fluid.

Collapsible content
Additional Details
This is a 1 1/2 inch Lead Free 90 Degree Brass Elbow, designed for changing the direction of piping in plumbing and industrial applications by 90 degrees. It features two female NPT threaded connections for secure installation.
Construction & Design
- Made from durable lead-free brass (ASTM B584, Alloy C89833) ensuring potable water safety.
- Designed to meet ASME B16.15 and B16.18 dimensional standards for reliable fit and performance.
- Features ASME B1.20.1 NPT threads for compatible pipe connections.
- Rated for Class 125 lbs. service, suitable for various pressure applications.
Certifications
- Approved for use in potable water applications, complying with NSF 61 and NSF 372 lead-free standards.
Specifications
- Product Type: 90 Degree Elbow
- Nominal Pipe Size: 1 1/2 inch
- Angle: 90 Degree
- Material: Lead-Free Brass
- Material Alloy: ASTM B584, Alloy C89833
- Thread Standard: ASME B1.20.1
- Dimensional Standards: ASME B16.15, B16.18
- Pressure Class: 125 lbs.
- Overall Dimension (A): 1.84 inches
Certificates & Approvals
- NSF 61 Certified
- NSF 372 Certified
FAQs
What material is this 90-degree elbow made from?
This 90-degree elbow is manufactured from lead-free brass, specifically conforming to ASTM B584, Alloy C89833 standards. This material ensures durability and safety for potable water applications.
What is the pressure class rating of this fitting?
This brass elbow is rated for Class 125 lbs. service. This rating indicates its suitability for general plumbing and industrial pressure applications.
Is this elbow safe for use with potable (drinking) water?
Yes, this 1 1/2 inch lead-free brass elbow is certified to NSF 61 and NSF 372 standards, making it safe and compliant for use in potable water systems.
What type of threads does this elbow have?
The elbow features female NPT (National Pipe Taper) threads that conform to ASME B1.20.1 standards. This ensures compatibility with standard male NPT threaded pipes and fittings.
What are the overall dimensions of the 1 1/2 inch elbow?
For the 1 1/2 inch size, the overall dimension 'A' (center-to-end) is 1.84 inches, as per the product specification sheet for the Lead Free Brass Elbow 90.
