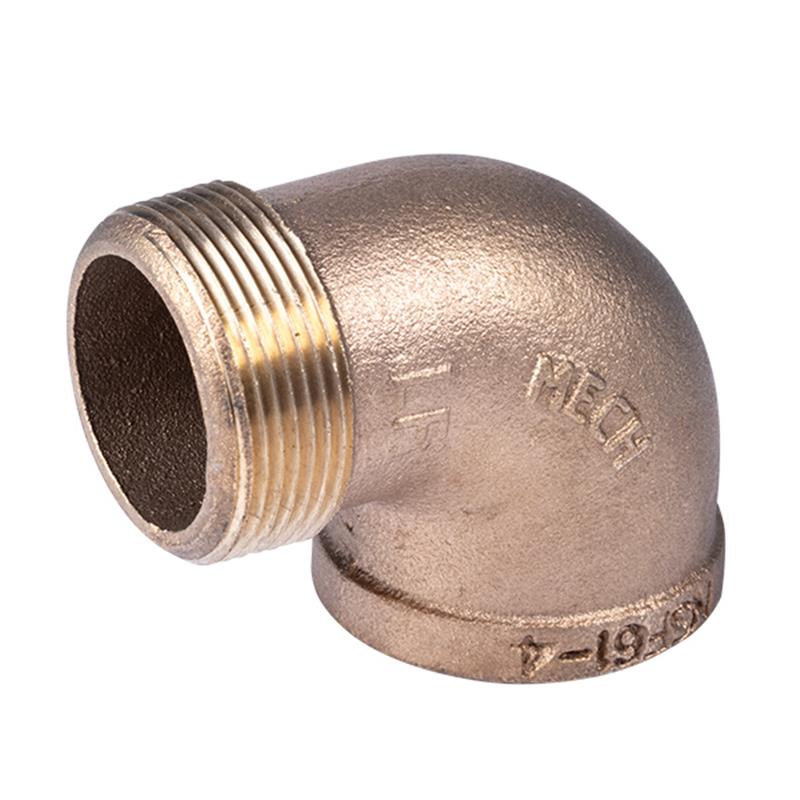

1 1/2" Lead Free 90 Degree Brass Street Elbow

Item Number: 15523
Skip to product information
1 of 1
Regular price $43.66
Limited Stock (6)
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Brand - Matco-Norca

  • Product Type: Street Elbow
  • Weight: 1.23 lb
  • Nominal Size: 1 1/2 inch
  • Fitting Angle: 90 Degree
  • Material: Lead Free Brass (ASTM B584, Alloy C89833)
  • Thread Standard: ASME B1.20.1
  • Pressure Class: 125 lbs.
  • Approved: NSF 61, NSF 372
  • Dimension A: 1.84 inches

Description

This 1 1/2 inch Lead Free 90 Degree Brass Street Elbow is designed for changing the direction of piping systems. Manufactured from ASTM B584, Alloy C89833 lead-free brass, it is suitable for potable water applications and meets NSF 61 and NSF 372 approvals. The street elbow configuration features one 1 1/2 inch male NPT thread and one 1 1/2 inch female NPT thread, conforming to ASME B1.20.1 thread standards for reliable connections. Rated as Class 125 lbs., this fitting ensures durability and compliance with relevant dimension standards ASME B16.15 and B16.18, making it a dependable choice for various plumbing installations.

Help Me Connect

Connecting a Street Elbow

  • A street elbow features a male thread on one end and a female thread on the other end, both of the same nominal pipe size (NPS).
  • The male NPT thread on this 1 1/2 inch elbow connects into a corresponding 1 1/2 inch female NPT fitting or pipe connection.
  • The female NPT thread on this elbow accepts a 1 1/2 inch male NPT pipe or fitting.
  • This design allows for direct connection between a male pipe and a female fitting without needing an additional nipple.
View full details

Collapsible content

Additional Details

This is a 1 1/2 inch Lead Free 90 Degree Brass Street Elbow designed for modifying pipe direction in plumbing systems. It features a male threaded end on one side and a female threaded end on the other, allowing for a versatile connection between different pipe types.

Features

  • Constructed from lead-free brass (ASTM B584, Alloy C89833) for safe potable water applications.
  • 90-degree angle for a sharp change in pipeline direction.
  • Designed as a street elbow, featuring one male NPT thread and one female NPT thread.
  • Rated as Class 125 lbs. for standard pressure applications.

Connections

  • The male threaded end connects into a 1 1/2 inch female NPT fitting.
  • The female threaded end accepts a 1 1/2 inch male NPT pipe or fitting.

Specifications

  • Product Type: Street Elbow
  • Nominal Size: 1 1/2 inch
  • Fitting Angle: 90 Degree
  • Material: ASTM B584, Alloy C89833
  • Thread Standard: ASME B1.20.1
  • Dimension Standard: ASME B16.15, B16.18
  • Pressure Class: 125 lbs.
  • Dimension A: 1.84 inches
  • Dimension B: 2.46 inches

Certificates & Approvals

  • NSF 61
  • NSF 372

FAQs

What is the material of this street elbow?

This street elbow is made from lead-free brass, specifically ASTM B584, Alloy C89833. This material ensures it is safe for potable water applications.

What type of threads does this fitting use?

The threads on this fitting conform to ASME B1.20.1 standard, which are National Pipe Taper (NPT) threads. It has one male NPT thread and one female NPT thread.

What is the nominal size of this street elbow?

This is a 1 1/2 inch street elbow, meaning both the male and female connections are designed for 1 1/2 inch nominal pipe size.

What does "Class 125 lbs." mean for this fitting?

"Class 125 lbs." refers to the pressure rating class of the fitting, indicating its suitability for general service applications at specified temperatures and pressures.

Are there any certifications for this lead-free brass fitting?

Yes, this fitting is approved to NSF 61 and NSF 372 standards, certifying its safety for use in drinking water systems and its lead-free compliance.
