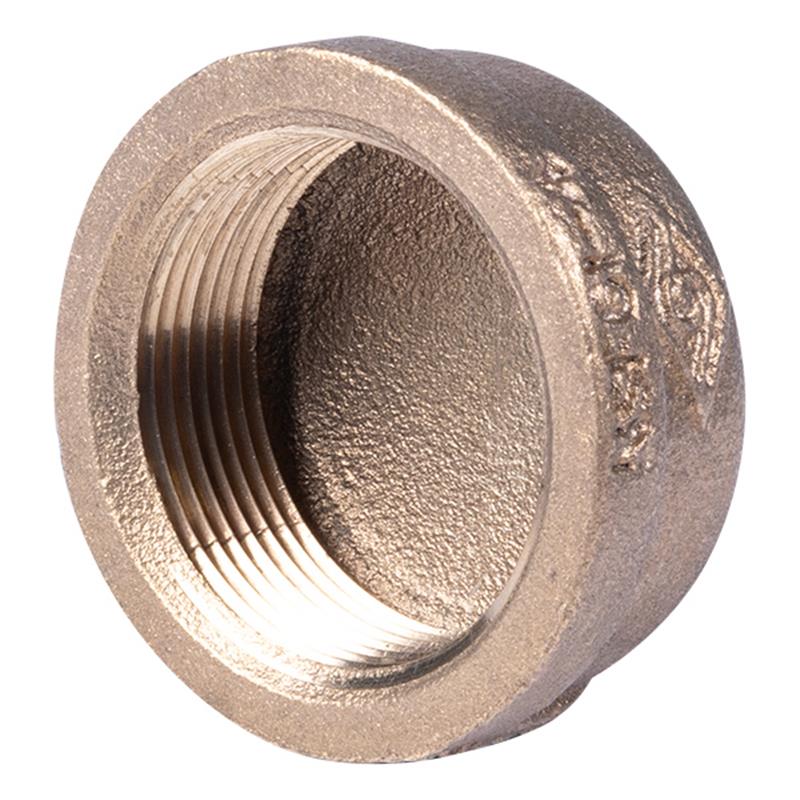

1 1/2" Lead Free Brass Cap
Item Number: 15316
1
/
of
1
Regular price
$21.10
In Stock
(10)
Estimated transit time: 2 to 5 Business Days
Eligible for Express Shipping
Brand - Matco-Norca
Couldn't load pickup availability
- Nominal Size: 1 1/2 inch
- Weight: 0.68 lb
- Material: Lead Free Brass (Alloy C89833)
- Class Rating: 125 lbs.
- Thread Standard: ASME B1.20.1
- Approved: NSF 61
- Approved: NSF 372
- Designed for pipe end sealing
Description
Description
The 1 1/2 inch Lead Free Brass Cap offers a reliable and secure solution for sealing off the end of 1 1/2 inch male threaded pipes or fittings. Crafted from durable ASTM B584, Alloy C89833 lead-free brass, this cap meets Class 125 lbs. standards for general purpose applications. Its threads comply with ASME B1.20.1, ensuring broad compatibility with standard pipe threads. With NSF 61 and NSF 372 approvals, it is certified lead-free and suitable for potable water systems. This robust cap provides a durable closure for various plumbing and industrial uses. Item number 15316.
Help Me Connect
Help Me Connect
Connecting a Brass Cap
This 1 1/2 inch lead free brass cap features internal ASME B1.20.1 NPT threads, designed to connect directly to 1 1/2 inch male NPT threaded pipes or fittings. It provides a secure and leak-tight seal for permanent or temporary closure of a pipeline or system. Ensure proper thread sealant is used for optimal performance.

Collapsible content
Additional Details
This 1 1/2 inch Lead Free Brass Cap is designed to reliably seal off the end of a male threaded pipe or fitting, providing a secure and leak-tight closure for various plumbing and industrial applications.
Material and Construction
- Constructed from high-quality Lead Free Brass, specifically ASTM B584, Alloy C89833.
- Designed to meet Class 125 lbs. pressure rating standards.
Connections and Dimensions
- Features internal threads conforming to ASME B1.20.1 for standard pipe compatibility.
- Dimensions comply with ASME B16.15 and B16.18 for consistent fitting.
Certifications
- NSF 61 approved for drinking water system components.
- NSF 372 certified for lead-free compliance.
Specifications
- Product Type: Cap
- Nominal Size: 1 1/2 inch
- Material: Lead Free Brass (ASTM B584, Alloy C89833)
- Class Rating: 125 lbs.
- Thread Standard: ASME B1.20.1
- Dimensions Standard: ASME B16.15, B16.18
- Overall Length (A): 1.15 inches
Certificates & Approvals
- NSF 61
- NSF 372
FAQs
What material is this cap made from?
This cap is constructed from Lead Free Brass, specifically identified as ASTM B584, Alloy C89833. This material ensures its suitability for various applications, including those requiring lead-free components.
What is the thread standard for this cap?
The cap features internal threads that conform to the ASME B1.20.1 standard. This ensures compatibility with common National Pipe Taper (NPT) male threads.
Is this cap safe for potable water applications?
Yes, this cap is approved by NSF 61 and NSF 372, which certifies it as lead-free and safe for use in drinking water system components.
What is the class rating of this brass cap?
This 1 1/2 inch brass cap is rated for Class 125 lbs. applications, indicating its pressure capabilities for general purpose use.
What size pipe does this cap fit?
This cap is specifically designed to fit and seal 1 1/2 inch male threaded pipes or fittings, providing a secure closure.
