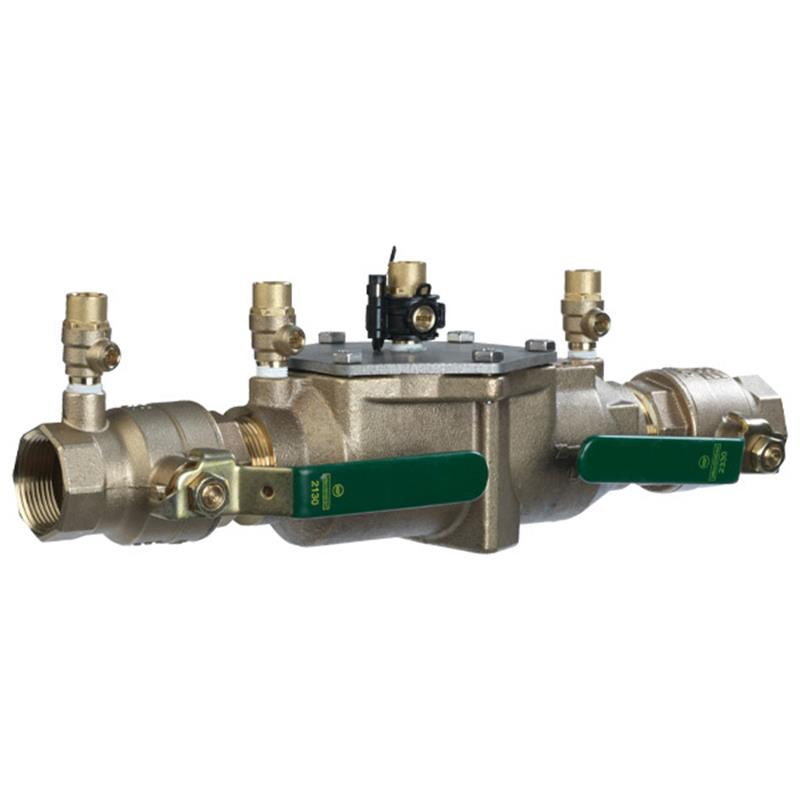

1 1/2 LF007M2-QT-FZ

Item Number: T063234
1 1
$1,452.61
In Stock (10)
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Brand - Watts
  • Nominal Size: 1 1/2 inch
  • Body Material: Lead Free* cast copper silicon alloy
  • Integrated freeze sensor for SentryPlus Alert® technology
  • Modular, compact design for easy maintenance
  • Replaceable seats and seat discs
  • ArmorTek coating resists corrosion
  • Maximum Working Pressure: 175 psi
  • Quarter turn ball valve shutoffs

Description

This 1 1/2 inch Lead Free double check valve backflow preventer assembly protects potable water supplies by preventing polluted water backflow from backsiphonage or backpressure. Ideal for non-health hazard cross-connections, it features Lead Free cast copper silicon alloy construction and an integrated freeze sensor compatible with SentryPlus Alert® technology. The modular design, replaceable internal components, and ArmorTek corrosion-resistant coating ensure easy maintenance and long-term reliability. With quarter turn shutoffs, NPT, and union connections, this assembly offers versatile installation and a maximum working pressure of 175 psi, meeting ASSE 1015 standards.

Help Me Connect

Connections

  • This backflow preventer assembly features NPT end connections for easy installation into your piping system.
  • Union connections are also provided, indicated by the 'U' prefix in the model number, facilitating versatile installation.

Freeze Sensor Activation

To activate the integrated freeze sensor for monitoring and alerts, an add-on connection kit is required and sold separately. This kit enables communication with Wi-Fi networks, building management systems (BMS), and irrigation management systems (IMS).

View full details

Additional Details

This 1 1/2 inch Lead Free double check valve backflow preventer assembly prevents the backflow of polluted water into the potable water supply from backsiphonage or backpressure. It is suitable for continuous pressure piping applications and non-health hazard cross-connections, meeting national plumbing codes and water authority requirements.

WARNING: The freeze sensor provides alerts about a possible freeze event but cannot prevent it. User action is required to prevent freeze conditions from causing product and/or property damage.

Features

  • Includes a freeze sensor for use with SentryPlus Alert® technology to signal facility personnel about low and freezing temperatures.
  • An add-on connection kit (sold separately) is required to activate the freeze sensor; without it, the sensor is a passive component with no communication.
  • Lead Free* cast copper silicon alloy body construction.
  • Modular, compact design for easy maintenance and assembly by retaining the spring load.
  • Replaceable seats and seat discs accessible through a single, top-entry cover for simplified servicing.
  • ArmorTek coating technology applied to internal and external surfaces to resist microbial-induced corrosion (MIC).
  • Equipped with quarter turn ball valve shutoffs and top-mounted Lead Free* test cocks.
  • Designed with two in-line independent positive seating check modules and captured springs.

Specifications

  • Product Type: Double Check Valve Assembly
  • SKU: T063234
  • Nominal Size: 1 1/2 inch
  • Body Material: Lead Free* cast copper silicon alloy
  • Coating: ArmorTek powder coating (internal and external surfaces)
  • Check Module Components: Captured spring, rubber seat disc
  • Access Cover Bolts Material: Stainless steel
  • Connection Type: NPT end connections, Union connections
  • Shutoffs: Quarter turn ball valve
  • Freeze Sensor: Integrated for SentryPlus Alert® technology

Performance

  • Temperature Range: 33°F – 180°F (0.5°C – 82°C)
  • Maximum Working Pressure: 175 psi (12.1 bar)

Certificates & Approvals

  • ASSE Standard 1015
  • AWWA Standard C510
  • IAPMO PS31
  • CSA B64.5
  • UL Classified (without shutoff valves only for 3/4" to 2")
  • Approved by the Foundation for Cross-Connection Control and Hydraulic Research at the University of Southern California
  • Horizontal and vertical "flow up" installation approval on all sizes

FAQs

What is the primary function of the Watts LF007M2-QT-FZ backflow preventer?

This assembly is designed to prevent the backflow of polluted water from entering the potable water supply, protecting against both backsiphonage and backpressure in accordance with national plumbing codes.

What does the 'Lead Free' construction imply for this product?

The 'Lead Free' designation means the product's wetted surface contains less than 0.25% lead by weight. This complies with Lead Free installation requirements and ensures the safety of the potable water supply.

How does the integrated freeze sensor operate?

The integrated freeze sensor uses SentryPlus Alert® technology to provide alerts about possible freeze events. An add-on connection kit, sold separately, is required to activate the sensor's monitoring system for communication with Wi-Fi, BMS, or IMS.

Is this backflow preventer easy to service or repair?

Yes, its modular, compact design features a single top-entry cover, making it easy to access and replace internal components like seats and discs for in-line repairs without requiring special tools.

What are the connection types and shutoff features of this assembly?

This assembly is equipped with NPT end connections and union connections for versatile installation. It also includes quarter turn ball valve shutoffs for effective isolation.
