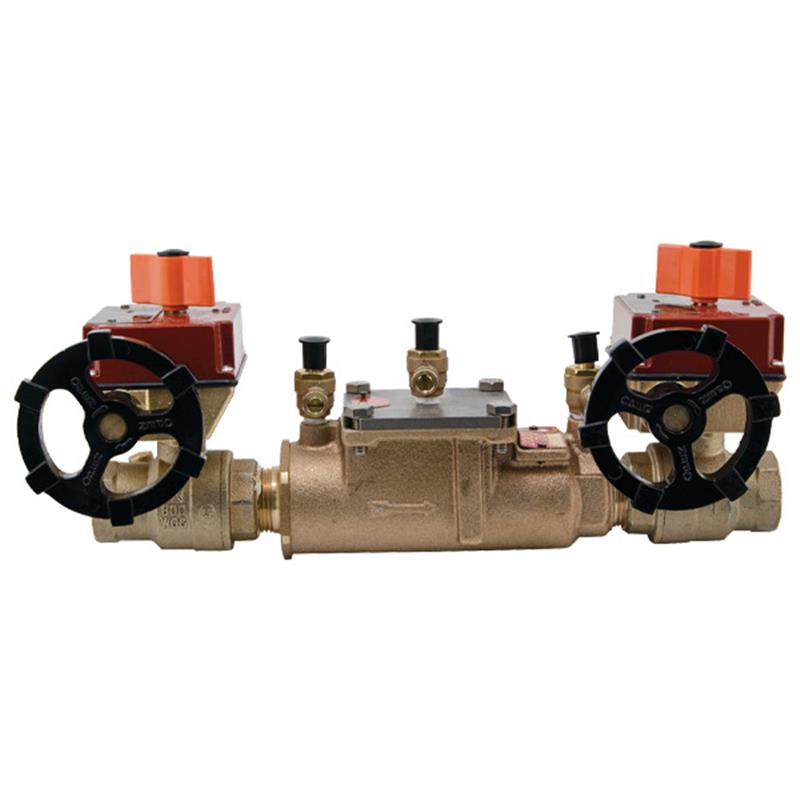

1 1/2 LF2000BM2-FP

Item Number: 88007256
1 1
$3,723.01
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Assembly Size: 1 1/2 inch
  • Weight: 18.5 lb
  • Body Material: Lead Free Cast Copper Silicon Alloy
  • End Connections: Female NPT
  • Maximum Working Pressure: 175 PSI
  • Temperature Range: 33°F - 180°F
  • Features Gear-Operated Slow Close Isolation Valves
  • Easy Maintenance: Single Top Entry Cover
  • Approvals: ASSE 1015, AWWA C510, UL Classified

Description

This 1 1/2 inch Lead Free Bronze Double Check Valve Backflow Preventer Assembly (LF2000BM2-FP) prevents polluted water from entering potable water supplies. It features a durable lead-free bronze body, gear-operated slow close isolation valves, and two pre-wired tamper switches. Designed for easy maintenance with a single top-entry cover, it is approved for both horizontal and vertical installations. This assembly has a maximum working pressure of 175 PSI and operates in temperatures from 33°F to 180°F. It meets ASSE 1015 and AWWA C510 standards. Item number 88007256.

Help Me Connect

Connections and Compatibility

This 1 1/2 inch double check valve backflow preventer assembly features Female NPT inlet and outlet connections, designed for direct threading into a system with male NPT threads. It is approved for both horizontal and vertical "Flow-Up" installations to prevent backflow in non-health hazard cross-connection applications.

View full details

Additional Details

The 1 1/2 inch Lead Free Bronze Double Check Valve Backflow Preventer Assembly prevents the reverse flow of polluted water from non-potable sources into the potable water supply, making it ideal for non-health hazard cross-connections.

Key Features

  • Lead Free cast copper silicon alloy body construction.
  • Designed for easy maintenance with only one top entry access cover.
  • Features gear-operated slow close isolation valves and two pre-wired tamper switches.
  • Modular construction and compact design for versatile installation.
  • Equipped with top mounted ball valve type test cocks.
  • Offers a low pressure drop and requires no special tools for service.
  • Replaceable seats and seat discs ensure long-term performance.

Specifications

  • Body Material: Lead Free Cast Copper Silicon Alloy
  • Assembly Size: 1 1/2 inch
  • End Connections: Female NPT Inlet/Outlet
  • Maximum Working Pressure: 175 PSI (12.1 bar)
  • Temperature Range: 33°F - 180°F (0.5°C - 82°C)
  • Design: Double Check Valve Assembly with two positive seating check modules
  • Isolation Valves: Two resilient seated gear operated slow close isolation valves
  • Test Cocks: Four resilient seated test cocks
  • Access: Single top entry cover
  • Tamper Switches: Two pre-wired per shutoff

Certificates & Approvals

  • Approved by the Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR-USC)
  • Horizontal and Vertical "Flow-Up" approved on all sizes
  • ASSE 1015 Listed
  • UL Classified (US & Canada)
  • IAPMO/CUPC
  • AWWA Standard C510 Compliant
  • CSA B64.5
  • NFPA 13, 14, 15, 16, 20, 22 & 24 Compliant
  • End Connections Gear-Operated Ball Valves - National Pipe Thread Taper ANSI/ASME B1.20.1

FAQs

What is the primary purpose of this backflow preventer assembly?

This assembly is designed to prevent the reverse flow of non-potable, polluted water from entering the potable water supply, especially in non-health hazard cross-connection applications.

What type of connections does this 1 1/2 inch model have?

This model features 1 1/2 inch Female NPT (National Pipe Thread Taper) inlet and outlet end connections for secure threading into your piping system.

What materials are used in the construction of this backflow preventer?

The assembly is constructed with a Lead Free cast copper silicon alloy body, ensuring durability and compliance with reduced lead content standards.

What are the maximum operating pressure and temperature limits for this device?

It can operate at a maximum working pressure of 175 PSI (12.1 bar) and handle water temperatures ranging from 33°F to 180°F (0.5°C to 82°C).

Is this backflow preventer approved for both horizontal and vertical installations?

Yes, this assembly is approved for both horizontal and vertical "Flow-Up" installations, offering flexibility for various piping configurations.
