1 1/2 LF2000BM2-FP - GV

Item Number: 88007257
1 1
$3,907.49
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Size: 1 1/2 inch
  • Weight: 18.7 lb
  • Body Material: Lead Free Cast Copper Silicon Alloy
  • End Connections: Grooved
  • Maximum Working Pressure: 175 PSI
  • Temperature Range: 33°F - 140°F
  • Features: Gear Operated Slow Close Isolation Valves
  • Maintenance: Single Top Entry Access Cover
  • Approvals: ASSE 1015, AWWA C510

Description

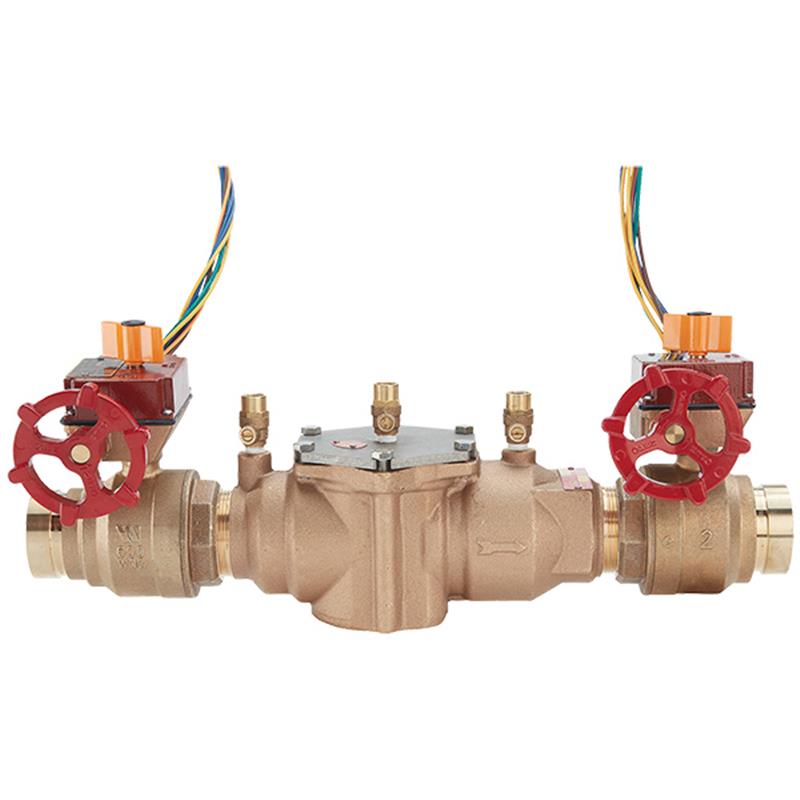

This 1 1/2 inch Lead Free Bronze Double Check Valve Backflow Preventer Assembly with grooved ends is designed to prevent polluted water from entering the potable water supply. It is suitable for non-health hazard cross-connections and features a durable lead-free cast copper silicon alloy body, gear-operated slow-close isolation valves with tamper switches, and easy-maintenance top entry access. The assembly is approved for horizontal and vertical installations, meeting ASSE 1015 and AWWA C510 standards, and has a maximum working pressure of 175 PSI. Item number 88007257.

Help Me Connect

Connections and Compatibility

This 1 1/2 inch double check valve backflow preventer features grooved end connections, making it compatible with similarly sized grooved piping systems. It is designed to be installed at cross-connections where polluted water could otherwise enter the potable supply. Approved for both horizontal and vertical flow-up installations, it offers flexible integration into various plumbing configurations.

View full details

Additional Details

This 1 1/2 inch Lead Free Bronze Double Check Valve Backflow Preventer Assembly prevents the reverse flow of contaminated water of non-potable quality from being pumped or siphoned into the potable water supply due to backsiphonage or backpressure.

It is specifically designed for protection at cross-connections identified as non-health hazard applications and from other contaminants found at the service line entrance.

Features

  • Lead Free bronze body construction
  • Gear operated slow close isolation valves with pre-wired tamper switches
  • One top entry access cover for easy maintenance
  • Top mounted ball valve type test cocks
  • No special tools required for service
  • Compact modular design for versatility
  • Low pressure drop for efficient flow
  • Replaceable seats and seat discs
  • Approved for horizontal and vertical installations

Connections

  • Grooved end connections for easy installation
  • Compatible with 1 1/2 inch grooved piping systems

Check with local authority having jurisdiction regarding vertical orientation, frequency of testing, or other installation requirements.

Specifications

  • Product Type: Double Check Valve Backflow Preventer
  • Nominal Size: 1 1/2 inch
  • Body Material: Lead Free Cast Copper Silicon Alloy (Bronze)
  • End Connections: Grooved
  • Isolation Valve Type: Gear Operated Slow Close
  • Check Modules: Two Positive Seating
  • Test Cocks: Four Resilient Seated Ball Valve Type
  • Tamper Switches: Two Pre-wired
  • Maximum Working Pressure: 175 PSI (12.1 bar)
  • Temperature Range: 33°F - 140°F (0.5°C - 60°C)
  • Maintenance: Single Top Entry Access Cover
  • Design: Modular, Compact, Low Pressure Drop

Certificates & Approvals

  • ASSE 1015 Listed
  • AWWA Standard C510 Compliant
  • UL Classified (US & Canada)
  • IAPMO/CUPC
  • CSA B64.5
  • NFPA 13, 14, 15, 16, 20, 22 & 24 Compliant
  • Approved by Foundation for Cross-Connection Control and Hydraulic Research at the University of Southern California (FCCCHR-USC)
  • Horizontal and Vertical "Flow-Up" approved on all sizes

FAQs

What is the primary purpose of this backflow preventer assembly?

This assembly is designed to prevent the reverse flow of contaminated non-potable water into the potable water supply, protecting against backsiphonage and backpressure in non-health hazard applications.

What type of end connections does this specific model (LF2000BM2-FP - GV) use?

This model features 1 1/2 inch grooved end connections, designed for compatibility with grooved piping systems.

Is this backflow preventer approved for both horizontal and vertical installations?

Yes, this assembly is approved for both horizontal and vertical "Flow-Up" installations, providing flexibility for various plumbing configurations.

What is the maximum operating pressure and temperature range for this device?

The maximum working pressure is 175 PSI (12.1 bar), and the temperature range is 33°F to 140°F (0.5°C to 60°C).

What materials are used for the body of the backflow preventer?

The body is constructed from Lead Free cast copper silicon alloy, commonly known as bronze, ensuring durability and compliance with lead-free standards.
