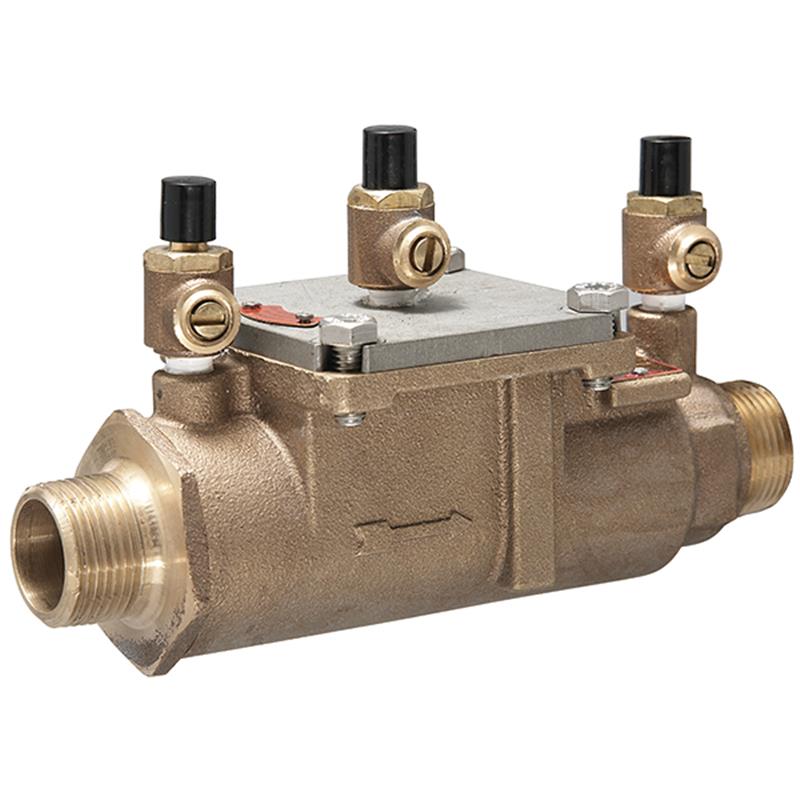

1 1/2 LF2000BM2-LBV

Item Number: 0425008
1 1
$1,163.25
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • 1 1/2 inch Lead Free* construction
  • Weight: 17.5 lb
  • Maximum Working Pressure: 175 psi
  • Temperature Range: 33°F - 140°F
  • Easy maintenance with single top access cover
  • Replaceable check seats and discs
  • Top mounted test cocks
  • NPT end connections
  • Approved to ASSE Std. 1015 and AWWA Std. C510

Description

The Ames Series LF2000B 1 1/2 inch lead free double check valve backflow preventer assembly, SKU 0425008, is designed to protect potable water supplies from pollution due to backflow. Constructed from durable lead free cast silicon copper alloy with NPT end connections, it is rated for 175 psi maximum working pressure and a temperature range of 33°F-140°F. Key features include a single top access cover for simplified maintenance, replaceable check seats and discs, and top mounted test cocks. This compact, modular unit complies with ASSE Std. 1015 and AWWA Std. C510, making it suitable for non-health hazard cross-connections.

Help Me Connect

Connections and Compatibility

This 1 1/2 inch lead free double check valve backflow preventer assembly has NPT end connections designed for compatibility with standard NPT threaded piping systems. It is intended for installation at cross-connections identified as non-health hazards, preventing backflow of polluted water into the potable supply. The assembly is suitable for use in continuous pressure piping applications.

View full details

Additional Details

This 1 1/2 inch lead free double check valve backflow preventer assembly is designed to prevent the backflow of polluted water from entering the potable water supply due to backsiphonage or backpressure. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as non-health hazards.

Features

  • Lead Free* construction for compliant installations
  • Ease of maintenance with only one top entry access cover
  • Replaceable seats and seat discs for extended product life
  • Modular and compact design for versatile installation
  • Top mounted test cocks for easy testing
  • Low pressure drop design
  • No special tools required for service

Construction

  • Body constructed from Lead Free* cast silicon copper alloy
  • Features two in-line independent positive seating check modules
  • Includes captured springs and replaceable check discs and seats
  • Single access cover secured with stainless steel bolts
  • Equipped with NPT end connections

Specifications

  • Product Size: 1 1/2 inch
  • Body Material: Lead Free* Cast Silicon Copper Alloy
  • Connection Type: NPT (National Pipe Thread)
  • Maximum Working Pressure: 175 psi (12.06 bar)
  • Temperature Range: 33°F - 140°F (0.5°C - 60°C)
  • Check Modules: Two independent positive seating
  • Access Cover: Single, top entry
  • Test Cocks: Top mounted
  • Lead Content: Wetted surface contains less than 0.25% lead by weight

Certificates & Approvals

  • ASSE Std. 1015
  • AWWA Std. C510
  • IAPMO PS31
  • Approved by Foundation for Cross-Connection Control and Hydraulic Research at the University of Southern California
  • UPC
  • cUPC
  • C US
  • B64.5

FAQs

What is the primary use of this backflow preventer?

This backflow preventer is designed to prevent the backflow of polluted water into the potable water supply due to backsiphonage or backpressure in cross-connections identified as non-health hazards.

What are the connection types for this assembly?

This assembly features 1 1/2 inch NPT (National Pipe Thread) end connections, making it compatible with standard NPT threaded piping systems.

What is the maximum operating pressure and temperature?

The assembly has a maximum working pressure of 175 psi (12.06 bar) and operates efficiently within a temperature range of 33°F to 140°F (0.5°C to 60°C).

How easy is it to maintain the LF2000BM2-LBV?

Maintenance is simplified with a single top entry access cover, allowing for convenient in-line repairs and easy replacement of internal components like seats and discs without special tools.

Is this product compliant with lead-free regulations?

Yes, it features Lead Free* construction, ensuring that the wetted surface contains less than 0.25% lead by weight, in compliance with current lead-free installation requirements.
