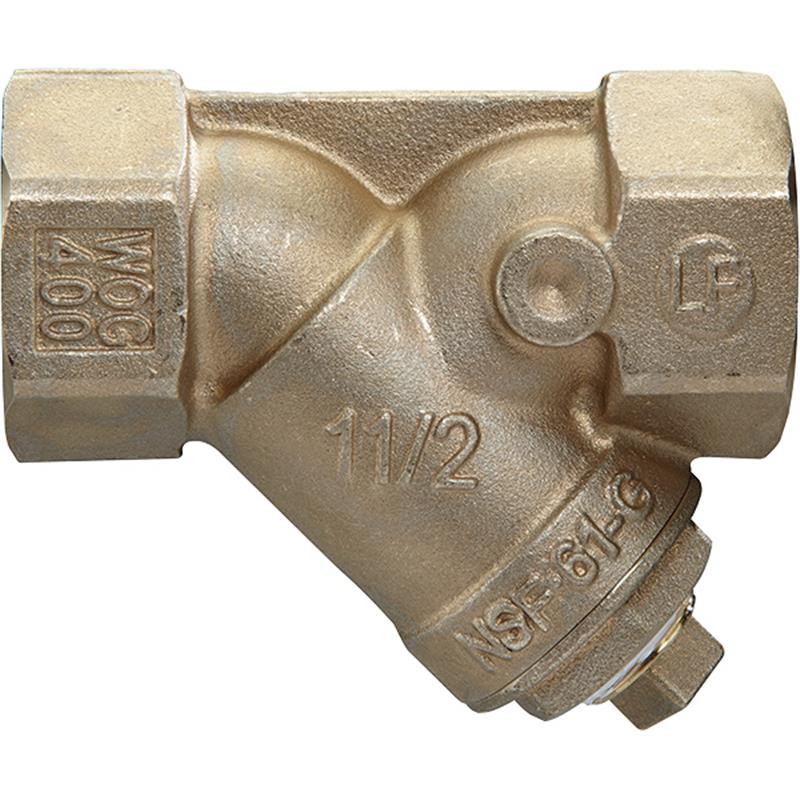

1 1/2 LF650A

Item Number: 0122979
1 1
$270.01
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • Size: 1 1/2 inch
  • Weight: 1.1 lb
  • Body Material: Cast copper silicon alloy
  • Screen Material: 304 stainless steel
  • Screen Mesh: 20
  • Maximum Working Pressure (WOG): 400 PSI @ 210°F
  • End Connections: NPT threaded
  • Lead Free Construction
  • Tapped Retainer Cap with Closure Plug

Description

This 1 1/2 inch FEBCO Series LF650A Y pattern strainer is engineered to protect sensitive equipment in water piping systems from damage caused by foreign debris. Constructed from lead-free cast copper silicon alloy, it meets current lead-free installation requirements. Key features include a durable 304 stainless steel 20 mesh screen and a tapped retainer cap with a closure plug for easy maintenance. It offers NPT threaded connections and can withstand a maximum working pressure of 400 PSI at 210°F (WOG). This robust strainer ensures pipeline integrity and equipment longevity.

Help Me Connect

Connections

  • Features female NPT inlet and outlet connections designed for straightforward integration into existing piping systems.
View full details

Additional Details

This 1 1/2 inch lead free Y pattern strainer is designed for installation in water piping systems to protect expensive equipment, such as backflow preventers, from damage caused by foreign material in the pipeline.

Its Lead Free construction complies with modern installation requirements.

Features

  • Tapped retainer cap with closure plug
  • 304 stainless steel, 20 mesh screen
  • Lead free cast copper silicon alloy body
  • Gasket
  • Recessed screen seats for accurate screen alignment

Specifications

  • Size: 1 1/2 inch (40mm)
  • Body Material: Cast copper silicon alloy
  • Cap/Cover Material: Cast copper silicon alloy
  • Screen Material: 304 stainless steel
  • Screen Mesh: 20 Mesh
  • End Connections: NPT threaded
  • Maximum Working Pressure (WOG): 400 PSI @ 210°F (99°C)
  • Maximum Working Pressure (WSP): 125 PSI @ 353°F (178°C)

FAQs

What is the primary purpose of the FEBCO Series LF650A Y strainer?

The primary purpose is to protect expensive equipment, such as backflow preventers, in water piping systems from damage or failure caused by foreign material in the pipeline.

What material is the body of the 1 1/2 LF650A strainer made from?

The body and cap/cover of the strainer are constructed from lead-free cast copper silicon alloy, ensuring compliance with lead-free installation requirements.

What kind of screen is used in this strainer?

It utilizes a 20 mesh, 304 stainless steel screen, designed to effectively filter foreign material from the water flow.

What are the maximum pressure and temperature ratings for this strainer?

The maximum working pressure (WOG) is 400 PSI at 210°F (99°C), and the maximum working pressure (WSP) is 125 PSI at 353°F (178°C).

How does the strainer facilitate maintenance?

The strainer includes a tapped retainer cap with a closure plug, which allows for convenient blow-down and screen cleaning.
