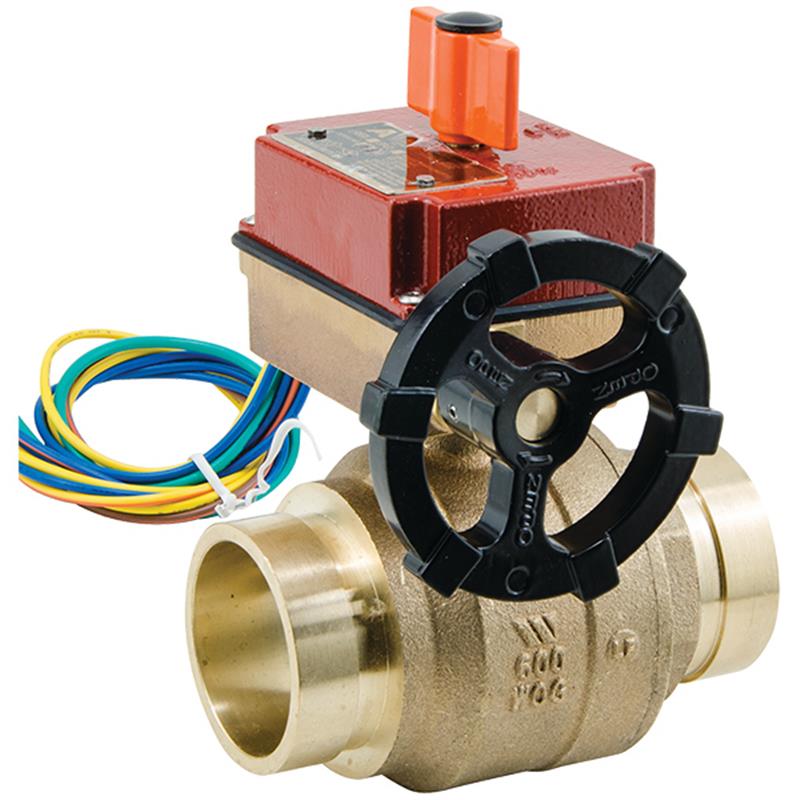

1 1/2 LFAFBV-E-FP-T

Item Number: 88005720
1 1
$825.01
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Valve Size: 1 1/2 inch
  • Weight: 21.1 lb
  • End Connections: Female NPT Threaded
  • Body Material: Lead Free Copper-Silicon Alloy
  • Pressure Rating (UL/FM): 400 PSI
  • Operation: Gear Operated Slow-Close Quarter-Turn
  • Switches: Integrated Supervisory Tamper Switches
  • Temperature Range: 33°F - 180°F
  • Approvals: UL Listed, FM Approved, NSF/ANSI 372

Description

This 1 1/2 inch Lead Free Gear Operated Ball Valve with NPT threaded ends is UL/FM rated for fire suppression systems. Its 2-piece lead free copper silicon alloy construction ensures durability and compliance with reduced lead content standards. The slow-close gear operation effectively eliminates water hammer, while integrated supervisory switches provide critical monitoring, configurable as Normally Open or Normally Closed. Rated for 400 PSI working pressure and suitable for temperatures from 33°F to 180°F, this valve is ideal for reliable indoor and outdoor use in fire protection applications. Item number 88005720.

Help Me Connect

Connections

  • This valve features female NPT threaded ends designed to connect with corresponding male NPT threaded pipe or fittings.
  • The valve is designed for use with Schedule 40 pipe.

Switch Wiring

  • The integrated supervisory switches can be wired as either Normally Open (NO) or Normally Closed (NC), offering flexibility for various electrical monitoring systems.
  • The reversible supervisory switch box simplifies electrical wiring access, ensuring straightforward installation with fire protection system controls.
View full details

Additional Details

This 1 1/2 inch full port gear operated ball valve is UL/FM rated for use in fire suppression systems.

It features a 2-piece lead free construction, integrated supervisory switches, a mechanical indicator flag, a side port tap, and female NPT threaded ends, suitable for indoor and outdoor applications.

Features

  • Slow open and slow closing operation helps to eliminate water hammer
  • Can be wired as either Normally Open or Normally Closed
  • Reversible supervisory switch box simplifies electrical wiring access
  • Gear operated quarter-turn operation for precise control
  • Includes two standard internal tamper switches
  • Mechanical indicator flag for clear position status
  • Clockwise-to-close handle with ergonomic design
  • Side port tap for additional connection flexibility

Construction

  • Manufactured with a Lead Free cast copper silicon alloy body
  • Equipped with a chrome-plated brass ball and brass stem
  • Features Virgin PTFE seats for low torque and positive shut off
  • Lead Free components ensure the wetted surface contains less than 0.25% of lead by weight

Specifications

  • Valve Type: 2-Piece, Full Port, Gear Operated Ball Valve
  • Valve Size: 1 1/2 inch
  • End Connections: Female NPT Threaded
  • Operation: Quarter-Turn Gear Operated
  • Handle Type: Clockwise-to-close
  • Maximum UL/FM Rated Working Pressure: 400 PSI (27.6 bar)
  • Maximum Work Pressure (WOG): 600 PSI (41.4 bar)
  • Hydrostatic Test Pressure: 900 PSI (62.0 bar)
  • Temperature Range: 33°F - 180°F (0.5°C - 82°C)
  • Body Material: Lead Free Copper-Silicon Alloy
  • Ball Material: Chrome Plated Brass
  • Seat Material: Virgin PTFE
  • Stem Material: Brass
  • Stem Packing Material: Virgin PTFE
  • Stem O-Ring Material: EPDM
  • Box/Cover Material: Bronze ASTM B584 Alloy 844
  • Yoke Material: LEAD-FREE Copper Silicon Alloy
  • Screw Material: Brass
  • Traveler Nut Material: Brass
  • Switch Type: Integrated Tamper Switches (2)
  • Lead Content: Less than 0.25% by weight (wetted surface)

Certificates & Approvals

  • UL Listed
  • FM Approved
  • NSF Certified to NSF/ANSI 372
  • NFPA 11 Compliant
  • NFPA 13 Compliant (Section 6.7.1)
  • NFPA 14 Compliant
  • NFPA 15 Compliant
  • NFPA 16 Compliant
  • NFPA 20 Compliant
  • NFPA 22 Compliant
  • NFPA 24 Compliant
  • Compliant to ANSI/ASME B1.20.1

FAQs

What is the primary application for this 1 1/2 inch ball valve?

This 1 1/2 inch gear operated ball valve is primarily designed and UL/FM rated for use in fire suppression systems, suitable for both indoor and outdoor installations.

What type of connections does this valve utilize?

The valve features 1 1/2 inch female NPT (National Pipe Taper) threaded ends, designed for secure attachment to corresponding male NPT threaded pipes or fittings.

What is the maximum pressure rating for this valve in fire protection systems?

This valve has a Maximum UL/FM Rated Working Pressure of 400 PSI (27.6 bar) for service in fire protection systems. It also has a general Maximum Work Pressure (WOG) of 600 PSI.

Are the internal switches in this valve configurable?

Yes, the integrated supervisory tamper switches feature a reversible switch box that allows them to be wired as either Normally Open (NO) or Normally Closed (NC) for flexible electrical monitoring.

Is this ball valve constructed with lead-free materials?

Yes, this valve features lead-free construction, meaning the wetted surface contacted by consumable water contains less than 0.25% of lead by weight, meeting NSF/ANSI 372 standards.
