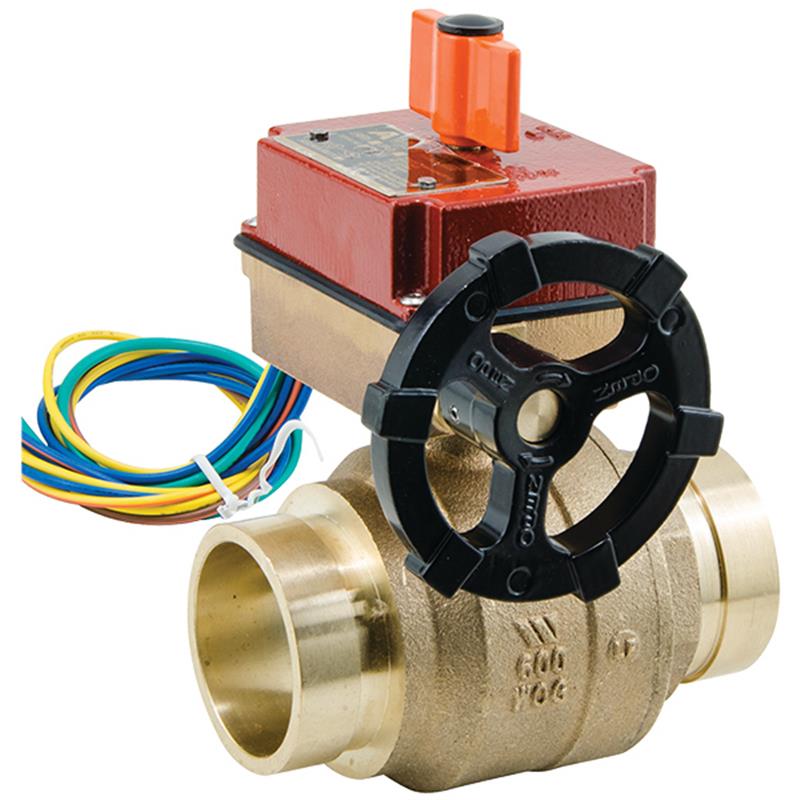

1 1/2 LFAFBV-FP-G

Item Number: 88005715
1 1
$817.50
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Size: 1 1/2 inch
  • Weight: 21.5 lb
  • Connection Type: Grooved Ends
  • Pressure Rating: 400 psi UL/FM for fire systems
  • Material: Lead-Free Copper-Silicon Alloy Body
  • Operation: Slow-close gear operated
  • Supervisory Switches: Integrated, reversible wiring
  • Wiring Options: Normally Open or Normally Closed
  • Application: Indoor and Outdoor Use

Description

This 1 1/2 inch Lead Free Gear Operated Ball Valve features full port design and grooved ends, suitable for fire suppression systems. UL/FM rated for 400 psi, it is constructed from lead-free cast copper silicon alloy with a chrome-plated brass ball and PTFE seats. The slow-close gear operation helps prevent water hammer, while integrated supervisory switches can be wired as normally open or normally closed. Approved for both indoor and outdoor applications, this valve provides reliable positive shut-off and compliance with NFPA 13 Section 6.7.1. Item number 88005715.

Help Me Connect

Connections

  • This valve features grooved ends for connection to compatible grooved piping systems.
  • It is designed for use with Schedule 40 pipe.
View full details

Additional Details

This 1 1/2 inch full port gear operated ball valve is UL/FM rated for use in fire suppression systems. It features 2-piece lead free construction, integrated supervisory switches, a mechanical indicator flag, and grooved ends. The valve is rated 400 psi for indoor and outdoor applications.

Features

  • Slow open and slow closing operation helps to eliminate water hammer.
  • Can be wired as either Normally Open or Normally Closed.
  • Reversible supervisory switch box simplifies electrical wiring access.
  • Gear operated quarter-turn operation for precise control.
  • Standard internal tamper switches (2) included.
  • Conforms to NFPA 13 Section 6.7.1.
  • Designed for use with Schedule 40 pipe.
  • Approved for indoor and outdoor use.
  • Clockwise-to-close handle with an ergonomic design.

Specifications

  • Valve Type: 2-Piece, Full Port, Gear Operated Ball Valve
  • Valve Body: Lead Free Copper-Silicon Alloy
  • Ball: Chrome Plated Brass
  • Seats: Virgin PTFE
  • Stem: Brass
  • Stem Packing: Virgin PTFE
  • Stem O-Ring: EPDM
  • Box/Cover: Bronze ASTM B584 Alloy 844
  • Yoke: LEAD-FREE Copper Silicon Alloy
  • Screw: Brass
  • Traveler Nut: Brass

Performance

  • Maximum UL/FM Rated Working Pressure: 400psi (27.6 bar)
  • Maximum Work Pressure (WOG): 600psi (41.4 bar)
  • Hydrostatic Test Pressure: 900psi (62.0 bar)
  • Temperature Range: 33°F - 180°F (0.5°C - 82°C)

Switch Ratings

  • 125 VAC Resistive: 10.1A
  • 125 VAC Lamp: 1.5A
  • 250 VAC Resistive: 10.1A
  • 250 VAC Lamp: 1A
  • 30 VDC Resistive: .4A
  • 30 VDC Lamp: 2A
  • 250 VDC Resistive: 0.2A
  • 250 VDC Lamp: 0.03A

Certificates & Approvals

  • UL Listed
  • FM Approved
  • NSF Certified to NSF/ANSI 372
  • NFPA 11, 13, 14, 15, 16, 20, 22, and 24 Compliant

FAQs

What is the primary application of this LFAFBV-FP-G ball valve?

This valve is designed and UL/FM rated for use in fire protection and suppression systems, making it suitable for managing water flow in such applications.

What is the maximum pressure rating for this valve?

The valve has a maximum UL/FM rated working pressure of 400 psi (27.6 bar) for fire protection service and a maximum work pressure (WOG) of 600 psi (41.4 bar).

What type of end connections does this ball valve have?

This specific model, LFAFBV-FP-G, features grooved end connections, designed for compatibility with grooved piping systems.

Does this valve help prevent water hammer?

Yes, this valve is designed with slow open and slow closing functionality specifically to help eliminate water hammer in your system.

Are the supervisory switches integrated and how can they be wired?

Yes, the valve includes two standard integrated supervisory position switches. They feature a reversible wiring harness and can be wired as either Normally Open or Normally Closed to suit different system requirements.
