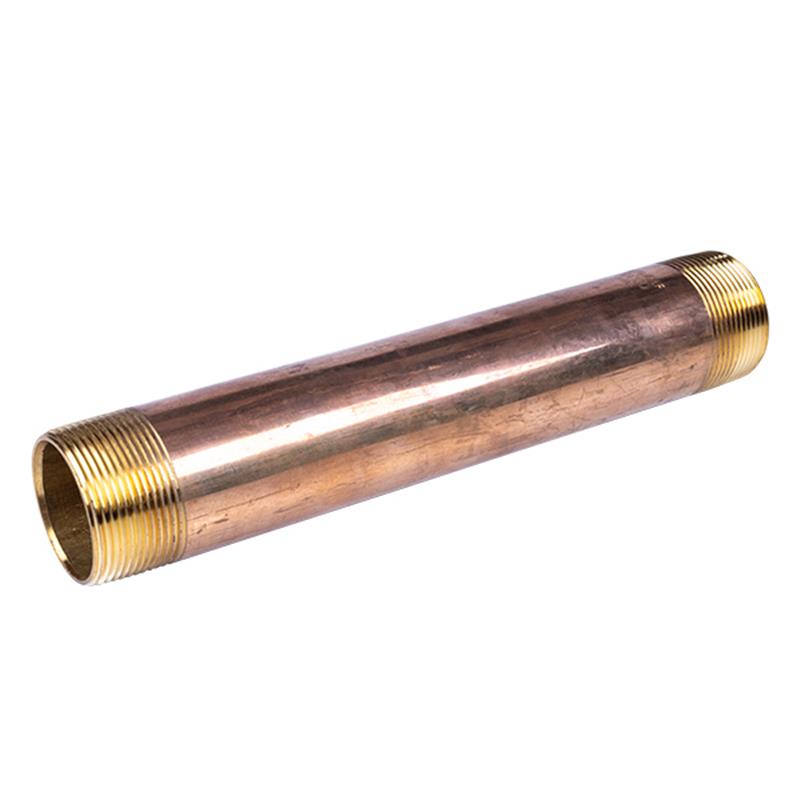

1 1/2" x 10" Lead Free Brass Nipple

Item Number: 344
Skip to product information
1 of 1
Regular price $56.07
In Stock (10)
Estimated transit time: 2 to 3 Business Days Eligible for Express Shipping

Brand - Matco-Norca

  • Size: 1 1/2 inch x 10 inch
  • Weight: 2.64 lb
  • Material: Lead Free Brass
  • Schedule: 40
  • Thread Standard: ASME B1.20.1
  • Certifications: NSF/ANSI61, NSF/ANSI372, CRN
  • Conforms to ASTM B43 (Lead Free Brass)
  • Conforms to ASTM B687 (Dimensions & Ends)
  • Minimum Wall Thickness: 0.142 inch

Description

This 1 1/2 inch by 10 inch lead free brass nipple is a Schedule 40 pipe fitting, ideal for potable water systems and various industrial applications. Constructed from lead free brass in accordance with ASTM B43, it ensures compliance with health and safety standards. The nipple features threads that conform to ASME B1.20.1 and dimensions meeting ASTM B687, guaranteeing a precise and reliable fit. It is certified to NSF/ANSI61, NSF/ANSI372, and CRN, making it suitable for a wide range of regulated environments. Its 10-inch length provides flexibility for extending pipe runs or connecting components at a specific distance.

Help Me Connect

This 1 1/2 inch x 10 inch brass nipple features male National Pipe Taper (NPT) threads on both ends, conforming to ASME B1.20.1. It is designed to connect to 1 1/2 inch female NPT threaded pipes or fittings, creating a secure and leak-resistant connection in a straight line.

View full details

Collapsible content

Additional Details

This is a 1 1/2 inch x 10 inch lead free brass nipple in Schedule 40, designed for connecting pipe or fittings in various plumbing and industrial applications.
Features
  • Constructed from lead free brass conforming to ASTM B43.
  • Dimensions and ends conform to ASTM B687 standards.
  • Threads conform to ASME B1.20.1 for reliable connections.
  • Meets NSF/ANSI61, NSF/ANSI372 & CRN certifications.
  • Suitable for use in systems requiring lead-free components.

Specifications

  • Size: 1 1/2 inch x 10 inch
  • Material: Lead Free Brass
  • Schedule: 40
  • Overall Length (L): 10 inch
  • Outer Diameter (B): 1.900 inch
  • Inner Diameter (A): 1.600 inch
  • Thread Length (L1): 1.058 inch
  • Minimum Wall Thickness (T): 0.142 inch

Certificates & Approvals

  • Lead Free Brass Conforms to: ASTM B43
  • Dimensions and Ends Conform to: ASTM B687
  • Threads Conform to: ASME B1.20.1
  • Meets: NSF/ANSI61
  • Meets: NSF/ANSI372
  • Approved: CRN

FAQs

What is the material of this nipple?

This nipple is made from lead free brass, conforming to ASTM B43 standards.

What are the dimensions of this brass nipple?

This is a 1 1/2 inch nominal pipe size nipple with an overall length of 10 inches. It is a Schedule 40 pipe fitting.

What thread standard does this nipple use?

The threads on this brass nipple conform to ASME B1.20.1, which indicates National Pipe Taper (NPT) threads.

Is this product certified for potable water applications?

Yes, this lead free brass nipple meets NSF/ANSI61 and NSF/ANSI372 certifications, making it suitable for potable water systems. It also has CRN approval.

Can this nipple be used to extend a pipe run?

Yes, the 10-inch length of this nipple makes it suitable for extending pipe runs or for connecting two female-threaded fittings at a specific distance.
