1 1/2" x 3/4" Lead Free Brass Bushing

Item Number: 15291
Skip to product information
1 of 1
Regular price $23.30
Limited Stock (6)
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Brand - Matco-Norca

  • Material: Lead Free Brass (ASTM B584, Alloy C89833)
  • Weight: 0.54 lb
  • Class Rating: 125 lbs.
  • Outer Thread: 1-1/2 inch NPT Male
  • Inner Thread: 3/4 inch NPT Female
  • Certified: NSF 61, NSF 372
  • Thread Standard: ASME B1.20.1
  • Length (A): 0.83 inch
  • Hex Diameter (C): 1.62 inch

Description

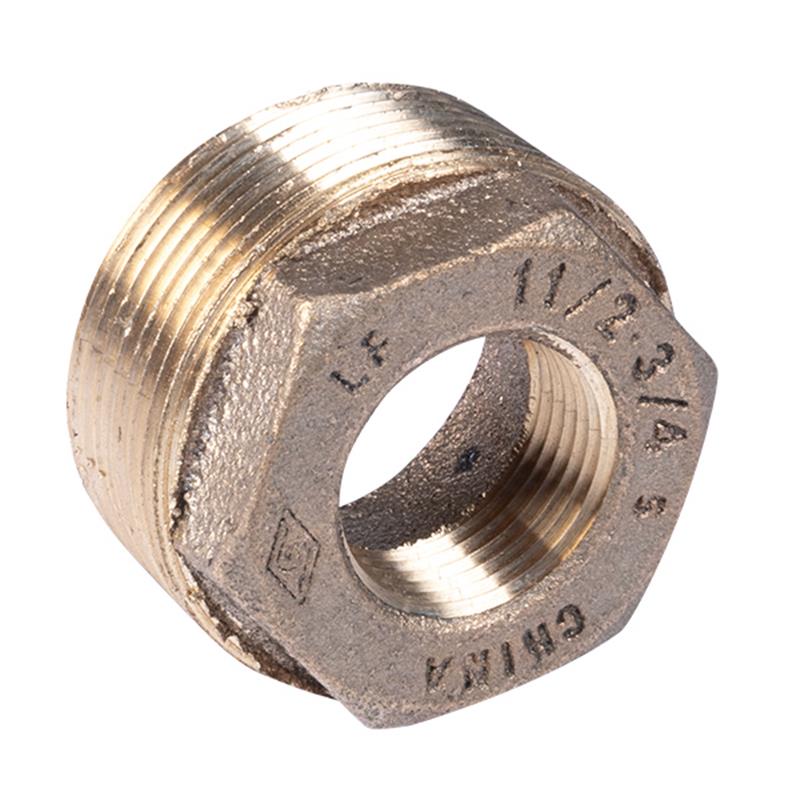

This MATCO NORCA 1 1/2" x 3/4" Lead Free Brass Bushing is an essential fitting for reducing pipe sizes within plumbing systems. Constructed from durable ASTM B584, Alloy C89833 lead-free brass, it ensures safety for potable water applications. The bushing features a 1 1/2 inch NPT male thread and a 3/4 inch NPT female thread, conforming to ASME B1.20.1 thread standards for a secure connection. Rated for Class 125 lbs., it is also approved by NSF 61 and NSF 372. Item number 15291.

Help Me Connect

Connecting a Bushing

  • This bushing is designed to reduce connection sizes in a pipeline.
  • The 1 1/2 inch NPT male thread screws into a larger 1 1/2 inch female NPT port.
  • The 3/4 inch NPT female thread accepts a smaller 3/4 inch male NPT pipe or fitting.
  • Always ensure thread sealant is used for a watertight connection and do not overtighten to prevent damage.
View full details

Collapsible content

Additional Details

The 1 1/2" x 3/4" Lead Free Brass Bushing is a durable fitting designed to connect piping of different nominal sizes, featuring a lead-free brass construction suitable for potable water applications.
Connections
  • Features a 1 1/2 inch NPT male thread for connecting into a larger female NPT fitting.
  • Provides a 3/4 inch NPT female thread for connecting to a smaller male NPT fitting or pipe.
Material & Construction
  • Constructed from lead-free brass (ASTM B584, Alloy C89833), ensuring safety for water systems.
  • Designed to Class 125 lbs. specifications for robust performance.
  • Dimensions conform to ASME B16.15 and B16.18 standards.
  • Threads manufactured to ASME B1.20.1 for reliable sealing.

Specifications

  • Product Type: Bushing
  • Material: Lead Free Brass (ASTM B584, Alloy C89833)
  • Class Rating: 125 lbs.
  • Outer Thread Size: 1-1/2 inch NPT Male
  • Inner Thread Size: 3/4 inch NPT Female
  • Thread Standard: ASME B1.20.1
  • Dimension Standard: ASME B16.15, ASME B16.18
  • Overall Length (A): 0.83 inch
  • Overall Hex Diameter (C): 1.62 inch

Certificates & Approvals

  • NSF 61
  • NSF 372

FAQs

What material is this bushing made from?

This bushing is made from lead-free brass, specifically ASTM B584, Alloy C89833, ensuring it is safe for potable water applications.

What are the thread sizes on this bushing?

The bushing has a 1 1/2 inch NPT male thread on the exterior and a 3/4 inch NPT female thread on the interior for reducing pipe connections.

What is the pressure class rating for this brass bushing?

This brass bushing is rated for Class 125 lbs., indicating its suitability for various pressure applications within its specified limits.

Are there any certifications for this product?

Yes, this lead-free brass bushing is approved by NSF 61 and NSF 372, confirming its compliance with standards for drinking water system components.

What standards do the dimensions and threads conform to?

The dimensions of this bushing conform to ASME B16.15 and B16.18 standards, while the threads are manufactured according to ASME B1.20.1 specifications for reliable connections.
