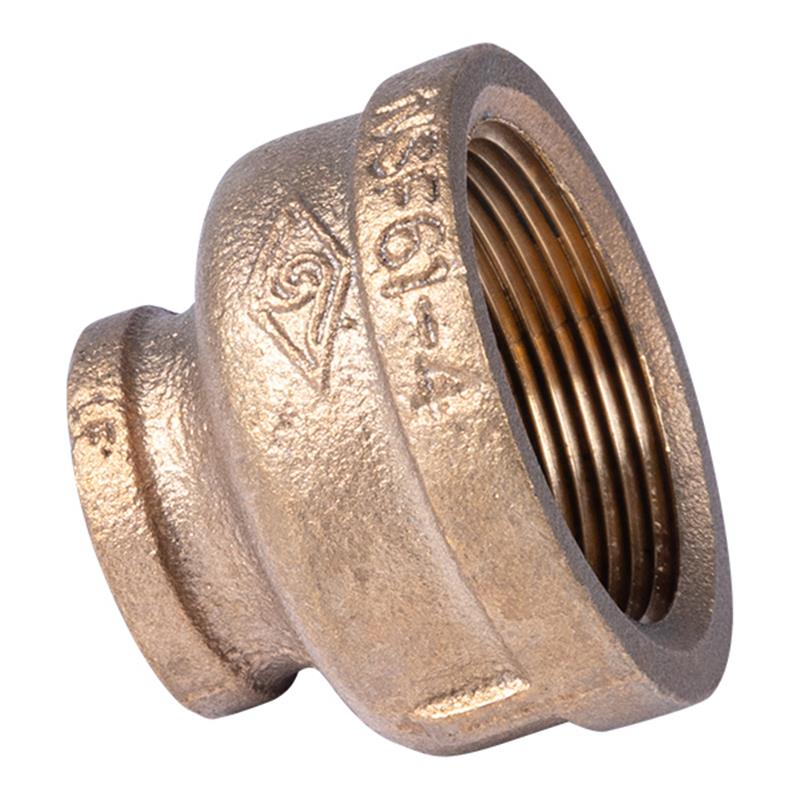

1 1/2" x 3/4" Lead Free Reducing Brass Coupling
Item Number: 15434
1
/
of
1
Regular price
$37.74
In Stock
(10)
Estimated transit time: 2 to 5 Business Days
Eligible for Express Shipping
Brand - Matco-Norca
Couldn't load pickup availability
- Nominal Size: 1 1/2 inch x 3/4 inch
- Weight: 0.68 lb
- Material: Lead Free Brass (ASTM B584, Alloy C89833)
- Connection Type: Reducing Coupling
- Thread Standard: ASME B1.20.1 NPT
- Class: 125 lbs.
- Approved: NSF 61, NSF 372
- Overall Length: 1.80 inches
Description
Description
The Matco-Norca 1 1/2" x 3/4" Lead Free Reducing Brass Coupling (15434) is a durable fitting used to join pipes of different diameters. Constructed from ASTM B584 Alloy C89833 lead-free brass, it is suitable for potable water applications, confirmed by NSF 61 and 372 approvals. This Class 125 lbs. coupling features ASME B1.20.1 NPT threads for secure, leak-free connections. Its robust design adheres to ASME B16.15 and B16.18 dimension standards, providing reliable performance for plumbing and industrial systems requiring a 1 1/2 inch to 3/4 inch reduction.
Help Me Connect
Help Me Connect
Thread Connections
- The Matco-Norca 1 1/2" x 3/4" Lead Free Reducing Brass Coupling is equipped with female NPT threads on both ends.
- The larger end is designed to connect to a 1 1/2 inch male NPT pipe or fitting.
- The smaller end is designed to connect to a 3/4 inch male NPT pipe or fitting.
- Adherence to the ASME B1.20.1 thread standard ensures compatibility with national pipe taper threads, providing a secure and leak-tight connection in your piping system.

Collapsible content
Additional Details
The 1 1/2" x 3/4" Lead Free Reducing Brass Coupling is designed for securely joining two pipes of different diameters in plumbing and industrial systems. This fitting facilitates a reduction from a 1 1/2 inch connection to a 3/4 inch connection, featuring female NPT threads on both ends.
Material and Construction
- Constructed from ASTM B584, Alloy C89833 Lead Free Brass for durability and compliance with lead-free requirements.
- Designed to meet ASME B16.15 and B16.18 dimension standards.
Connections
- Features ASME B1.20.1 NPT threads on both the 1 1/2 inch and 3/4 inch female ends.
- Allows for a seamless reduction in pipe size.
Specifications
- Body Material: Lead Free Brass (ASTM B584, Alloy C89833)
- Connection Type: Reducing Coupling
- Nominal Size: 1 1/2 inch x 3/4 inch
- Thread Standard: ASME B1.20.1
- Dimension Standards: ASME B16.15, ASME B16.18
- Class: 125 lbs.
- Overall Length (Dimension A): 1.80 inches
Certificates & Approvals
- NSF 61
- NSF 372
FAQs
What is the primary use of this reducing coupling?
This Matco-Norca reducing brass coupling is primarily used to connect two pipes of different sizes, specifically reducing from a 1 1/2 inch pipe to a 3/4 inch pipe, in various plumbing and industrial applications.
What material is this coupling made from?
This coupling is made from Lead Free Brass, specifically ASTM B584, Alloy C89833, ensuring compliance with lead-free requirements for potable water systems.
Are the threads on this coupling compatible with standard pipe threads?
Yes, the coupling features ASME B1.20.1 NPT (National Pipe Taper) threads, which are a widely recognized standard for pipe threads, ensuring broad compatibility with corresponding male NPT fittings.
Is this coupling approved for potable water use?
Yes, this Lead Free Reducing Brass Coupling is approved by NSF 61 and NSF 372, making it safe and compliant for use in potable (drinking) water applications.
What is the pressure class of this brass coupling?
This coupling is rated as Class 125 lbs., which indicates its suitability for general plumbing and industrial pressure applications.
