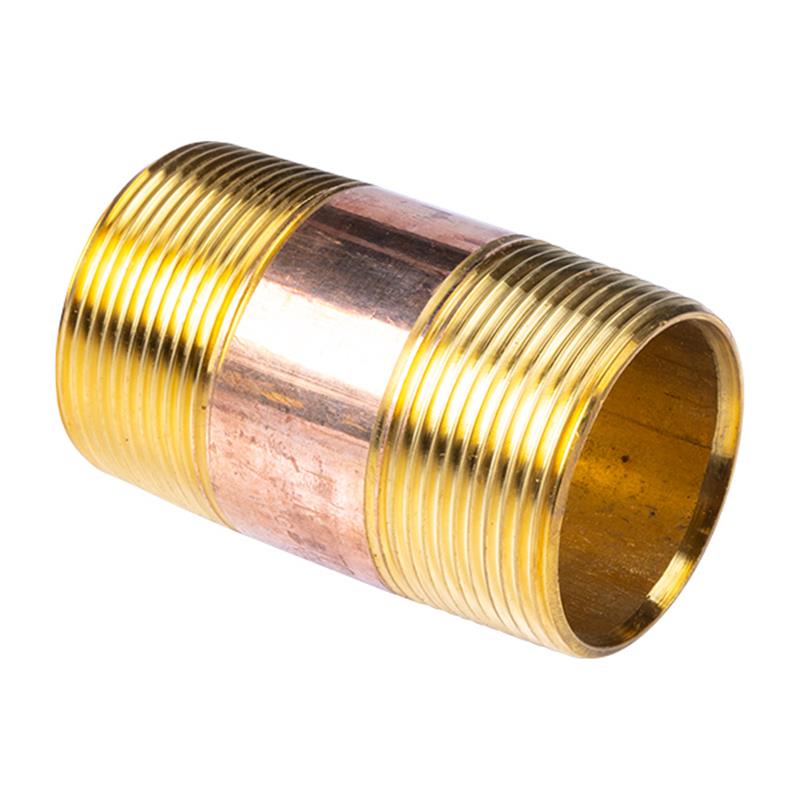

1 1/2" x 3" Lead Free Brass Nipple
Item Number: 2996
1
/
of
1
Regular price
$17.69
In Stock
(10)
Estimated transit time: 2 to 3 Business Days
Eligible for Express Shipping
Brand - Matco-Norca
Couldn't load pickup availability
- Size: 1 1/2 inch x 3 inches
- Weight: 0.79 lb
- Material: Lead Free Brass
- Schedule: 40
- Conforms to ASTM B43, ASTM B687, ASME B1.20.1
- Meets NSF/ANSI61, NSF/ANSI372, CRN
- Minimum Wall Thickness: 0.142 inch
- Overall Length: 3 inches
Description
Description
This 1 1/2 inch x 3 inch lead free brass nipple is a crucial component for connecting various piping elements. Constructed from durable Schedule 40 lead free brass, it meets stringent standards including ASTM B43 for material and ASME B1.20.1 for threads. This nipple is certified to NSF/ANSI61, NSF/ANSI372, and CRN, ensuring its suitability for potable water and other critical applications. Its precise dimensions and robust construction provide a reliable and long-lasting connection. Ideal for both new installations and repairs requiring a 1 1/2 inch nominal pipe size.
Help Me Connect
Help Me Connect
Connections
This brass nipple features male threads on both ends, designed to connect to compatible female threaded fittings. The threads conform to ASME B1.20.1, indicating National Pipe Taper (NPT) threads, which create a tight seal when properly installed with pipe sealant.

Collapsible content
Additional Details
This is a 1 1/2 inch x 3 inch lead free brass nipple designed for connecting piping in residential, commercial, and industrial applications.
Features
- Constructed from Schedule 40 lead free brass conforming to ASTM B43.
- Dimensions and ends conform to ASTM B687.
- Threads conform to ASME B1.20.1.
- Meets NSF/ANSI61, NSF/ANSI372, and CRN standards for quality and safety.
Specifications
- Size: 1 1/2 inch
- Length: 3 inches
- Body Material: Lead Free Brass
- Schedule: 40
- Thread Standard: ASME B1.20.1
- Material Standard: ASTM B43
- End Standard: ASTM B687
- Minimum Wall Thickness: 0.142 inch
- Outside Diameter: 1.900 inches
- Inside Diameter: 1.600 inches
- Thread Length: 1.058 inches
Certificates & Approvals
- NSF/ANSI61
- NSF/ANSI372
- CRN
FAQs
What material is this brass nipple made from?
This nipple is made from Schedule 40 lead free brass, conforming to ASTM B43 material standards.
What are the overall dimensions of this nipple?
This nipple is 1 1/2 inches in nominal pipe size and has an overall length of 3 inches. Its minimum wall thickness is 0.142 inch.
What certifications does this brass nipple hold?
This brass nipple meets NSF/ANSI61, NSF/ANSI372, and CRN standards, ensuring its quality and safety for various applications.
What type of threads does this nipple use?
The threads on this nipple conform to ASME B1.20.1, which specifies National Pipe Taper (NPT) threads.
Can this nipple be used for drinking water applications?
Yes, being lead free and meeting NSF/ANSI61 and NSF/ANSI372 standards, this nipple is suitable for use in potable water systems.
