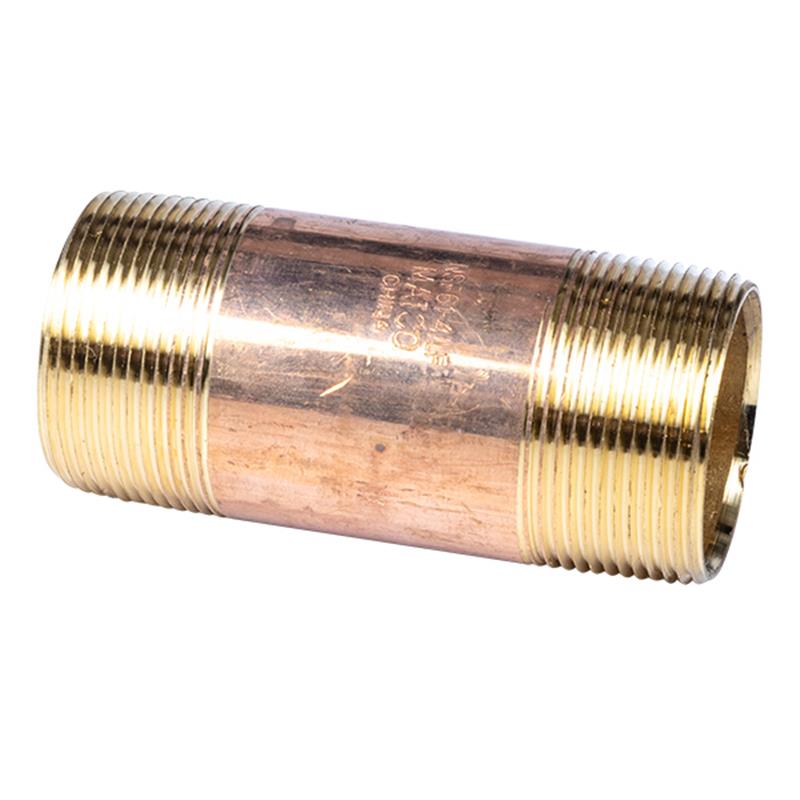

1 1/2" x 4" Lead Free Brass Nipple
Item Number: 3671
1
/
of
1
Regular price
$23.04
In Stock
(10)
Estimated transit time: 2 to 3 Business Days
Eligible for Express Shipping
Brand - Matco-Norca
Couldn't load pickup availability
- Nominal Pipe Size: 1 1/2 inch
- Weight: 1.06 lb
- Length: 4 inches
- Material: Lead Free Brass
- Pipe Schedule: Schedule 40
- Threads: ASME B1.20.1
- Certifications: NSF/ANSI61, NSF/ANSI372, CRN
- Conforms to ASTM B43 for lead-free brass
- Conforms to ASTM B687 for ends
Description
Description
This 1 1/2 inch by 4 inch lead free brass nipple is a robust, Schedule 40 component designed for connecting two female threaded pipe sections. Manufactured from lead free brass, it conforms to ASTM B43 and meets NSF/ANSI61, NSF/ANSI372, and CRN certifications, making it suitable for potable water applications. Its threads conform to ASME B1.20.1, ensuring compatibility with standard NPT fittings for a secure and reliable connection. The nipple features a 1.600-inch inside diameter and a 1.900-inch outside diameter, providing consistent performance in various fluid transfer systems.

Collapsible content
Additional Details
This is a 1 1/2 inch by 4 inch lead free brass nipple, commonly used in plumbing and industrial applications to connect two female threaded pipes or fittings.
It provides a secure, leak-resistant connection in various fluid transfer systems.
Features
- Manufactured from lead free brass conforming to ASTM B43 for safe use in potable water applications.
- Designed to Schedule 40 pipe specifications for durability.
- Ends conform to ASTM B687 for reliable connections.
- Threads conform to ASME B1.20.1 ensuring compatibility with standard NPT fittings.
Specifications
- Nominal Pipe Size: 1 1/2 inch
- Length: 4 inches
- Body Material: Lead Free Brass
- Pipe Schedule: Schedule 40
- Wall Thickness (T min.): 0.142 inch
- Inside Diameter (A): 1.600 inches
- Outside Diameter (B): 1.900 inches
Certificates & Approvals
- NSF/ANSI Standard: NSF/ANSI61
- NSF/ANSI Standard: NSF/ANSI372
- Certification: CRN
FAQs
What material is this nipple made from?
This nipple is made from lead free brass, conforming to ASTM B43 for material composition.
What are the dimensions of this brass nipple?
This nipple has a nominal pipe size of 1 1/2 inches and an overall length of 4 inches. It features a 1.600-inch inside diameter and a 1.900-inch outside diameter.
What pipe schedule is this nipple?
This brass nipple is manufactured to Schedule 40 specifications, indicating its wall thickness and durability.
Is this nipple certified for potable water use?
Yes, it meets NSF/ANSI61 and NSF/ANSI372 standards, confirming its suitability for potable water applications, and also carries CRN certification.
What thread standard does this nipple use?
The threads on this nipple conform to ASME B1.20.1, ensuring compatibility with standard NPT (National Pipe Taper) female threaded fittings.
