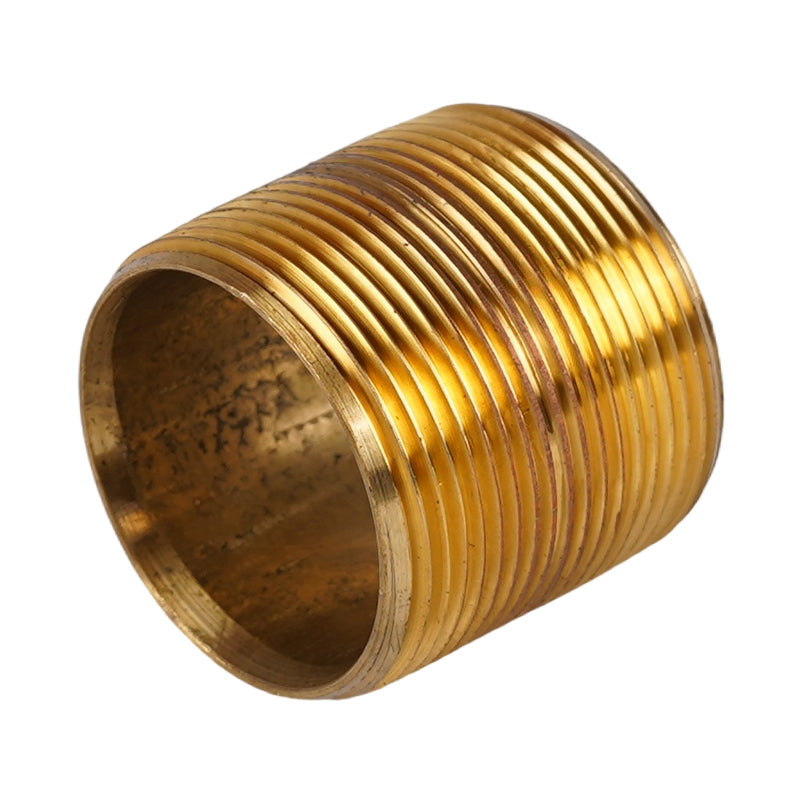

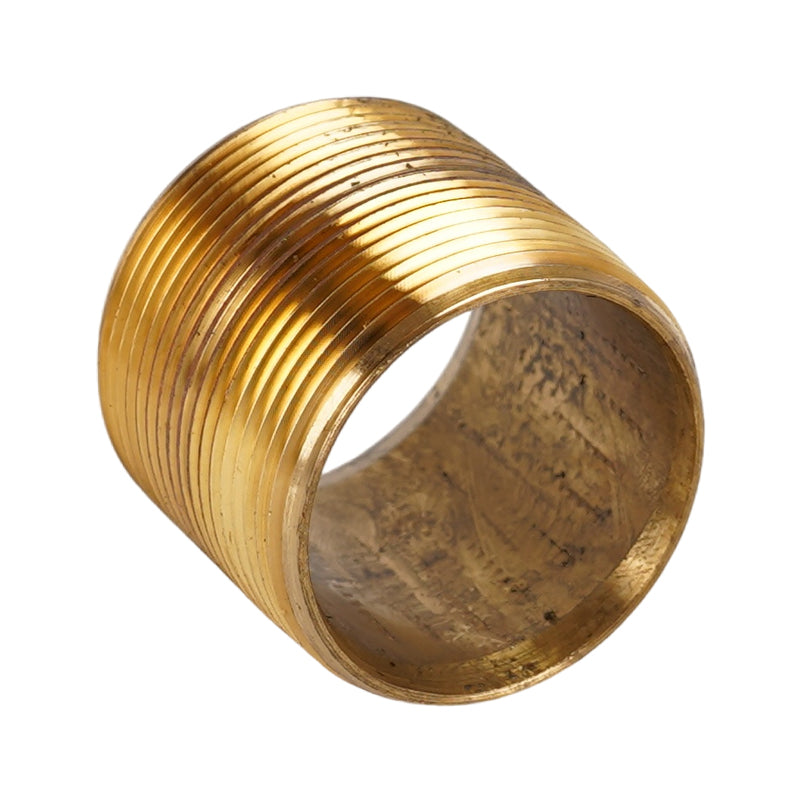

1 1/2" x Close Lead Free Brass Nipple
Item Number: 7576
1
/
of
4
Regular price
$11.96
In Stock
(10)
Estimated transit time: 2 to 3 Business Days
Eligible for Express Shipping
Brand - Matco-Norca
Couldn't load pickup availability
- Nominal Pipe Size: 1 1/2 inch
- Weight: 0.46 lb
- Nipple Type: Close Nipple
- Material: Lead Free Brass
- Pipe Schedule: Schedule 40
- Overall Length: 1-3/4 inches
- Threads conform to ASME B1.20.1
- Meets NSF/ANSI 61, NSF/ANSI 372 & CRN
- Conforms to ASTM B43 and ASTM B687
Description
Description
This 1 1/2 inch x Close Nipple is made from Schedule 40 lead free brass, designed for connecting two threaded components in tight spaces. It conforms to ASTM B43 material standards and ASTM B687 for dimensions and ends. The threads meet ASME B1.20.1 specifications, ensuring reliable connections. This brass nipple is also certified to NSF/ANSI 61 and NSF/ANSI 372 for drinking water applications, and holds a CRN for Canadian compliance. Its compact 1-3/4 inch overall length makes it ideal for installations where minimal extension is required. Item number 7576.

Collapsible content
Additional Details
This is a 1 1/2 inch x Close lead free brass nipple, for various plumbing and industrial applications where two threaded components need to be connected in close proximity.
Features
- Manufactured from Schedule 40 lead free brass
- Threads conform to ASME B1.20.1 standard
- Dimensions and ends conform to ASTM B687
Certifications
- Meets NSF/ANSI 61 for drinking water system components
- Meets NSF/ANSI 372 for lead content compliance
- Meets CRN (Canadian Registration Number) requirements
Specifications
- Nominal Pipe Size: 1 1/2 inch
- Nipple Type: Close
- Body Material: Lead Free Brass
- Pipe Schedule: Schedule 40
- Overall Length (L): 1-3/4 inches
- A Dimension: 1.600
- B Dimension: 1.900
- Minimum Wall Thickness (Tmin.): 0.142
- Thread Standard: ASME B1.20.1
- Material Conformance: ASTM B43
- Ends Conformance: ASTM B687
Certificates & Approvals
- NSF/ANSI 61
- NSF/ANSI 372
- CRN
FAQs
What is a 'Close Nipple'?
A close nipple is a very short pipe fitting that has male threads on both ends, with little to no unthreaded space in the middle. It is used to connect two female-threaded fittings that need to be close together.
Is this nipple safe for drinking water applications?
Yes, this lead free brass nipple meets NSF/ANSI 61 and NSF/ANSI 372 certifications, making it suitable for use in drinking water systems.
What is the thread standard for this brass nipple?
The threads on this brass nipple conform to the ASME B1.20.1 standard, ensuring compatibility with standard NPT (National Pipe Taper) threaded fittings.
What is the material of this nipple?
This nipple is manufactured from Schedule 40 lead free brass, conforming to ASTM B43 material specifications.
What is the overall length of the 1 1/2 inch Close Nipple?
The 1 1/2 inch Close Nipple (Part # NBR07CL) has an overall length of 1-3/4 inches.
