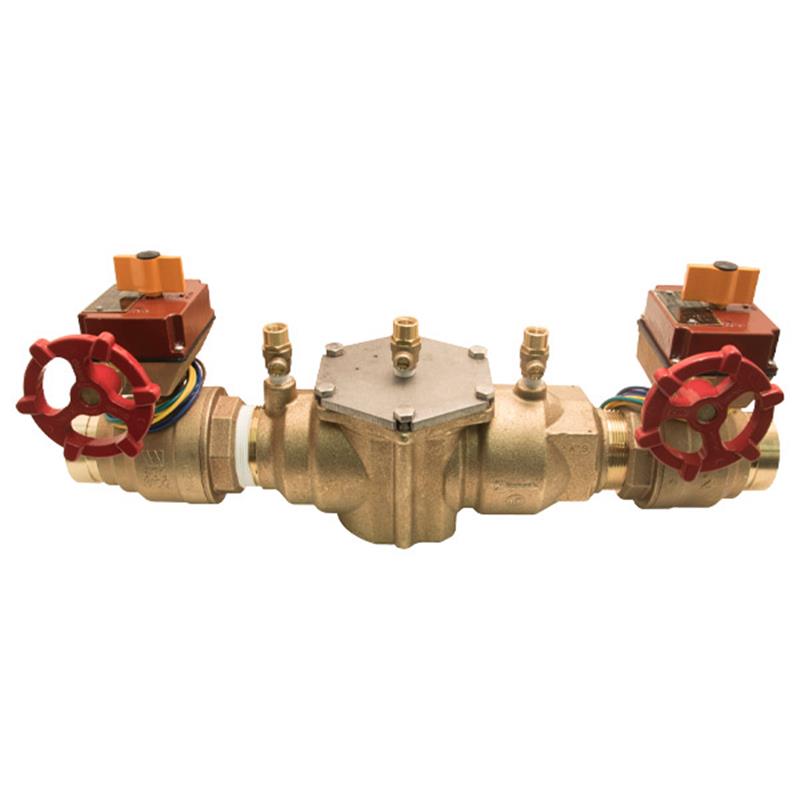

1 1/4 2000BM2-FP - GV

Item Number: 88005578
1 1
$3,258.00
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Nominal Size: 1 1/4 inch
  • Weight: 19.6 lb
  • Body Material: Cast Bronze
  • Maximum Working Pressure: 175 PSI
  • Temperature Range: 33°F - 140°F
  • Inlet/Outlet Connection: Grooved
  • Isolation Valves: Gear Operated Slow Close
  • ASSE 1015 Listed
  • Single access cover for easy maintenance

Description

The Ames 2000BM2-FP - GV is a 1 1/4 inch bronze double check valve assembly designed to prevent the backflow of non-potable, contaminated water into the potable supply. It is ideal for non-health hazard cross-connections, featuring a durable cast bronze body, gear-operated slow close isolation valves, and grooved inlet/outlet connections. With a maximum working pressure of 175 PSI and ASSE 1015 approval, this compact, modular assembly offers easy maintenance through a single access cover. Pre-wired tamper switches provide added security and monitoring capabilities for reliable performance in various installations.

Help Me Connect

Connecting Your 2000BM2-FP - GV

This 1 1/4 inch backflow preventer features grooved inlet/outlet connections. Grooved connections are typically secured using a mechanical coupling that consists of housing segments, a gasket, and bolts, creating a flexible and leak-tight joint. This type of connection simplifies installation and maintenance compared to flanged or welded joints, allowing for faster assembly and disassembly.

View full details

Additional Details

This 1 1/4 inch double check valve assembly backflow preventer is designed to prevent the reverse flow of contaminated water of non-potable quality from being pumped or siphoned into the potable water supply due to backsiphonage and/or backpressure. It is ideal for protection at cross-connections identified as non-health hazard applications and from other contaminants found at the service line entrance.

Features & Benefits

  • Ease of maintenance with only one access cover
  • Top entry design
  • Replaceable seats and seat discs for extended service life
  • Modular construction
  • Compact design
  • Cast bronze body construction for durability
  • Low pressure drop
  • No special tools required for servicing
  • Gear operated, slow close shutoffs
  • Pre-wired tamper switch (2) per shutoff
  • Reversible Wiring Harness with Gear-Operated Ball Valves (GOBV)
  • GOBV can be wired Normally Open or Normally Closed

It is illegal to use this product in any plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States. Before installing, consult your local water authority, building and plumbing codes.

Specifications

  • Product Type: Double Check Valve Assembly
  • Nominal Size: 1 1/4 inch
  • Body Material: Cast Bronze
  • Inlet/Outlet Connection: Grooved
  • Isolation Valves: Gear Operated Slow Close
  • Tamper Switches: Two, Pre-wired
  • Check Modules: Two, Positive Seating
  • Test Cocks: Top Mounted
  • Temperature Range: 33°F - 140°F (0.5°C - 60°C)
  • Maximum Working Pressure: 175 PSI (12.1 bar)
  • Installation Orientation: Horizontal and Vertical "Flow-Up" approved

Certificates & Approvals

  • Approved by the Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR-USC)
  • ASSE 1015 Listed
  • UL Classified (US & Canada)
  • IAPMO/CUPC
  • AWWA Standard C510 Compliant
  • CSA B64.5
  • NFPA 13, 14, 15, 16, 20, 22 & 24 Compliant
  • End Connections Gear-Operated Ball Valves - National Pipe Thread Taper ANSI/ASME B1.20.1 - Grooved end Table 4 of AWWA C 606-11

FAQs

What is the primary purpose of this backflow preventer?

This backflow preventer is designed to prevent the reverse flow of non-potable, contaminated water into the potable water supply, especially for cross-connections identified as non-health hazards.

What type of connections does this assembly use?

The 2000BM2-FP - GV model features grooved inlet/outlet connections, which allow for quick and secure installation with mechanical couplings.

What are the maximum operating pressure and temperature for this device?

This assembly has a maximum working pressure of 175 PSI (12.1 bar) and can operate within a temperature range of 33°F to 140°F (0.5°C to 60°C).

Can this double check valve assembly be installed in different orientations?

Yes, this model is approved for both horizontal and vertical "Flow-Up" installations, offering flexibility for various site requirements.

What certifications does this backflow preventer hold?

It is ASSE 1015 Listed, UL Classified (US & Canada), IAPMO/CUPC, AWWA Standard C510 Compliant, and CSA B64.5 certified.
