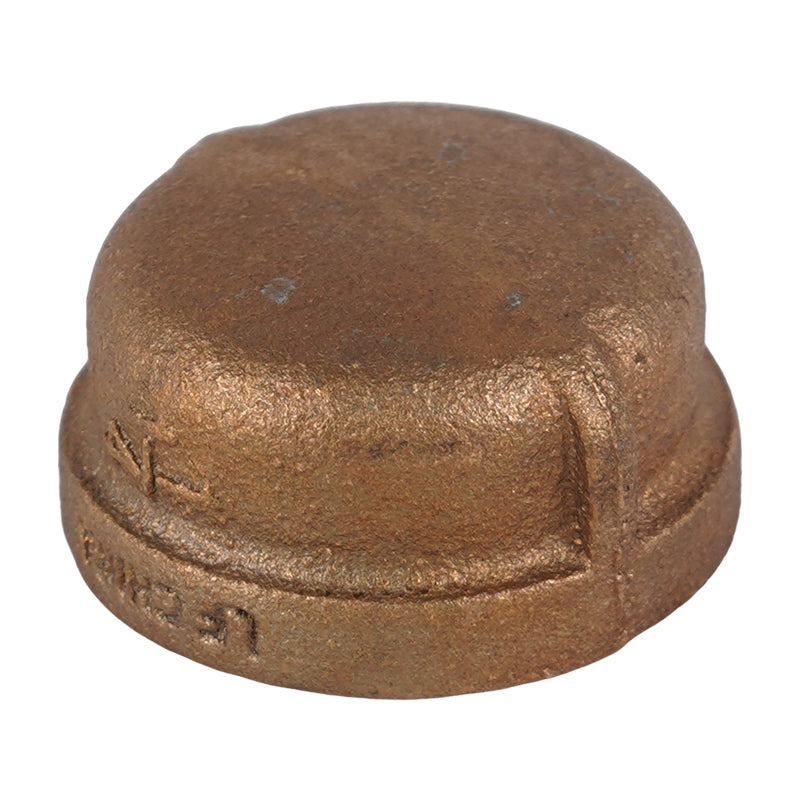

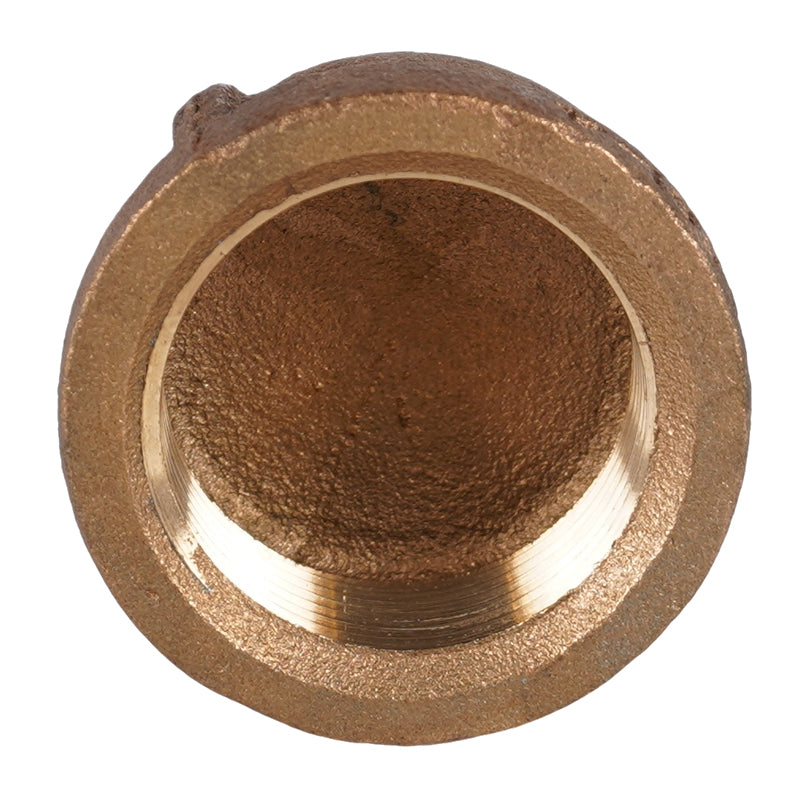

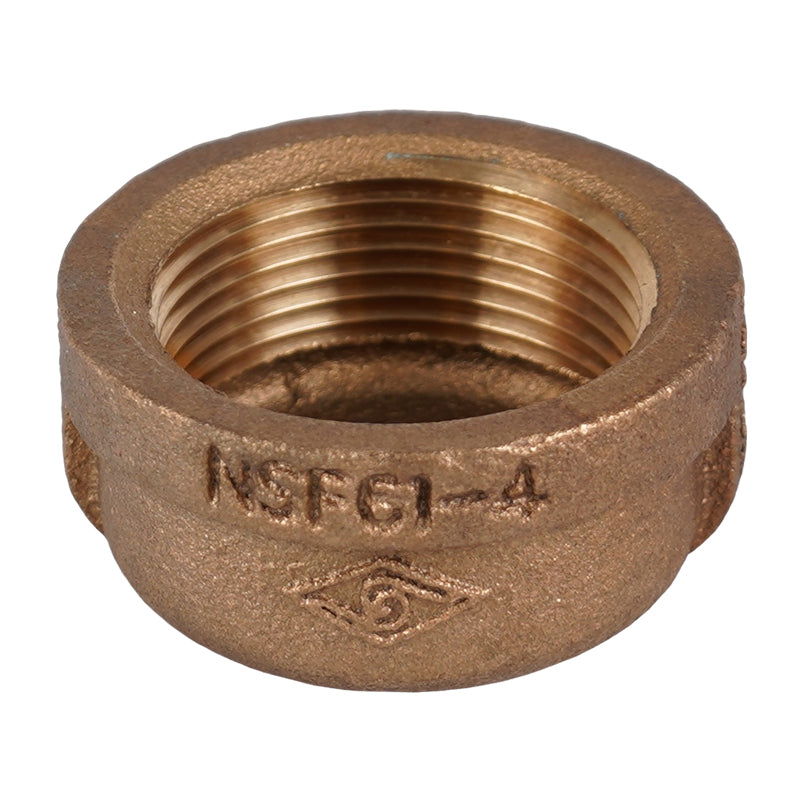

1 1/4" Lead Free Brass Cap

Item Number: 15315
Skip to product information
1 of 3
Regular price $15.62
Limited Stock (6)
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Brand - Matco-Norca

  • Material: Lead Free Brass
  • Weight: 0.49 lb
  • Connection Size: 1 1/4 inch
  • Connection Type: Female NPT
  • Class Rating: 125 lb.
  • Thread Standard: ASME B1.20.1
  • NSF 61 & 372 Approved
  • Overall Height (A): 1.10 inches

Description

This 1 1/4 inch lead free brass cap is designed to securely seal the end of a male threaded pipe or fitting. Constructed from durable ASTM B584, Alloy C89833 lead free brass, it is suitable for potable water applications and meets NSF 61 and NSF 372 standards. The cap features 1 1/4 inch female NPT threads conforming to ASME B1.20.1, ensuring compatibility with standard piping systems. With a Class 125 lb. rating, it offers reliable performance for various plumbing, fire safety, and industrial uses requiring a robust and compliant end closure.

Help Me Connect

Compatibility & Connections

  • This 1 1/4 inch lead free brass cap features female National Pipe Taper (NPT) threads. It is designed to create a tight seal when installed onto a 1 1/4 inch male NPT threaded pipe or fitting. The tapered threads ensure a secure, leak-resistant connection, commonly used in plumbing, fire safety, and industrial systems.
View full details

Collapsible content

Additional Details

This is a 1 1/4 inch lead free brass cap designed to seal the end of a threaded pipe or fitting. It provides a secure and leak-tight closure for various plumbing and industrial applications.

Features

  • Constructed from lead free brass (ASTM B584, Alloy C89833) for safe potable water use.
  • Features 1 1/4 inch female NPT threads for easy installation onto male threaded pipes.
  • Class 125 lb. rating indicates suitability for standard pressure applications.
  • Approved to NSF 61 and NSF 372 standards.

Specifications

  • Body Material: Lead Free Brass (ASTM B584, Alloy C89833)
  • Connection Size: 1 1/4 inch
  • Connection Type: Female NPT
  • Class Rating: 125 lb.
  • Thread Standard: ASME B1.20.1
  • Dimension Standard: ASME B16.15, B16.18
  • Overall Height (A): 1.10 inches

Certificates & Approvals

  • NSF 61
  • NSF 372

FAQs

What material is this cap made from?

This cap is manufactured from lead free brass, specifically ASTM B584, Alloy C89833, ensuring it is safe for various applications, including potable water systems.

What size pipe or fitting will this cap connect to?

This cap is designed to connect to a 1 1/4 inch male threaded pipe or fitting. It features matching 1 1/4 inch female NPT threads for a secure fit.

Are these caps suitable for potable water applications?

Yes, this lead free brass cap is approved to NSF 61 and NSF 372 standards, making it safe and suitable for use in potable (drinking) water systems.

What type of threads does this brass cap have?

This cap features female National Pipe Taper (NPT) threads, which conform to the ASME B1.20.1 standard. NPT threads are tapered to create a tight, leak-resistant seal.

What does the 'Class 125 lb.' rating signify?

'Class 125 lb.' refers to the pressure class rating of the fitting, indicating its general suitability for standard pressure applications in plumbing and piping systems. It is an industry-standard designation for brass fittings.
