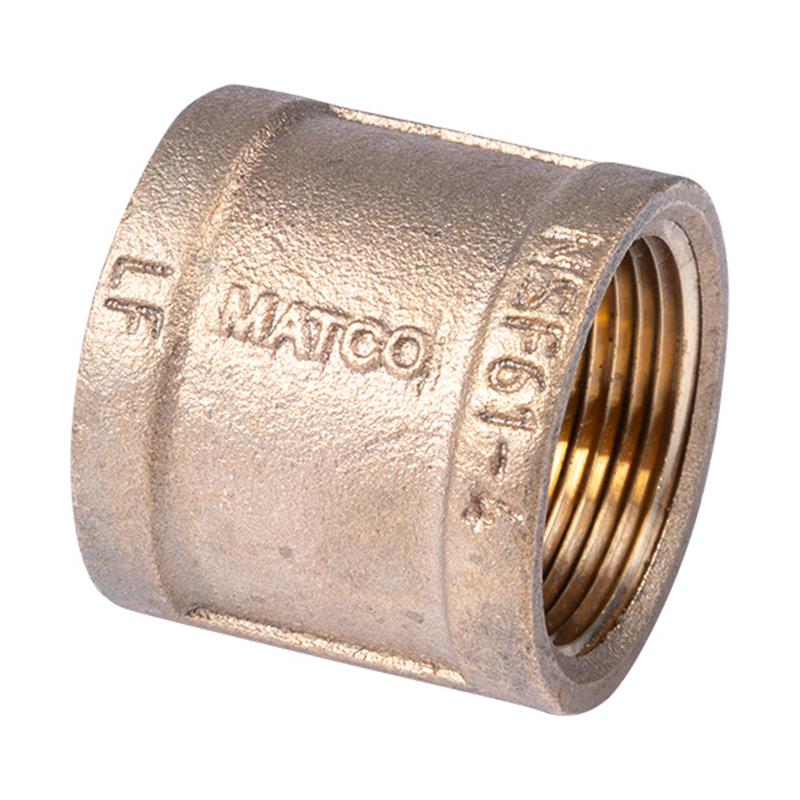

1 1/4" Lead Free Brass Coupling
Item Number: 15340
1
/
of
1
Regular price
$20.97
Limited Stock
(6)
Estimated transit time: 2 to 5 Business Days
Eligible for Express Shipping
Brand - Matco-Norca
Couldn't load pickup availability
- Material: ASTM B584, Alloy C89833 Lead Free Brass
- Weight: 0.66 lb
- Fitting Type: Coupling
- Nominal Pipe Size: 1 1/4 inch
- Fitting Class: 125 lbs.
- Overall Length: 1.86 inches
- Thread Standard: ASME B1.20.1
- Approved: NSF 61
- Approved: NSF 372
Description
Description
The 1 1/4 inch Lead Free Brass Coupling from MATCO NORCA is a robust Class 125 lbs. fitting designed to connect two pipes of the same diameter. Constructed from ASTM B584, Alloy C89833 lead-free brass, it adheres to ASME B16.15, B16.18, and B1.20.1 thread standards for secure and leak-free connections. This coupling is NSF 61 and NSF 372 approved, making it safe and compliant for use in potable water applications. With an overall length of 1.86 inches, it provides a reliable solution for various plumbing needs. Item number 15340.
Help Me Connect
Help Me Connect
Connecting Your 1 1/4" Lead Free Brass Coupling
- This coupling features female (FPT) NPT threads on both ends, designed to connect two male (MPT) NPT threaded pipes of 1 1/4 inch nominal pipe size.
- Ensure proper thread sealant, such as PTFE tape or pipe dope, is applied to the male threads for a leak-tight connection.
- Verify that the pipes being joined are also rated for Class 125 lbs. or higher to maintain system integrity.

Collapsible content
Additional Details
This is a 1 1/4 inch Lead Free Brass Coupling designed to securely join two pipes of the same size, this coupling is suitable for a variety of plumbing and industrial applications where lead-free materials are required.
Construction & Standards
- Made from ASTM B584, Alloy C89833 lead-free brass, ensuring compliance with health and safety standards for potable water.
- Conforms to ASME B16.15 and ASME B16.18 dimensions, and ASME B1.20.1 thread standards for reliable connections.
- Rated as a Class 125 lbs. fitting, indicating its robust design for general service applications.
Certifications
- NSF 61 approved, verifying its suitability for use in drinking water systems.
- NSF 372 certified, confirming its lead-free status in accordance with regulations.
Specifications
- Body Material: ASTM B584, Alloy C89833 Lead Free Brass
- Fitting Type: Coupling
- Nominal Pipe Size: 1 1/4 inch
- Fitting Class: 125 lbs.
- Overall Length (A Dimension): 1.86 inches
- Thread Standard: ASME B1.20.1
- Dimensions Standard: ASME B16.15, ASME B16.18
Certificates & Approvals
- NSF 61
- NSF 372
FAQs
What is the primary use of this 1 1/4 inch coupling?
This 1 1/4 inch Lead Free Brass Coupling is primarily used to join two pipes of the same 1 1/4 inch nominal pipe size, creating a continuous and secure connection within a piping system.
What material is this coupling made from?
This coupling is manufactured from ASTM B584, Alloy C89833 Lead Free Brass, which ensures it is compliant with health and safety standards for applications involving potable water.
What thread standard does this fitting utilize?
The coupling features threads that conform to the ASME B1.20.1 standard, which is a widely recognized specification for pipe threads, ensuring compatibility with other standard pipe components.
What certifications does this lead-free brass coupling hold?
This coupling is approved by NSF 61 and certified by NSF 372, indicating its suitability for drinking water applications and confirming its lead-free status.
What is the pressure class of this fitting?
This is a Class 125 lbs. fitting. This classification indicates its design and testing for general service applications within a piping system.
