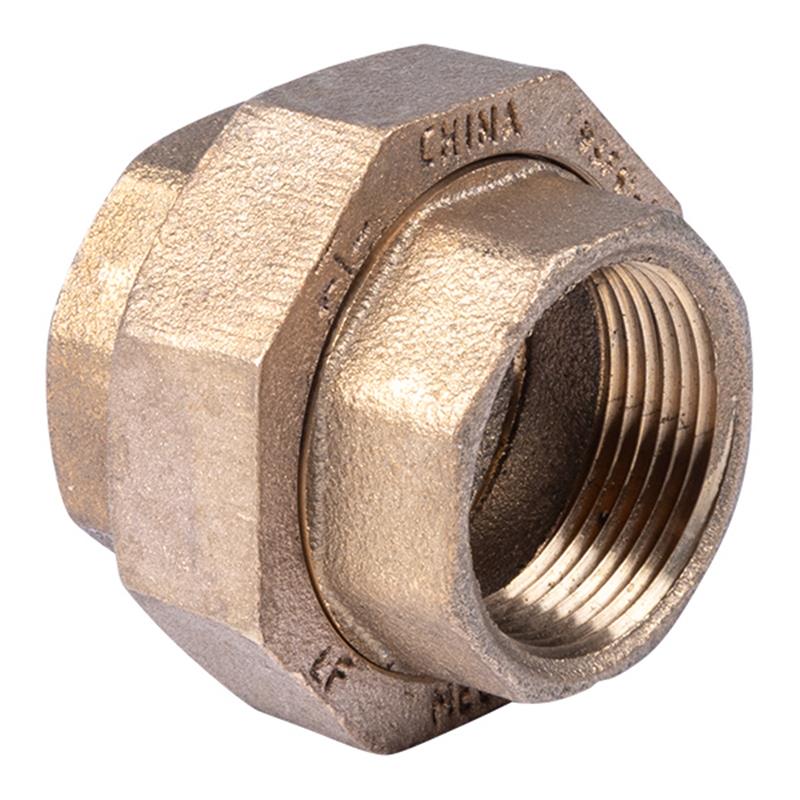

1 1/4" Lead Free Brass Union

Item Number: 15546
Skip to product information
1 of 1
Regular price $51.42
In Stock (10)
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Brand - Matco-Norca

  • Body Material: Lead Free Brass (ASTM B584, Alloy C89833)
  • Weight: 1.38 lb
  • Nominal Pipe Size: 1 1/4 inches
  • Pressure Class: 125 lbs.
  • Thread Standard: ASME B1.20.1
  • Approved: NSF 61, NSF 372
  • Designed for easy disassembly and reassembly
  • Suitable for potable water applications
  • Overall Length (A): 2.27 inches

Description

This 1 1/4 inch Lead Free Brass Union is a robust pipe fitting designed for connecting two sections of pipe or fittings, enabling convenient system disassembly and reassembly. Constructed from ASTM B584, Alloy C89833 lead-free brass, it is ideal for potable water applications, meeting NSF 61 and NSF 372 approvals. Rated for Class 125 lbs. service, it features ASME B1.20.1 compliant threads and conforms to ASME B16.15 and B16.18 dimension standards, ensuring reliable and safe performance in various plumbing systems. Its lead-free composition makes it a safe choice for drinking water.
View full details

Collapsible content

Additional Details

This 1 1/4 inch lead-free brass union is a pipe fitting designed for securely connecting two sections of pipe or fittings, allowing for easy disassembly and reassembly without rotating the pipes. It is ideal for potable water applications and other systems requiring lead-free materials.
Material
  • Constructed from lead-free brass (ASTM B584, Alloy C89833), ensuring safety for drinking water applications.
Connections
  • Features female threaded connections designed to comply with ASME B1.20.1 standards.
Features
  • Rated for Class 125 lbs. pressure applications.
  • Allows for easy installation and maintenance of piping systems.
  • Manufactured to ASME B16.15 and ASME B16.18 dimension standards.
Certifications
  • Approved by NSF 61 and NSF 372 for lead-free compliance and use in potable water systems.

Specifications

  • Body Material: Lead Free Brass (ASTM B584, Alloy C89833)
  • Fitting Type: Union
  • Nominal Pipe Size: 1 1/4 inches
  • Pressure Class: 125 lbs.
  • Thread Standard: ASME B1.20.1
  • Dimension Standards: ASME B16.15, ASME B16.18
  • Overall Length (Dimension A): 2.27 inches

Certificates & Approvals

  • NSF 61
  • NSF 372

FAQs

What material is this union made from?

This union is made from lead-free brass, specifically ASTM B584, Alloy C89833. This material ensures it is safe for use in potable water applications.

What is the nominal pipe size of this brass union?

This specific lead-free brass union is designed for a nominal pipe size of 1 1/4 inches.

What are the primary uses for a lead-free brass union?

Lead-free brass unions are primarily used to connect two pipes or fittings, allowing for easy disconnection and reassembly of the piping system without needing to rotate the pipes. They are especially suitable for potable water systems due to their lead-free composition.

Does this union meet any specific certifications for drinking water?

Yes, this lead-free brass union is approved to NSF 61 and NSF 372 standards, making it safe for use in potable water (drinking water) applications.

What pressure class is this union rated for?

This lead-free brass union is rated for Class 125 lbs. applications, indicating its suitability for moderate pressure systems.
