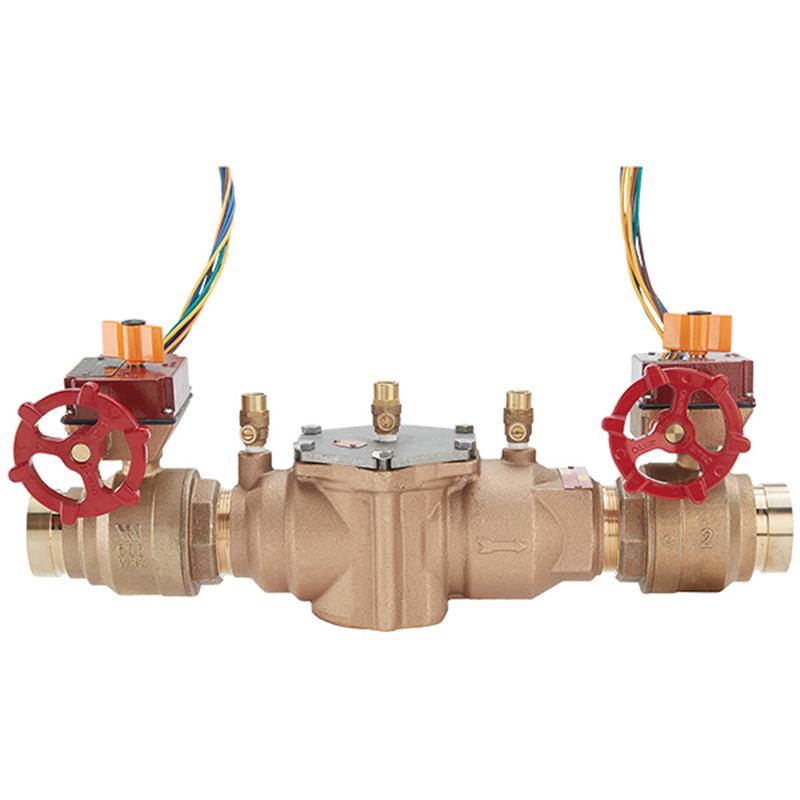

1 1/4 LF2000BM2-FP - GV

Item Number: 88007255
1 1
$3,406.49
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Nominal Size: 1 1/4 inch
  • Weight: 17.4 lb
  • Body Material: Lead Free Bronze
  • End Connections: Grooved
  • Maximum Working Pressure: 175 PSI
  • Temperature Range: 33°F - 140°F
  • Gear Operated Slow Close Isolation Valves
  • Two Pre-wired Tamper Switches
  • ASSE 1015 Listed

Description

This 1 1/4 inch Lead Free Bronze Double Check Valve Backflow Preventer Assembly with grooved ends prevents reverse flow of contaminated non-potable water into the potable water supply. Designed for non-health hazard cross-connections, it features a lead free bronze body, gear operated slow close isolation valves, and two pre-wired tamper switches. Its compact, modular design with a single top-entry access cover allows for easy maintenance. Approved for both horizontal and vertical installations, it operates up to 175 PSI within a 33°F to 140°F temperature range. This assembly meets ASSE 1015 and AWWA C510 standards.

Help Me Connect

This 1 1/4 inch double check valve backflow preventer assembly features grooved end connections for secure and reliable installation into existing piping systems.

It is designed for use in cross-connection applications to prevent backflow of non-potable water into the potable supply.

View full details

Additional Details

This 1 1/4 inch Lead Free Bronze Double Check Valve Backflow Preventer Assembly is designed to prevent the reverse flow of contaminated water into the potable water supply.

It is ideal for protecting cross-connections identified as non-health hazard applications, ensuring compliance with national plumbing codes and water authority requirements.

Construction & Design

  • Features a Lead Free bronze body with a compact and modular design.
  • Equipped with gear operated slow close isolation valves and two pre-wired tamper switches.
  • Includes two positive seating check modules and top mounted ball valve type test cocks.
  • Low pressure drop for efficient operation.

Maintenance & Installation

  • Ease of maintenance with only one top entry access cover.
  • Replaceable seats and seat discs for extended service life.
  • No special tools are required for servicing.
  • Approved for both horizontal and vertical installations.

Specifications

General

  • Product Type: Double Check Valve Backflow Preventer Assembly
  • Nominal Size: 1 1/4 inch
  • Body Material: Lead Free Bronze
  • End Connections: Grooved
  • Isolation Valves: Gear Operated Slow Close
  • Test Cocks: Top Mounted Ball Valve Type
  • Tamper Switches: Two Pre-wired

Performance

  • Maximum Working Pressure: 175 PSI (12.06 BAR)
  • Temperature Range: 33°F - 140°F (0.5°C - 60°C)
  • Installation Orientation: Horizontal and Vertical
  • Check Modules: Two Positive Seating

Certificates & Approvals

  • ASSE 1015 Listed
  • UL Classified (US & Canada)
  • IAPMO/CUPC
  • AWWA Standard C510 Compliant
  • CSA B64.5
  • NFPA Compliant: 13, 14, 15, 16, 20, 22 & 24
  • Approved by: Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR-USC)

FAQs

What is the primary purpose of this backflow preventer?

This 1 1/4 inch Lead Free Bronze Double Check Valve Backflow Preventer Assembly is designed to prevent the reverse flow of polluted water from non-potable sources into the potable water supply, protecting against backsiphonage and backpressure.

What type of connections does this assembly have?

This assembly features grooved end connections, designed for secure and reliable installation into compatible piping systems.

What are the key materials used in its construction?

The assembly is constructed with a Lead Free bronze body. Internal components include replaceable seats and seat discs, and resilient seated test cocks.

What are the operating pressure and temperature limits?

This backflow preventer has a maximum working pressure of 175 PSI (12.06 BAR) and operates within a temperature range of 33°F to 140°F (0.5°C to 60°C).

Is this backflow preventer approved for both horizontal and vertical installations?

Yes, the compact modular design of this assembly is approved for both horizontal and vertical "Flow-Up" installations, offering installation flexibility.
