1 1/4 LF650A

Item Number: 0122978
1 1
$206.62
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • Size: 1 1/4 inch
  • Weight: 11.2 lb
  • Lead Free Construction
  • Body Material: Cast Copper Silicon Alloy
  • Screen Material: 304 Stainless Steel
  • Screen Mesh: 20 Mesh
  • Connections: Female NPT
  • Maximum Working Pressure: 400 psi WOG @ 210°F
  • Includes tapped retainer cap with closure plug

Description

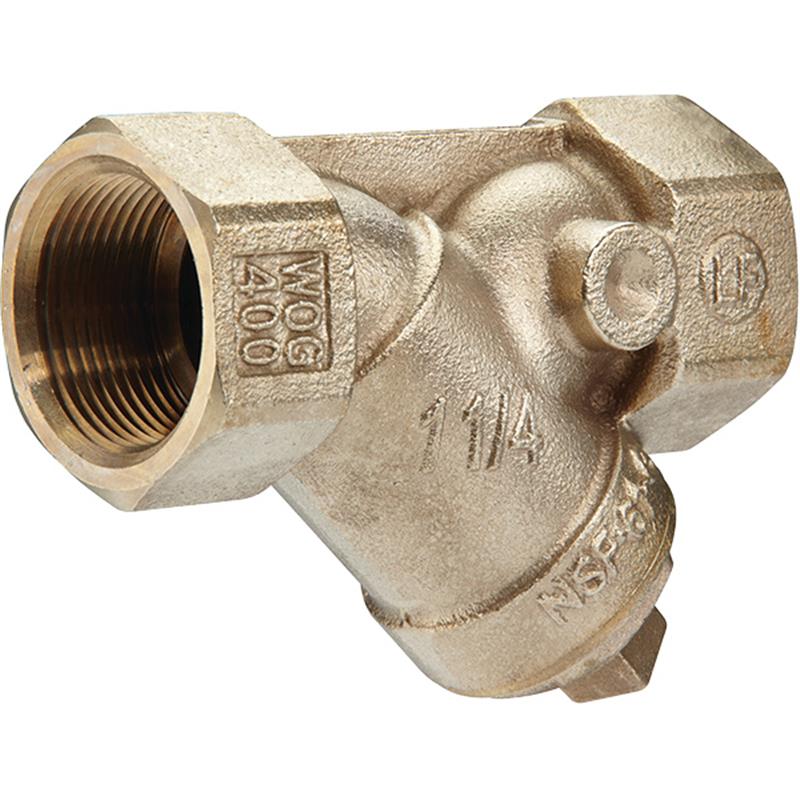

The FEBCO Series LF650A 1 1/4 inch Lead Free Y-strainer protects sensitive equipment like backflow preventers from pipeline foreign material. Constructed from cast copper silicon alloy with a 20 mesh 304 stainless steel screen, it ensures clean flow. This lead-free strainer features female NPT connections and a tapped retainer cap with a closure plug for easy maintenance. It handles a maximum working pressure of 400 psi WOG at 210°F, complying with lead-free installation requirements for various water piping applications.

Help Me Connect

Connections

This 1 1/4 inch LF650A Y-strainer is designed with female NPT threaded end connections for both the inlet and outlet. It connects directly to 1 1/4 inch male NPT threaded pipe or fittings. Ensure proper thread sealant is used during installation to prevent leaks.

Compatibility

The strainer is suitable for installation in water piping systems to protect downstream equipment such as backflow preventers from debris. Its lead-free construction makes it appropriate for various water applications where lead content is regulated.

View full details

Additional Details

The FEBCO Series LF650A is a 1 1/4 inch Lead Free Y-strainer designed for installation in water piping systems. Its primary use is to protect expensive equipment, such as backflow preventers, from damage or failure caused by foreign material in the pipeline.

This strainer features Lead Free construction to comply with installation requirements, making it suitable for applications where lead content is a concern.

Features

  • Includes a tapped retainer cap with closure plug for convenient blow-down.
  • Equipped with a 304 stainless steel screen to filter foreign material.
  • Features recessed screen seats for accurate screen alignment.
  • Constructed with a lead free cast copper silicon alloy body and cap.

Specifications

  • Body Material: Cast copper silicon alloy
  • Cap/Cover Material: Cast copper silicon alloy
  • Screen Material: 304 stainless steel
  • Screen Mesh: 20 Mesh
  • Connection Type: Female NPT
  • Nominal Size: 1 1/4 inch (32mm)
  • Maximum Working Pressure (WOG): 400 psi (27.6 bar) @ 210°F (99°C)
  • Maximum Working Pressure (WSP): 125 psi (8.6 bar) @ 353°F (178°C)
  • Lead Content: Less than 0.25% by weight (wetted surface)

FAQs

What is the primary purpose of the FEBCO Series LF650A Y-strainer?

The primary purpose is to protect expensive equipment, such as backflow preventers, within water piping systems from damage or failure caused by foreign material or debris in the pipeline.

What materials are used in the construction of this Y-strainer?

The body and cap/cover are made from cast copper silicon alloy, while the screen is constructed from 304 stainless steel with a 20 mesh.

What type of connections does the 1 1/4 inch LF650A Y-strainer feature?

This strainer is equipped with 1 1/4 inch female NPT threaded end connections for both the inlet and outlet, ensuring compatibility with standard NPT plumbing.

What is the maximum working pressure for this strainer?

The maximum working pressure is 400 psi WOG (Water, Oil, Gas) at 210°F (99°C), and 125 psi WSP (Working Steam Pressure) at 353°F (178°C).

Is this strainer suitable for potable water applications?

Yes, it features Lead Free construction, meaning the wetted surface contains less than 0.25% lead by weight, making it compliant with lead-free installation requirements for consumable water systems.
