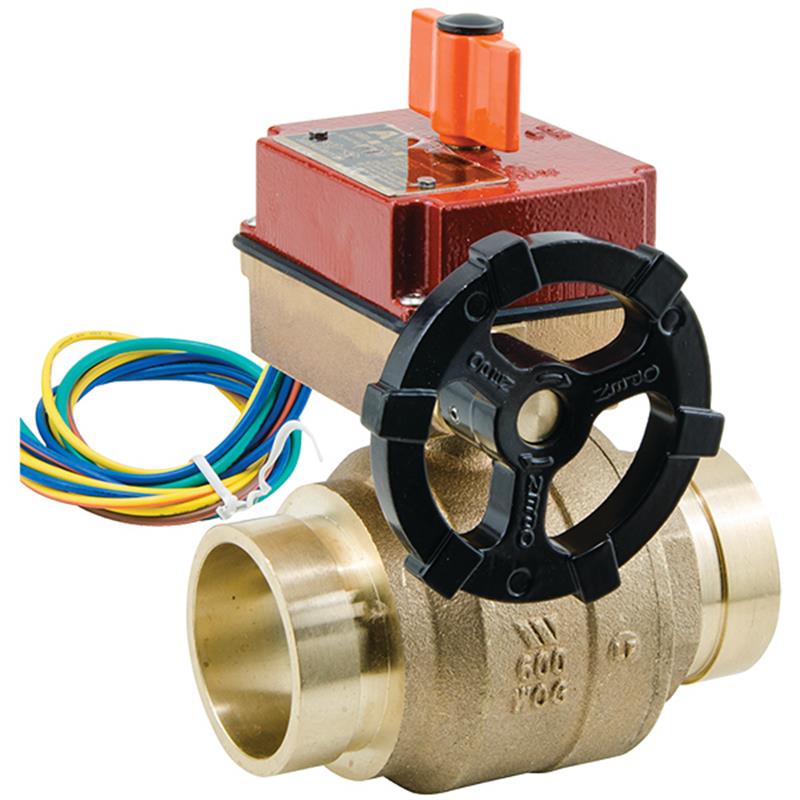

1 1/4 LFAFBV-E-FP-T

Item Number: 88005718
1 1
$699.75
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Size: 1 1/4 inch
  • Weight: 27.1 lb
  • Lead Free: Yes (less than 0.25% lead in wetted surfaces)
  • Connection Type: Female NPT Threaded Ends
  • Operating Type: Gear Operated Ball Valve
  • Max UL/FM Rated Working Pressure: 400psi
  • Integrated Supervisory Switches: Yes (reversible switch box)
  • Slow-Close Operation: Eliminates water hammer
  • Body Material: Lead Free Copper-Silicon Alloy

Description

The 1 1/4 inch Lead Free Gear Operated Ball Valve with NPT threaded ends is a full-port, two-piece bronze body valve designed for fire suppression systems. UL/FM rated for 400 psi, this valve features slow-close operation to prevent water hammer and integrated supervisory switches with a reversible switch box for flexible wiring. Its lead-free copper-silicon alloy construction, chrome-plated brass ball, and PTFE seats ensure reliable, positive shut-off and compliance with industry standards. Suitable for indoor and outdoor applications, it includes a mechanical indicator flag and a side port tap. Item number 88005718.

Help Me Connect

Connections

  • The 1 1/4 inch female NPT threaded ends are designed to connect to 1 1/4 inch male NPT threaded pipes or fittings.
  • This valve is approved for use with Schedule 40 pipe.
View full details

Additional Details

This 1 1/4 inch full port gear operated ball valve is UL/FM rated for use in fire suppression systems, designed for slow open and slow closing operation to eliminate water hammer.

Key Features

  • 2-piece lead free construction for safe and compliant operation
  • Integrated supervisory switches with a reversible switch box for simplified electrical wiring access
  • Can be wired as either Normally Open or Normally Closed
  • Slow open and slow closing operation effectively eliminates water hammer
  • Features a mechanical indicator flag for clear visual status
  • Gear operated quarter-turn operation with a clockwise-to-close ergonomic handle design
  • Includes two standard internal tamper switches
  • Complies with NFPA 13 Section 6.7.1

Connections

  • Equipped with female NPT threaded ends for secure installation
  • Includes a side port tap

Specifications

  • Valve Body Material: Lead Free Copper-Silicon Alloy
  • Ball Material: Chrome Plated Brass
  • Seat Material: Virgin PTFE
  • Stem Material: Brass
  • Stem Packing: Virgin PTFE
  • Stem O-Ring: EPDM
  • Box/Cover Material: Bronze ASTM B584 Alloy 844
  • Yoke Material: LEAD-FREE Copper Silicon Alloy
  • Screw Material: Brass
  • Traveler Nut Material: Brass

Performance Ratings

  • Maximum UL/FM Rated Working Pressure: 400psi (27.6 bar)
  • Maximum Work Pressure (WOG): 600psi (41.4 bar)
  • Hydrostatic Test Pressure: 900psi (62.0 bar)
  • Temperature Range: 33°F - 180°F (0.5°C - 82°C)

Connections

  • Connection Type: Female NPT threaded ends

Certificates & Approvals

  • UL Listed
  • FM Approved
  • NSF Certified to NSF/ANSI 372
  • NFPA Compliant (11, 13, 14, 15, 16, 20, 22, and 24)

FAQs

What is the primary use of this 1 1/4 inch ball valve?

This 1 1/4 inch full port gear operated ball valve is primarily designed for use in fire suppression systems. Its slow-close operation helps eliminate water hammer.

What does 'Lead Free' mean for this valve?

The 'Lead Free' designation means that the wetted surface of this product, which contacts consumable water, contains less than 0.25% of lead by weight, ensuring compliance with relevant state codes and standards.

What type of connections does this valve have?

This valve features 1 1/4 inch female NPT (National Pipe Taper) threaded ends, which are standard for many piping systems, especially in fire protection applications.

What is the maximum pressure rating for this valve?

This valve is UL/FM rated for a maximum working pressure of 400 psi (27.6 bar) for fire protection service. Its maximum work pressure (WOG) is 600 psi.

What are the integrated supervisory switches for?

The integrated supervisory switches, with their reversible switch box, allow for electrical monitoring of the valve's position. They can be wired as either normally open or normally closed, simplifying electrical wiring access.
