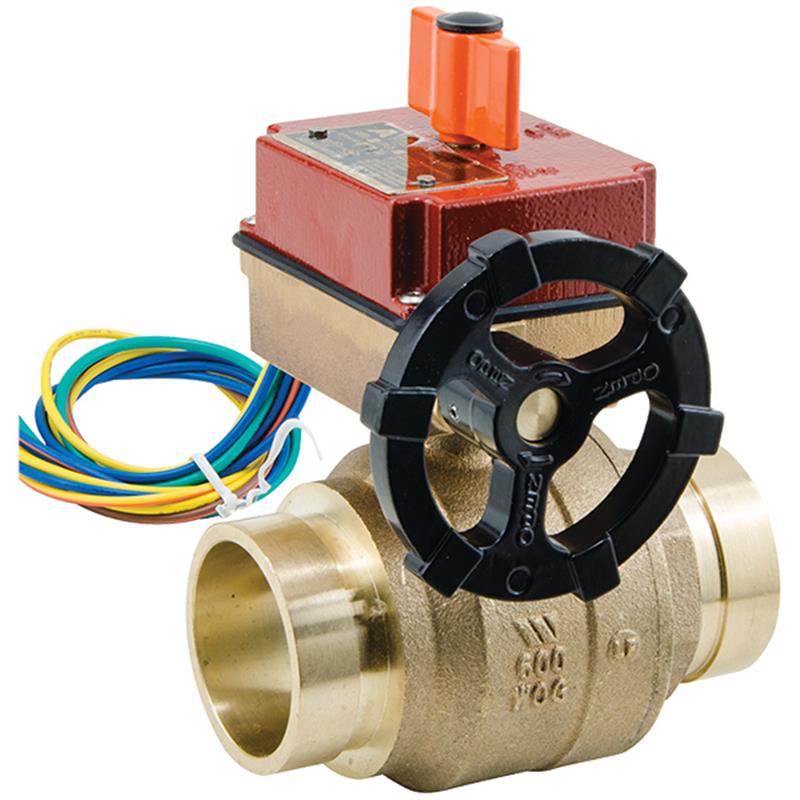

1 1/4 LFAFBV-FP-G

Item Number: 88005714
1 1
$690.38
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Valve Size: 1 1/4 inch
  • Weight: 29.0 lb
  • Connections: Grooved Ends
  • UL/FM Rated Working Pressure: 400 psi
  • Lead Free Copper-Silicon Alloy Body
  • Integrated Supervisory Switches
  • Slow Open/Slow Close Operation
  • Rated for Indoor and Outdoor Use
  • Conforms to NFPA 13 Section 6.7.1

Description

This AMES LFAFBV-FP-G is a 1 1/4 inch lead-free, full port gear operated ball valve specifically designed for fire suppression systems. UL/FM rated for 400 psi service, it features grooved ends for secure connections and integrated supervisory switches for system monitoring. Its two-piece copper silicon alloy body and chrome-plated brass ball ensure durability and lead-free compliance. The slow-close operation helps prevent water hammer, making it ideal for both indoor and outdoor fire protection applications requiring reliable flow control and system supervision. NSF/ANSI 372 certified.

Help Me Connect

This 1 1/4 inch ball valve features grooved ends, designed for quick and secure connection into fire protection systems utilizing grooved piping systems. It is compliant with AWWA C606 standards for grooved end connections.

View full details

Additional Details

This 1 1/4 inch full port gear operated ball valve is UL/FM rated for use in fire suppression systems. It features 2-piece lead free construction with grooved ends and integrated supervisory switches.

Key Features

  • Slow open and slow closing operation helps to eliminate water hammer.
  • Can be wired as either Normally Open or Normally Closed for versatile control.
  • Reversible supervisory switch box simplifies electrical wiring access and installation.
  • Features gear operated quarter-turn operation with a clockwise-to-close ergonomic handle.
  • Equipped with standard internal tamper switches (2) and a mechanical indicator flag.
  • Designed for indoor and outdoor use.
  • Conforms to NFPA 13 Section 6.7.1.

The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight, complying with lead-free requirements.

Specifications

Valve Specifications

  • Valve Size: 1 1/4 inch
  • Valve Type: Full Port Gear Operated Ball Valve
  • Body Construction: 2-Piece
  • Body Material: Lead Free Copper-Silicon Alloy
  • Ball Material: Chrome Plated Brass
  • Seat Material: Virgin PTFE
  • Stem Material: Brass
  • Stem Packing: Virgin PTFE
  • Stem O-Ring: EPDM
  • Connections: Grooved x Grooved (Compliant to AWWA C606)
  • Operation: Quarter-turn, Gear Operated
  • Handle: Clockwise-to-close, Ergonomic Design

Performance Ratings

  • Maximum UL/FM Rated Working Pressure: 400 psi (27.6 bar)
  • Maximum General Work Pressure (WOG): 600 psi (41.4 bar)
  • Hydrostatic Test Pressure: 900 psi (62.0 bar)
  • Temperature Range: 33°F - 180°F (0.5°C - 82°C)

Switch Specifications

  • Integrated Tamper Switches: Yes (2)
  • Wiring Options: Normally Open or Normally Closed
  • Electrical Access: Reversible Supervisory Switch Box
  • Position Indication: External Mechanical Flag

Approvals & Standards

  • UL Listed
  • FM Approved
  • NSF Certified: NSF/ANSI 372 (Lead Free)
  • NFPA Compliant: 11, 13, 14, 15, 16, 20, 22, 24
  • Conforms to: NFPA 13 Section 6.7.1

FAQs

What is the primary use of this 1 1/4 inch LFAFBV-FP-G ball valve?

This ball valve is primarily used in fire suppression systems, where it provides reliable flow control and system supervision with its UL/FM rating.

What type of connections does this valve utilize?

This valve features 1 1/4 inch grooved ends, designed for secure and compliant connection with grooved piping systems (AWWA C606).

What is the maximum working pressure rating for this valve?

The valve is UL/FM rated for a maximum working pressure of 400 psi (27.6 bar) in fire protection service. It has a general maximum work pressure (WOG) of 600 psi (41.4 bar).

Does this ball valve include supervisory switches?

Yes, it includes two integrated supervisory position switches with a reversible switch box, allowing for wiring as either Normally Open or Normally Closed.

What "lead-free" standard does this product meet?

This valve is constructed with a Lead-Free cast copper silicon alloy body, and its wetted surfaces contain less than 0.25% lead by weight, complying with NSF/ANSI 372 certification.
