1 1/4 LFAFBV-FP-T

Item Number: 88005717
1 1
$676.87
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Nominal Size: 1 1/4 inch
  • Weight: 26.0 lb
  • End Connections: NPT Threaded Female
  • Maximum UL/FM Pressure: 400 psi
  • Lead Free Construction: Less than 0.25% lead
  • Integrated Supervisory Switches: Yes (2)
  • Gear Operated: Quarter-turn
  • UL Listed and FM Approved
  • Temperature Range: 33°F to 180°F

Description

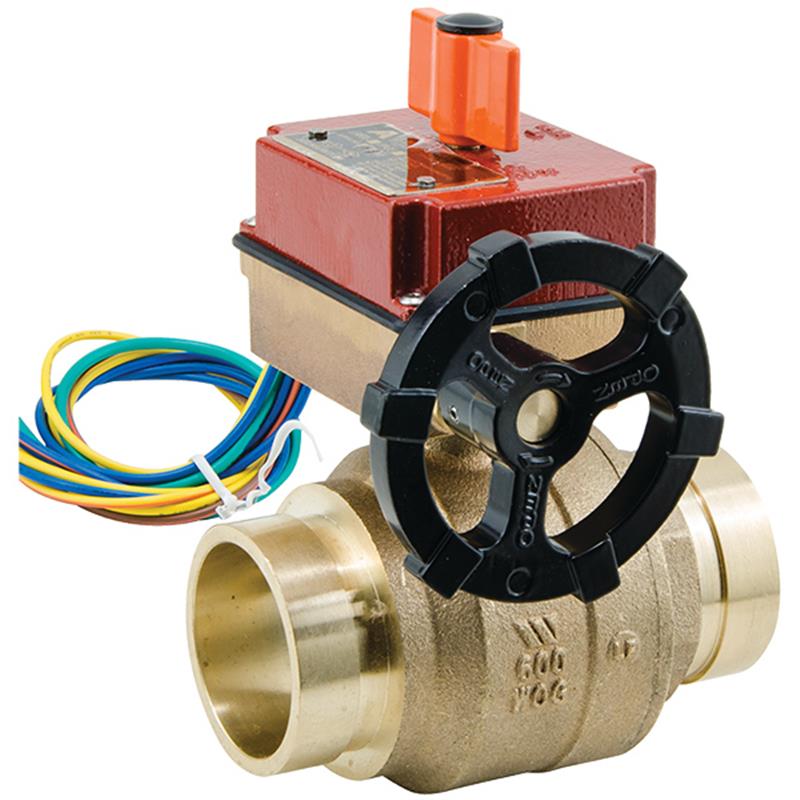

This 1 1/4 inch AMES LFAFBV-FP-T full port, lead-free gear-operated ball valve is UL/FM rated for 400 psi in fire protection systems. Designed with slow open and slow close features to eliminate water hammer, it includes integrated supervisory switches configurable for Normally Open or Normally Closed operation. Its durable 2-piece copper silicon alloy body, chrome-plated brass ball, and PTFE seats ensure reliable performance. The valve features female NPT threaded ends and is suitable for both indoor and outdoor fire suppression applications. Item number 88005717.

Help Me Connect

End Connections

The 1 1/4 inch female NPT threaded ends on this ball valve are designed for connection to 1 1/4 inch male NPT threaded Schedule 40 pipe. Ensure compatibility with your existing piping system before installation.

Electrical Wiring

This valve features a reversible supervisory switch box that simplifies electrical wiring access. It can be wired to operate as either Normally Open or Normally Closed, depending on the requirements of your fire suppression system.

View full details

Additional Details

This 1 1/4 inch full port gear operated ball valve is UL/FM rated for use in fire suppression systems. It features 2-piece lead free construction, integrated supervisory switches, and female NPT threaded ends, suitable for indoor and outdoor applications.

Features

  • Slow open and slow closing eliminates water hammer
  • Can be wired as either Normally Open or Normally Closed
  • Reversible supervisory switch box simplifies electrical wiring access
  • Gear operated quarter-turn operation for precise control
  • Standard internal tamper switches (2)
  • Conforms to NFPA 13 Section 6.7.1
  • Threaded NPT end connections
  • Clockwise-to-close handle with ergonomic design

Specifications

General

  • Product Type: 2-Piece, Full Port, Gear Operated Ball Valve
  • Nominal Size: 1 1/4 inch
  • End Connection Type: NPT Threaded (Female)
  • Construction: 2-Piece
  • Lead Content: Less than 0.25% by weight (Lead Free*)
  • Operation: Gear Operated Quarter-Turn
  • Handle: Clockwise-to-close, Ergonomic Design

Materials

  • Valve Body: Lead Free Copper-Silicon Alloy
  • Ball: Chrome Plated Brass
  • Seats: Virgin PTFE
  • Stem: Brass
  • Stem Packing: Virgin PTFE
  • Stem O-Ring: EPDM
  • Box/Cover: Bronze ASTM B584 Alloy 844
  • Yoke: LEAD-FREE Copper Silicon Alloy
  • Screw: Brass
  • Traveler Nut: Brass

Performance

  • Maximum UL/FM Rated Working Pressure: 400 psi (27.6 bar)
  • Maximum Work Pressure (WOG): 600 psi (41.4 bar)
  • Hydrostatic Test Pressure: 900 psi (62.0 bar)
  • Temperature Range: 33°F - 180°F (0.5°C - 82°C)

Electrical & Control

  • Integrated Tamper Switches: 2 (Standard Internal)
  • Switch Box: Reversible Supervisory
  • Wiring Options: Normally Open or Normally Closed
  • 125 VAC Resistive Rating: 10.1A
  • 125 VAC Lamp Rating: 1.5A
  • 250 VAC Resistive Rating: 10.1A
  • 250 VAC Lamp Rating: 1A
  • 30 VDC Resistive Rating: 0.4A
  • 30 VDC Lamp Rating: 2A
  • 250 VDC Resistive Rating: 0.2A
  • 250 VDC Lamp Rating: 0.03A

Certificates & Approvals

  • UL Listed
  • FM Approved
  • NSF Certified to NSF/ANSI 372
  • Conforms to NFPA 13 Section 6.7.1
  • NFPA Compliant: 11, 13, 14, 15, 16, 20, 22, 24

FAQs

What is the primary use of this ball valve?

This ball valve is primarily used in fire suppression systems, being UL/FM rated for 400 psi service. It is suitable for both indoor and outdoor applications.

What type of end connections does this valve have?

This valve features 1 1/4 inch female NPT threaded ends, designed for connection to male NPT threaded Schedule 40 pipe.

What does "lead-free" mean for this product?

The term "lead-free" indicates that the wetted surface of this product contains less than 0.25% of lead by weight, complying with reduced lead content standards.

How do the supervisory switches work?

The valve includes two integrated supervisory position switches with a reversible switch box, allowing it to be wired as either Normally Open or Normally Closed for monitoring the valve's status within your system.

What is the maximum operating pressure for this valve?

This valve has a maximum UL/FM rated working pressure of 400 psi (27.6 bar) and a maximum work pressure (WOG) of 600 psi (41.4 bar).
