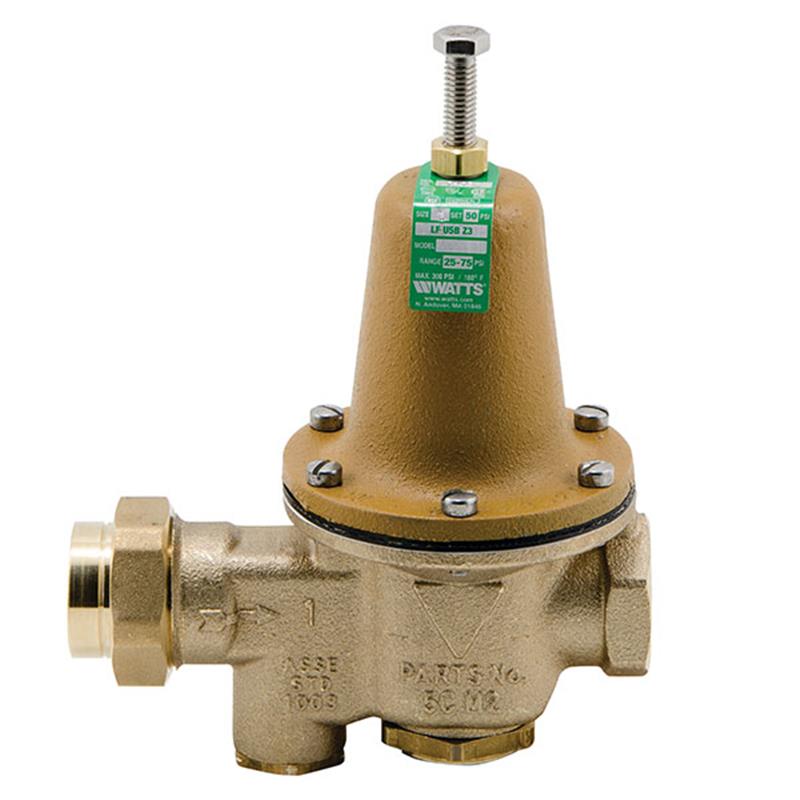

1 1/4" Watts LFU5B-Z3 Pressure Reducing Valve

Item Number: 0009180
1 1
$4,214.25
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Watts
  • Size: 1 1/4 inch
  • Weight: 47.1 lb
  • Lead Free* cast copper silicon alloy body construction
  • Adjustable Reduced Pressure Range: 25-75 psi
  • Maximum Working Pressure: 300 psi
  • Temperature Range: 33°F - 180°F
  • NPT Female Union inlet x NPT Female outlet
  • Serviceable in line without special tools
  • Bypass feature for thermal expansion pressure

Description

The 1 1/4 inch Watts LFU5B-Z3 is a Lead Free Water Pressure Reducing Valve designed to protect plumbing systems and reduce water consumption in commercial, industrial, and residential settings. Constructed from lead-free cast copper silicon alloy, it features NPT female union inlet and NPT female outlet connections. The valve offers an adjustable pressure range of 25-75 psi, with a standard setting of 50 psi, and can handle a maximum working pressure of 300 psi. Its bypass feature manages thermal expansion pressure, and the unit is serviceable in-line for easy maintenance. Item number 0009180.
View full details

Additional Details

This 1 1/4 inch Watts LFU5B-Z3 Lead Free Water Pressure Reducing Valve is designed to reduce incoming water pressure to a sensible level, protecting plumbing system components and reducing water consumption in commercial, industrial, and residential applications.

Key Features

  • Features Lead Free* construction to comply with installation requirements.
  • Bypass feature permits flow of water back through the valve into the main when pressures due to thermal expansion exceed the main supply pressure.
  • Includes a Z3 sealed spring cage and stainless steel corrosion resistant adjusting cage screws for accessible outdoor or pit installations.
  • Equipped with an integral stainless steel strainer that is easily removable for cleaning.
  • Designed for in-line serviceability, allowing parts to be replaced without removing the valve from the line and without special tools.
  • High temperature resistant reinforced diaphragm for hot water.
  • Replaceable seat module for easy maintenance.

Connections

  • Inlet: 1 1/4 inch NPT Female Union thread.
  • Outlet: 1 1/4 inch NPT Female thread.

Specifications

  • Body Material: Lead Free* cast copper silicon alloy
  • Seat Material: Replaceable stainless steel
  • Integral Strainer Material: Stainless steel
  • Diaphragm Material: Reinforced EPDM
  • Valve Disc Material: EPDM
  • Yoke Material: Lead Free* cast copper silicon alloy

Performance

  • Maximum Working Pressure: 300 psi (20.7 bar)
  • Adjustable Reduced Pressure Range: 25-75 psi (172-517 kPa)
  • Standard Reduced Pressure Setting: 50 psi (345 kPa)
  • Temperature Range: 33°F - 180°F (0.5°C – 82°C)

Connections

  • Inlet Connection: 1 1/4 inch NPT Female Union
  • Outlet Connection: 1 1/4 inch NPT Female

Certificates & Approvals

  • ASSE Standard 1003
  • ANSI A112.26.2
  • CSA Standard B356
  • IAPMO Listed
  • Southern Standard Plumbing Code
  • NSF/ANSI 61-G Certified

FAQs

What is the primary function of the Watts LFU5B-Z3 valve?

The Watts LFU5B-Z3 valve is designed to reduce incoming water pressure to a manageable level, protecting plumbing system components from high pressure and helping to reduce water consumption.

What type of connections does this valve have?

This valve features a 1 1/4 inch NPT Female Union inlet and a 1 1/4 inch NPT Female outlet, making it suitable for threaded pipe connections.

What is the adjustable pressure range for this valve?

The adjustable reduced pressure range for this valve is 25-75 psi (172-517 kPa), with a standard factory setting of 50 psi (345 kPa).

Is this valve suitable for hot water applications?

Yes, the valve features a high temperature resistant reinforced diaphragm and has a temperature range of 33°F - 180°F (0.5°C – 82°C), making it suitable for hot water.

Can this valve be repaired without removing it from the plumbing line?

Yes, a key feature of the LFU5B-Z3 series is that all parts are quickly and easily serviceable without removing the valve from the line, and without requiring special tools.
