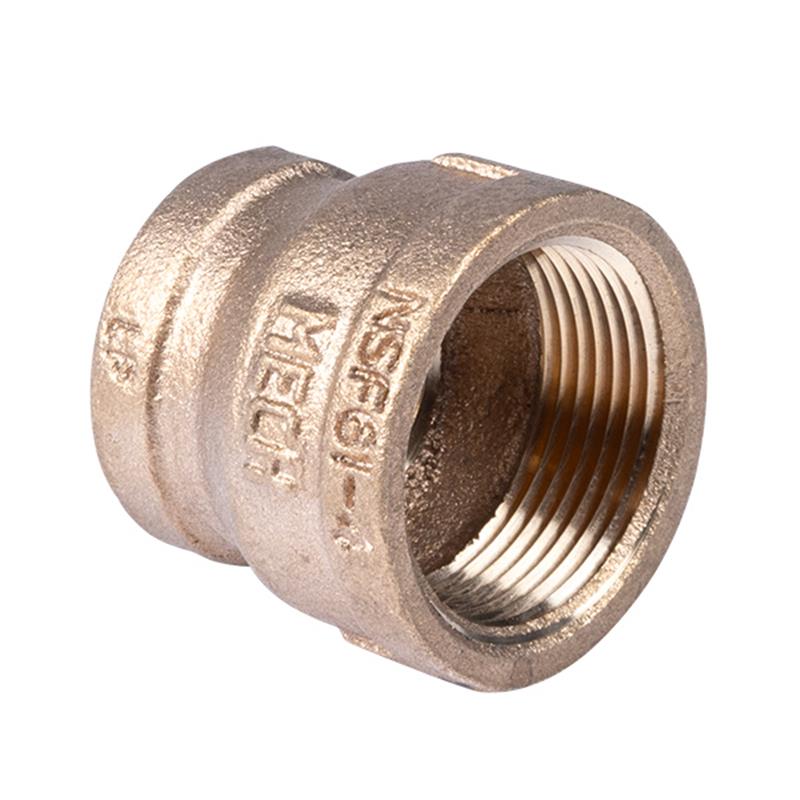

1 1/4" x 1" Lead Free Reducing Brass Coupling

Item Number: 15432
Skip to product information
1 of 1
Regular price $27.59
In Stock (10)
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Brand - Matco-Norca

  • Fitting Type: Reducing Coupling
  • Weight: 0.57 lb
  • Nominal Size: 1 1/4 inch x 1 inch
  • Material: Lead Free Brass (ASTM B584, Alloy C89833)
  • Threads: Female NPT, ASME B1.20.1
  • Overall Length: 1.77 inches
  • Class: 125 lbs.
  • Approved: NSF 61, NSF 372
  • Compliant: ASME B16.15, ASME B16.18

Description

The Matco-Norca 1 1/4" x 1" Lead Free Reducing Brass Coupling is a durable solution for safely transitioning between different pipe sizes in various plumbing and industrial applications. Crafted from ASTM B584 Alloy C89833 lead-free brass, this Class 125 lbs. fitting ensures compliance with potable water standards, holding NSF 61 and NSF 372 approvals. It features female NPT threads conforming to ASME B1.20.1, making it compatible with standard male NPT pipes. With an overall length of 1.77 inches, this coupling offers a compact and reliable connection, ideal for projects demanding high-quality, lead-free components.

Help Me Connect

How to Connect

  • This reducing coupling features 1 1/4 inch female NPT threads on one end and 1 inch female NPT threads on the other.
  • It is designed to connect to a 1 1/4 inch male NPT threaded pipe and a 1 inch male NPT threaded pipe, allowing for a direct and secure pipe size reduction.
  • Ensure all connections are properly sealed using appropriate thread sealant for leak-free performance.
View full details

Collapsible content

Additional Details

The 1 1/4 inch x 1 inch Lead Free Reducing Brass Coupling is designed to securely connect two pipes of different diameters in plumbing and industrial systems. It is ideal for applications requiring a reduction in pipe size while maintaining a reliable, lead-free connection.
Material
  • Constructed from ASTM B584 Alloy C89833 lead-free brass, ensuring durability and compliance with potable water safety standards.
Connections
  • Features 1 1/4 inch female NPT threads on one end and 1 inch female NPT threads on the other, allowing for a secure reduction in pipe size.
  • Designed for use with male NPT threaded pipes.
Features
  • Lead-free construction suitable for drinking water applications.
  • Class 125 lbs. pressure rating, indicative of standard duty applications.
  • Compliant with ASME B16.15 and ASME B16.18 dimensions.
  • Threads conform to ASME B1.20.1 standard.
Certifications & Approvals
  • Approved by NSF 61 for drinking water system components.
  • Approved by NSF 372 for lead content compliance.

Specifications

  • Fitting Type: Reducing Coupling
  • Nominal Size (Female): 1 1/4 inch x 1 inch
  • Body Material: Lead Free Brass
  • Material Standard: ASTM B584, Alloy C89833
  • Thread Standard: ASME B1.20.1 (NPT)
  • Dimensional Standard: ASME B16.15, B16.18
  • Overall Length (A): 1.77 inches
  • Class: 125 lbs.

Certificates & Approvals

  • NSF 61
  • NSF 372

FAQs

What type of threads does this reducing coupling have?

This reducing coupling features female NPT (National Pipe Taper) threads. Specifically, it has a 1 1/4 inch female NPT on one end and a 1 inch female NPT on the other.

Is this fitting suitable for drinking water applications?

Yes, this fitting is made from lead-free brass (ASTM B584, Alloy C89833) and is approved by NSF 61 and NSF 372, making it safe for potable water systems.

What is the material of this coupling?

The coupling is constructed from lead-free brass, specifically conforming to ASTM B584, Alloy C89833 standards.

What does "Class 125 lbs." mean for this fitting?

"Class 125 lbs." refers to the pressure rating standard for this fitting, indicating it is suitable for standard duty applications typically found in plumbing and non-potable water systems, though in this case it is also rated for potable water.

What are the dimensions of this coupling?

This reducing coupling has an overall length (dimension A) of 1.77 inches. Its dimensions comply with ASME B16.15 and B16.18 standards.
