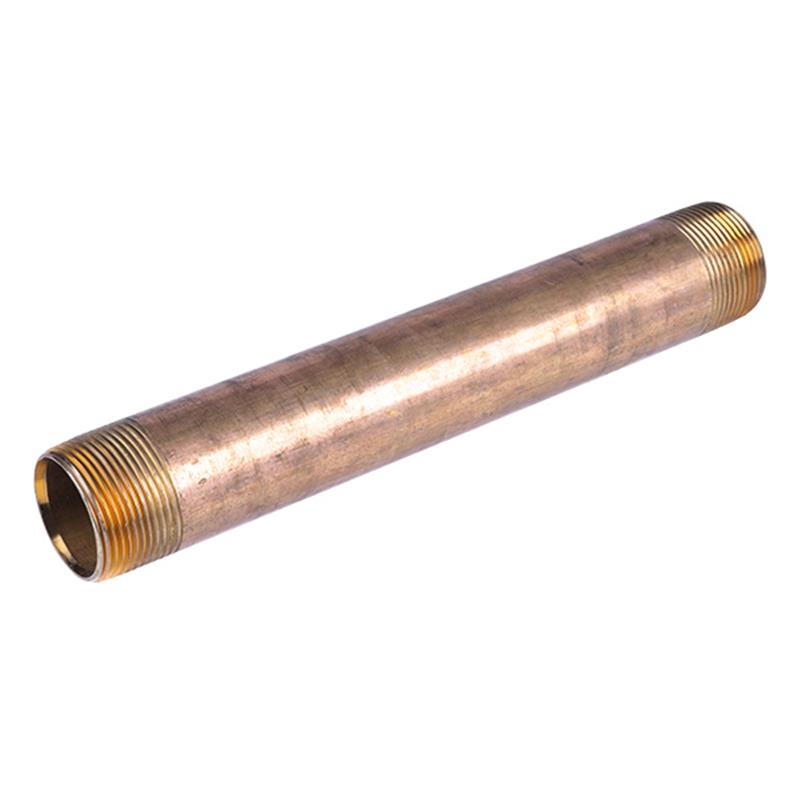

1 1/4" x 10" Lead Free Brass Nipple
Item Number: 6953
1
/
of
1
Regular price
$44.52
In Stock
(10)
Estimated transit time: 2 to 3 Business Days
Eligible for Express Shipping
Brand - Matco-Norca
Couldn't load pickup availability
- Pipe Size: 1 1/4 inch
- Weight: 2.22 lb
- Length: 10 inches
- Material: Lead Free Brass
- Schedule: 40
- Thread Standard: ASME B1.20.1
- Certified: NSF/ANSI61, NSF/ANSI372, CRN
- Lead Free: Conforms to ASTM B43
- Min. Wall Thickness: 0.138 inches
Description
Description
This 1 1/4 inch by 10 inch Lead Free Brass Nipple is a robust Schedule 40 pipe fitting designed for reliable plumbing and industrial connections. Constructed from lead free brass that conforms to ASTM B43, it is ideal for applications requiring safe water contact. The nipple features threads that meet ASME B1.20.1 standards, ensuring a secure fit. It is also NSF/ANSI61, NSF/ANSI372, and CRN certified, guaranteeing high quality and compliance. With a minimum wall thickness of 0.138 inches, this nipple offers durability and long-lasting performance in various systems. Item number 6953.

Collapsible content
Additional Details
This 1 1/4 inch x 10 inch Lead Free Brass Nipple is a durable Schedule 40 pipe fitting, designed for connecting two threaded pipes or fittings in various plumbing and industrial applications.
Construction & Compliance
- Manufactured from lead free brass conforming to ASTM B43 for material quality.
- Dimensions and ends conform to ASTM B687.
- Threads conform to ASME B1.20.1, ensuring reliable and secure connections.
- Meets NSF/ANSI61 and NSF/ANSI372 standards, making it suitable for potable water applications.
- CRN certified for additional safety and quality assurance.
Dimensions
- This nipple features a 1 1/4 inch nominal pipe size and a total length of 10 inches.
- With a Schedule 40 wall thickness, it offers robust performance for demanding systems.
Specifications
- Pipe Size: 1 1/4 inch
- Length: 10 inches
- Material: Lead Free Brass
- Schedule: 40
- Thread Standard: ASME B1.20.1
- Body Material Standard: ASTM B43
- Ends Standard: ASTM B687
- Overall Length (L): 10 inches
- Nominal Pipe Diameter (A): 1.368 inches
- Outside Diameter (B): 1.660 inches
- Thread Length (L1): 1.009 inches
- Minimum Wall Thickness (T): 0.138 inches
Certificates & Approvals
- NSF/ANSI61
- NSF/ANSI372
- CRN
FAQs
What is the material of this nipple?
This nipple is made from lead free brass, which conforms to ASTM B43 standards for material quality.
What are the exact dimensions of this product?
This is a 1 1/4 inch nominal pipe size nipple with an overall length of 10 inches. It has a nominal pipe diameter (A) of 1.368 inches and an outside diameter (B) of 1.660 inches.
Is this brass nipple suitable for potable water applications?
Yes, this nipple meets NSF/ANSI61 and NSF/ANSI372 standards, making it compliant and suitable for use in potable water systems.
What type of threading does this nipple have?
The nipple features threading that conforms to ASME B1.20.1, ensuring compatibility with standard pipe and fitting connections.
What is the pipe schedule of this nipple?
This is a Schedule 40 pipe nipple, indicating its wall thickness and suitability for various pressure applications.
