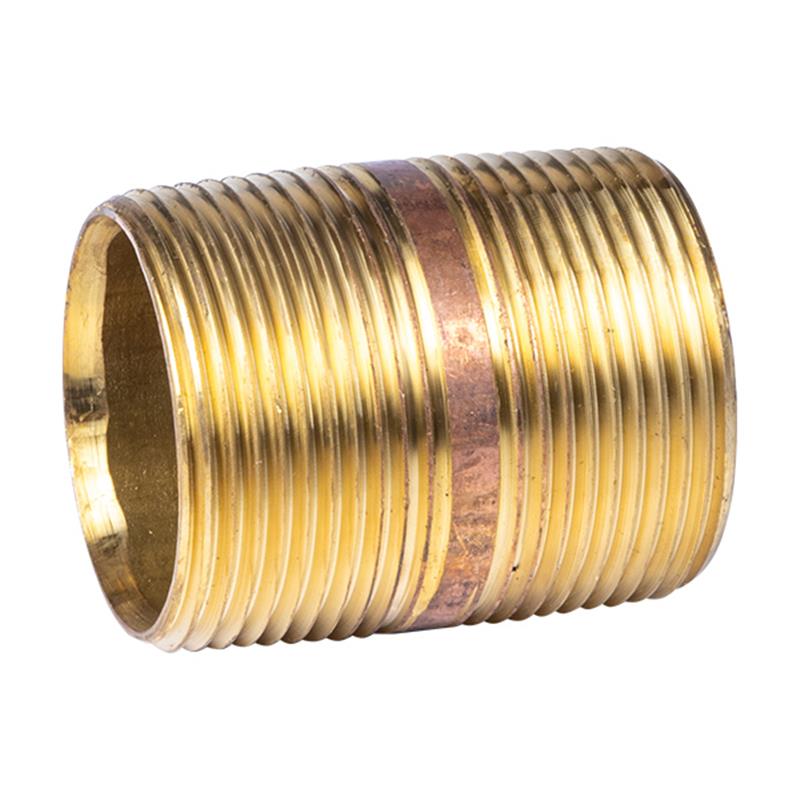

1 1/4" x 2" Lead Free Brass Nipple
Item Number: 7925
1
/
of
1
Regular price
$10.50
In Stock
(10)
Estimated transit time: 2 to 3 Business Days
Eligible for Express Shipping
Brand - Matco-Norca
Couldn't load pickup availability
- Size: 1 1/4 inch x 2 inch
- Weight: 0.44 lb
- Material: Lead Free Brass
- Schedule: Schedule 40
- Thread Standard: ASME B1.20.1
- Certified: NSF/ANSI61, NSF/ANSI372, CRN
- Conforms to: ASTM B43 and ASTM B687
- Overall Length: 2 inches
- Minimum Wall Thickness: 0.138 inches
Description
Description
This 1 1/4 inch x 2 inch lead free brass nipple is a robust fitting for plumbing and industrial systems. Constructed from Schedule 40 lead-free brass, it conforms to ASTM B43 and ASTM B687 standards, ensuring durability and consistent dimensions. The threads meet ASME B1.20.1 for reliable connections. It is certified to NSF/ANSI61, NSF/ANSI372, and CRN, making it suitable for potable water applications where lead-free compliance is critical. Ideal for various fluid transfer tasks, this nipple provides a secure and compliant connection point. Item number 7925.

Collapsible content
Additional Details
This is a 1 1/4 inch x 2 inch lead free brass nipple, engineered for reliable performance in various plumbing and industrial applications.
Construction & Standards
- Manufactured from lead free brass, conforming to ASTM B43.
- Dimensions and ends are designed to conform to ASTM B687 standards.
- Threads are precisely cut to conform to ASME B1.20.1, ensuring compatible connections.
- Meets rigorous certifications including NSF/ANSI61, NSF/ANSI372, and CRN.
- Features a Schedule 40 wall thickness for durability.
Specifications
- Nominal Pipe Size: 1 1/4 inch
- Overall Length (L): 2 inches
- Body Material: Lead Free Brass
- Schedule: Schedule 40
- Dimension A: 1.368 inches
- Dimension B: 1.660 inches
- Dimension L1: 0.707 inches
- Minimum Wall Thickness T(min.): 0.138 inches
Certificates & Approvals
- Meets: NSF/ANSI61
- Meets: NSF/ANSI372
- Meets: CRN
- Conforms to: ASTM B43
- Conforms to: ASTM B687
- Threads Conform to: ASME B1.20.1
FAQs
What material is this nipple made from?
This nipple is made from lead-free brass, ensuring safety for potable water applications and compliance with relevant health standards.
What are the exact dimensions of this nipple?
This nipple has a nominal pipe size of 1 1/4 inches and an overall length of 2 inches. Key dimensions include A: 1.368 inches, B: 1.660 inches, L1: 0.707 inches, and a minimum wall thickness of 0.138 inches.
Does this product meet lead-free requirements?
Yes, this lead-free brass nipple conforms to ASTM B43 and is certified to NSF/ANSI61 and NSF/ANSI372 standards, which are essential for lead-free compliance.
What thread standard does this brass nipple use?
The threads on this brass nipple conform to ASME B1.20.1, which is the standard for tapered pipe threads, ensuring compatibility with other NPT fittings.
What certifications does this nipple hold?
This nipple is certified to NSF/ANSI61, NSF/ANSI372, and CRN, indicating its suitability for specific potable water and regulatory applications.
