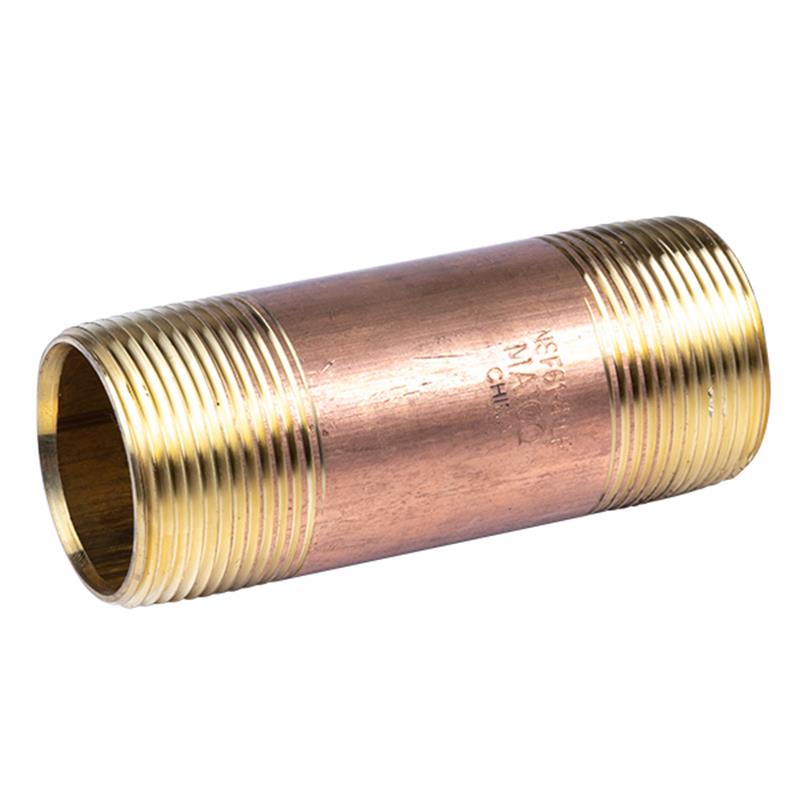

1 1/4" x 4" Lead Free Brass Nipple
Item Number: 9211
1
/
of
1
Regular price
$18.52
In Stock
(10)
Estimated transit time: 2 to 3 Business Days
Eligible for Express Shipping
Brand - Matco-Norca
Couldn't load pickup availability
- Size: 1 1/4 inch x 4 inches
- Weight: 0.89 lb
- Material: Lead Free Brass
- Pipe Schedule: Schedule 40
- Certified: NSF/ANSI61, NSF/ANSI372, CRN
- Thread Standard: ASME B1.20.1
- Conforms to ASTM B43 and ASTM B687
Description
Description
This 1 1/4 inch by 4 inch lead-free brass nipple provides a durable and compliant connection for a wide range of plumbing and industrial applications. Manufactured to Schedule 40 standards from lead-free brass, it conforms to ASTM B43 and B687 for reliable performance and fit. Its threads meet ASME B1.20.1 for secure connections. Certified by NSF/ANSI61, NSF/ANSI372, and CRN, this nipple is suitable for potable water and recognized for use in Canada, ensuring safety and quality. Item number 9211.
Help Me Connect
Help Me Connect
Connections
This 1 1/4 inch brass nipple features male NPT (National Pipe Taper) threads on both ends, conforming to ASME B1.20.1. It is designed to connect to female NPT threaded fittings or pipes of the same 1 1/4 inch nominal pipe size, creating a secure and leak-resistant seal. The tapered threads ensure a tight fit as they are wrenched together.

Collapsible content
Additional Details
This is a 1 1/4 inch by 4 inch lead-free brass nipple, designed for various plumbing and industrial applications where a durable and compliant connection is required.
Construction & Compliance
- Manufactured from lead-free brass, conforming to ASTM B43.
- Designed to Schedule 40 standards for strength and durability.
- Dimensions and ends conform to ASTM B687, ensuring consistent fit.
- Threads conform to ASME B1.20.1 for reliable sealing.
Certifications
- Meets NSF/ANSI61, NSF/ANSI372, and CRN standards, making it suitable for potable water applications and recognized in Canada.
Specifications
- Size: 1 1/4 inch
- Length: 4 inches
- Material: Lead Free Brass
- Pipe Schedule: Schedule 40
- Overall Diameter (B): 1.660 inches
- Inside Diameter (A): 1.368 inches
- Thread Length (L1): 1.009 inches
- Minimum Wall Thickness (T): 0.138 inches
Standards & Approvals
- Material Standard: ASTM B43
- Dimensional Standard: ASTM B687
- Thread Standard: ASME B1.20.1
Certificates & Approvals
- NSF/ANSI61 Certified
- NSF/ANSI372 Certified
- CRN Recognized
FAQs
What material is this nipple made from?
This nipple is manufactured from lead-free brass, ensuring it is safe for various applications, including potable water systems.
What are the dimensions of this brass nipple?
This is a 1 1/4 inch nominal pipe size nipple with a total length of 4 inches. Its inside diameter is 1.368 inches and the overall outside diameter is 1.660 inches.
Is this nipple suitable for potable water applications?
Yes, this lead-free brass nipple meets NSF/ANSI61 and NSF/ANSI372 certifications, making it safe and approved for use in potable water systems.
What type of threads does this nipple have?
This nipple features male NPT (National Pipe Taper) threads on both ends, which conform to ASME B1.20.1 for reliable and secure connections.
What is "Schedule 40" in relation to this product?
Schedule 40 refers to the wall thickness of the pipe, indicating a standard for the nipple's strength and pressure rating. A Schedule 40 rating means it has a robust wall thickness suitable for common pressure applications.
