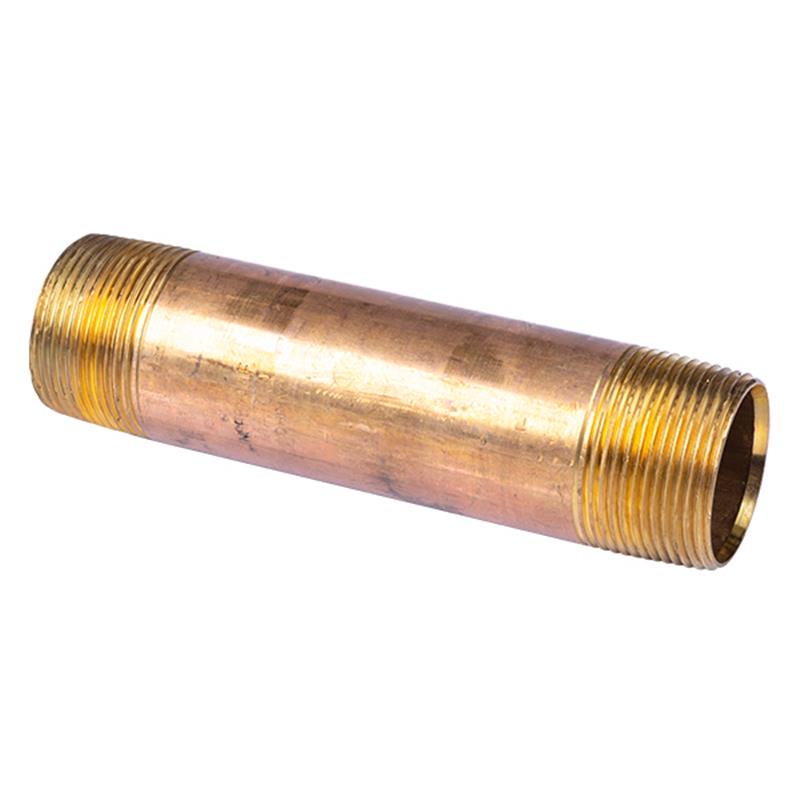

1 1/4" x 6" Lead Free Brass Nipple
Item Number: 10551
1
/
of
1
Regular price
$26.98
In Stock
(10)
Estimated transit time: 2 to 5 Business Days
Eligible for Express Shipping
Brand - Matco-Norca
Couldn't load pickup availability
- Pipe Size: 1 1/4 inch
- Weight: 1.33 lb
- Length: 6 inches
- Material: Lead Free Brass
- Schedule: 40
- Meets NSF/ANSI61 for potable water
- Meets NSF/ANSI372 for low lead content
- CRN approved
- Threads conform to ASME B1.20.1
Description
Description
This 1 1/4 inch by 6 inch Lead Free Brass Nipple is a Schedule 40 pipe fitting engineered for durability and safety in various piping systems. Constructed from lead-free brass conforming to ASTM B43, it is ideal for potable water applications, meeting NSF/ANSI61 and NSF/ANSI372 standards. The nipple's dimensions and ends conform to ASTM B687, and its threads meet ASME B1.20.1 for seamless integration with standard threaded fittings. CRN approved, this versatile nipple provides a robust and compliant solution for both plumbing and industrial connections.
Help Me Connect
Help Me Connect
Connections
This 1 1/4 inch brass nipple features male threads on both ends, designed to connect with 1 1/4 inch female NPT (National Pipe Taper) threaded fittings. The threads conform to ASME B1.20.1, ensuring a reliable, leak-tight seal when properly installed with compatible pipe dope or PTFE tape.

Collapsible content
Additional Details
This is a 1 1/4 inch by 6 inch lead-free brass nipple, designed for durable and reliable connections in various piping systems. It is commonly used in plumbing, industrial, and commercial applications where potable water and chemical compatibility are required.
Material and Construction
- Constructed from Lead Free Brass conforming to ASTM B43.
- Schedule 40 pipe thickness for robust performance.
Connections and Standards
- Dimensions and ends conform to ASTM B687.
- Threads conform to ASME B1.20.1, ensuring compatibility with standard threaded fittings.
Certifications
- Meets NSF/ANSI61 for potable water applications.
- Meets NSF/ANSI372 for low lead content.
- CRN (Canadian Registration Number) approved for use in Canada.
Specifications
- Nominal Pipe Size: 1 1/4 inch
- Length: 6 inches
- Material: Lead Free Brass
- Schedule: 40
- Outer Diameter (A): 1.368 inches
- Outer Diameter (B): 1.660 inches
- Thread Length (L1): 1.009 inches
- Minimum Wall Thickness (T): 0.138 inches
Certificates & Approvals
- Conforms to ASTM B43
- Conforms to ASTM B687
- Threads conform to ASME B1.20.1
- Meets NSF/ANSI61
- Meets NSF/ANSI372
- Meets CRN
FAQs
What is the main material of this nipple?
This nipple is constructed from Lead Free Brass, which conforms to ASTM B43 standards.
Can this nipple be used for drinking water applications?
Yes, it is rated Lead Free and meets NSF/ANSI61 and NSF/ANSI372 standards, making it suitable for potable water applications.
What type of threads does this brass nipple have?
The threads on this nipple conform to ASME B1.20.1, which specifies NPT (National Pipe Taper) threads for reliable connections with standard female threaded fittings.
What is the Schedule rating of this nipple?
This is a Schedule 40 brass nipple, indicating its wall thickness and suitability for various pressure applications.
What are the primary dimensions of this product?
This nipple has a nominal pipe size of 1 1/4 inches and an overall length of 6 inches.
