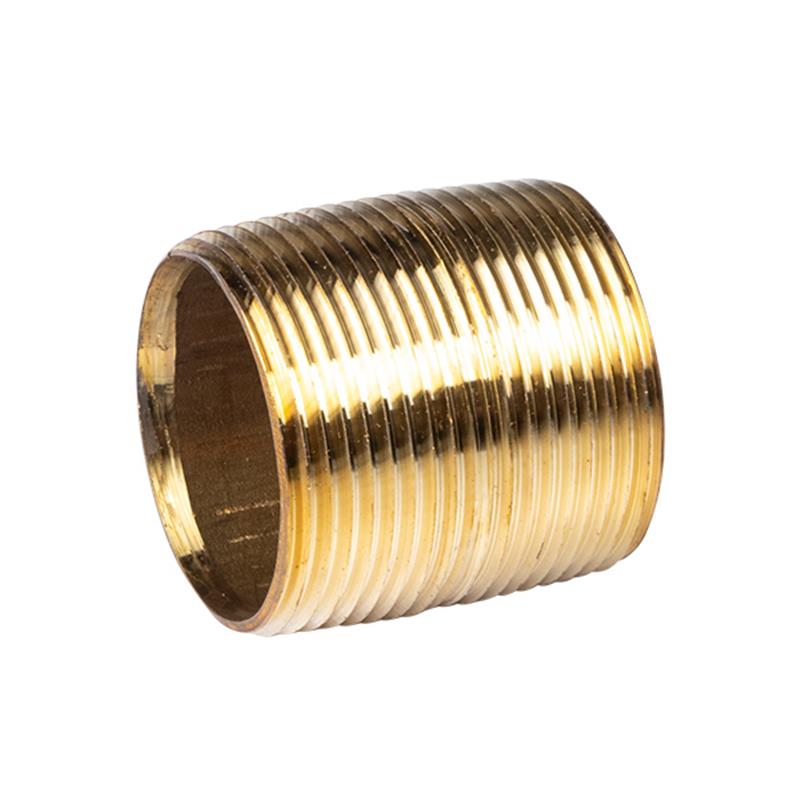

1 1/4" x Close Lead Free Brass Nipple

Item Number: 1854
Skip to product information
1 of 1
Regular price $9.75
In Stock (10)
Estimated transit time: 2 to 3 Business Days Eligible for Express Shipping

Brand - Matco-Norca

  • Material: Lead Free Brass
  • Weight: 0.36 lb
  • Pipe Schedule: Schedule 40
  • Nominal Pipe Size: 1 1/4 inch
  • Nipple Type: Close
  • Length: 1 5/8 inch
  • Thread Standard: ASME B1.20.1
  • Meets NSF/ANSI61 & NSF/ANSI372
  • CRN Compliant
  • Conforms to ASTM B43 & B687

Description

This is a 1 1/4 inch x Close lead-free brass nipple, manufactured to Schedule 40 standards for robust performance. It is designed for plumbing and industrial systems requiring durable, compliant connections. The nipple features threads conforming to ASME B1.20.1 for reliable installation and meets rigorous standards including NSF/ANSI61, NSF/ANSI372, CRN, ASTM B43, and ASTM B687. Its 1 5/8 inch length and lead-free construction make it suitable for various applications where a compact, close nipple is required. Item number 1854.

Help Me Connect

Thread Compatibility

This brass nipple features threads conforming to ASME B1.20.1, which is the standard for NPT (National Pipe Taper) threads. This ensures compatibility with a wide range of standard female NPT threaded connections commonly found in plumbing and industrial systems.

View full details

Collapsible content

Additional Details

This is a 1 1/4 inch x Close lead-free brass nipple, manufactured to Schedule 40. It is commonly used in various plumbing and industrial applications where a durable and compliant close-nipple connection is required.
Features
  • Constructed from Lead Free Brass for safe and compliant use.
  • Schedule 40 pipe for robust performance.
  • Dimensions and ends conform to ASTM B687.
  • Threads conform to ASME B1.20.1 for reliable connections.
  • Meets NSF/ANSI61 and NSF/ANSI372 standards.
  • CRN Compliant for regulatory assurance.
  • Available in various lengths, with this specific nipple being a Close type with a length of 1 5/8 inches.

Specifications

  • Material: Lead Free Brass
  • Pipe Schedule: Schedule 40
  • Nominal Pipe Size: 1 1/4 inch
  • Nipple Type: Close
  • Thread Standard: ASME B1.20.1
  • Length (L): 1 5/8 inch
  • Outer Diameter (A): 1.368 inch
  • Outer Diameter (B): 1.660 inch
  • Minimum Wall Thickness (Tmin): 0.138 inch

Certificates & Approvals

  • ASTM B43
  • ASTM B687
  • NSF/ANSI61
  • NSF/ANSI372
  • CRN

FAQs

What is a 'close' nipple?

A close nipple is a pipe fitting that is threaded on both ends with no unthreaded surface between the two threaded portions, allowing for two other fittings to be screwed together with minimal space.

What standards does this brass nipple meet?

This brass nipple conforms to ASTM B43 for lead-free brass material and ASTM B687 for dimensions and ends. Its threads conform to ASME B1.20.1, and it meets NSF/ANSI61, NSF/ANSI372, and CRN certifications.

Is this nipple suitable for potable water applications?

Yes, this nipple meets NSF/ANSI61 and NSF/ANSI372 standards, which makes it certified safe for use in potable (drinking) water systems.

What is the material of this nipple?

This nipple is made from Lead Free Brass, ensuring it is safe for various applications, including those involving drinking water.

What is the overall length of the 1 1/4 inch close nipple?

The overall length (L) of this 1 1/4 inch close nipple is 1 5/8 inches.
