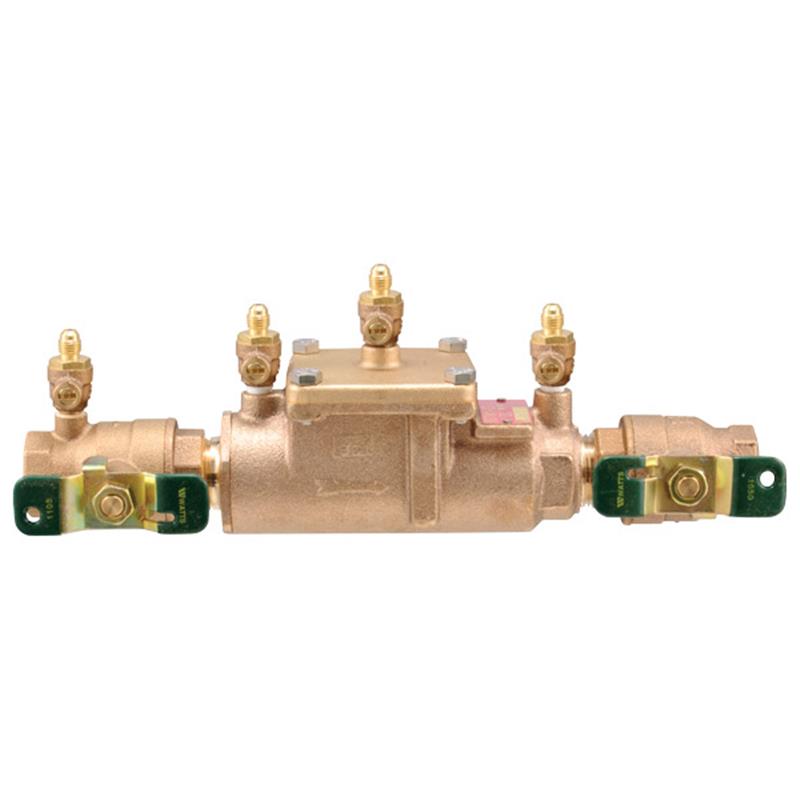

1/2 2000B

Item Number: 0062490
1 1
$511.88
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Nominal Size: 1/2 inch
  • Weight: 2.9 lb
  • Body Material: Cast Bronze
  • Maximum Working Pressure: 175 PSI
  • Temperature Range: 33°F – 140°F
  • Features: Top entry access cover
  • Design: Compact and modular
  • Approvals: ASSE 1015, AWWA C510, CSA B64.4
  • Shutoffs: Quarter turn ball valves with tee handles

Description

The 1/2 inch Ames 2000B Double Check Valve Backflow Preventer Assembly is designed to protect potable water supplies from contamination in non-health hazard cross-connections. Featuring a durable cast bronze body and a compact, modular design, it is approved for both horizontal and vertical installations. This assembly includes two positive seating check modules, quarter turn ball valve shutoffs with tee handles, and top-mounted test cocks, all contributing to ease of maintenance and low pressure drop. It operates up to 175 PSI with a temperature range of 33°F to 140°F. Ideal for irrigation, fire line, and industrial processing applications. Item number 0062490.

Help Me Connect

Connections

  • The assembly features NPT end connections for easy installation into a piping system.
  • Designed for versatile installation, approved for both horizontal and vertical orientations.

Application

This double check valve assembly is suitable for non-health hazard applications such as irrigation systems, fire line protection, and various industrial processing requirements.

View full details

Additional Details

The 1/2 inch Ames 2000B Double Check Valve Backflow Preventer Assembly is designed to protect potable water supplies from dangerous cross-connections involving non-health hazard non-potable service applications.

This assembly prevents the reverse flow of contaminated water into the potable water supply due to backsiphonage or backpressure, ideal for irrigation, fire lines, and industrial processing.

Features

  • Bronze body construction with one top entry access cover for easy maintenance.
  • Modular and compact design for easy installation in horizontal or vertical positions.
  • Equipped with replaceable seats and seat discs for extended service life.
  • Top mounted ball valve test cocks for convenient testing.
  • Low pressure drop design.
  • No special tools required for maintenance.
  • Features quarter turn ball valve shutoffs with tee handles.

WARNING: It is illegal to use this product in any plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States. Before installing standard plumbing product, consult your local water authority, building and plumbing codes.

Specifications

General

  • Product Type: Double Check Valve Backflow Preventer Assembly
  • Nominal Size: 1/2 inch
  • Body Material: Cast Bronze
  • Design: Modular, Compact
  • Check Modules: Two positive seating
  • Access: One top entry cover
  • Shutoffs: Quarter turn ball valves with tee handles
  • Test Cocks: Top mounted ball valve type

Performance

  • Maximum Working Pressure: 175 PSI (12.1 bar)
  • Temperature Range: 33°F – 140°F (0.5°C – 60°C)

Certificates & Approvals

  • ASSE 1015
  • AWWA C510
  • IAPMO PS31
  • IAPMO C US
  • UL C US
  • CSA B64.4
  • Approved by The Foundation for Cross-Connection Control and Hydraulic Research at the University of Southern California

FAQs

What is the primary purpose of the Ames 2000B Double Check Valve Assembly?

Its primary purpose is to protect drinking water supplies from contamination caused by reverse flow from non-health hazard, non-potable water sources due to backsiphonage or backpressure.

What are the key features that make this backflow preventer easy to maintain?

The Ames 2000B features a single top entry access cover, replaceable seats and seat discs, and top-mounted ball valve test cocks. No special tools are required for maintenance.

What is the maximum operating pressure and temperature range for this device?

This double check valve assembly has a maximum working pressure of 175 PSI (12.1 bar) and can operate within a temperature range of 33°F to 140°F (0.5°C to 60°C).

Is this backflow preventer suitable for both horizontal and vertical installations?

Yes, the compact, modular design of the Ames 2000B is approved for installation in both horizontal and vertical orientations.

What certifications and approvals does the 1/2 inch Ames 2000B hold?

The assembly meets ASSE 1015, AWWA C510, IAPMO PS31, IAPMO C US, UL C US, and CSA B64.4 standards. It is also approved by the Foundation for Cross-Connection Control and Hydraulic Research at the University of Southern California.
