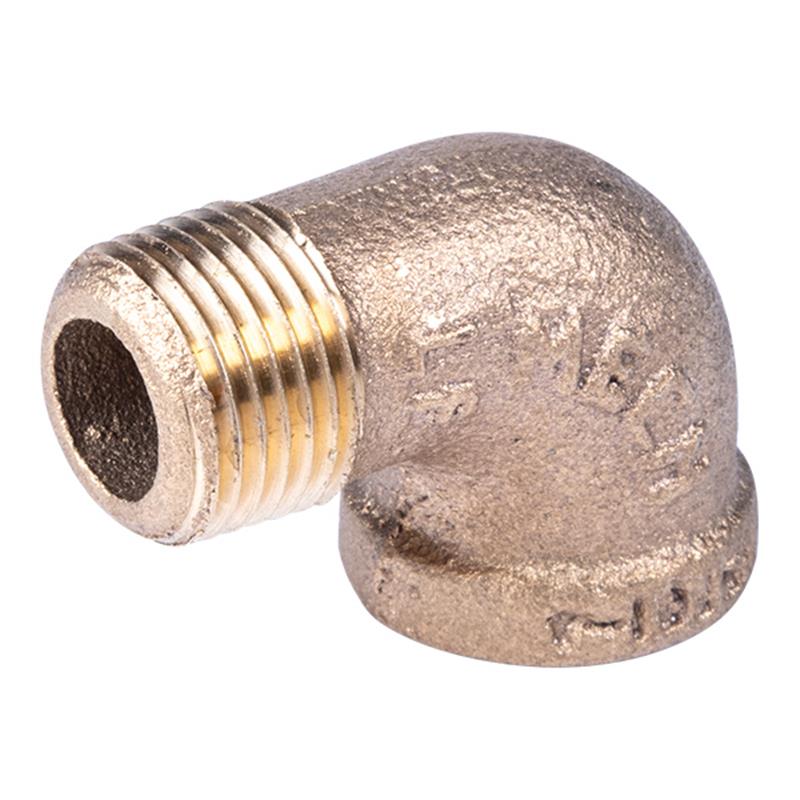

1/2" Lead Free 90 Degree Brass Street Elbow
Item Number: 15519
1
/
of
1
Regular price
$9.38
Limited Stock
(2)
Estimated transit time: 2 to 5 Business Days
Eligible for Express Shipping
Brand - Matco-Norca
Couldn't load pickup availability
- Nominal Pipe Size: 1/2 inch
- Weight: 0.22 lb
- Fitting Type: 90 Degree Street Elbow
- Body Material: Lead Free Brass (ASTM B584, Alloy C89833)
- Pressure Class: 125 lbs.
- Thread Standard: ASME B1.20.1
- Approved for potable water use (NSF 61)
- Certified lead-free (NSF 372)
- Overall Length (A): 0.78 inch
Description
Description
The 1/2 inch Lead Free 90 Degree Brass Street Elbow is an essential fitting for potable water systems and general plumbing. Constructed from ASTM B584 Alloy C89833 lead-free brass, it ensures safe water delivery. This street elbow features a 1/2 inch male NPT connection on one end and a 1/2 inch female NPT connection on the other, allowing for a tight 90-degree directional change. It is designed for Class 125 lbs. applications and meets ASME B1.20.1 thread standards. Key approvals include NSF 61 for potable water and NSF 372 for lead-free compliance, making it a reliable choice for various installations. Item number 15519.
Help Me Connect
Help Me Connect
Connections
- The male NPT threads connect to a 1/2 inch female NPT port on a pipe or fitting.
- The female NPT threads connect to a 1/2 inch male NPT pipe or fitting.
- Ensures a secure and leak-free connection when used with compatible NPT components and appropriate sealing methods.

Collapsible content
Additional Details
The 1/2 inch Lead Free 90 Degree Brass Street Elbow is a high-quality fitting designed to change the direction of piping by 90 degrees in potable water and general plumbing applications. Its male and female threaded connections make it ideal for connecting a pipe to another fitting in tight spaces.
Features
- Constructed from lead-free brass (ASTM B584, Alloy C89833) for safe potable water use.
- 90-degree turn for efficient directional changes in plumbing lines.
- Designed for Class 125 lbs. applications.
Connections
- One end features 1/2 inch male NPT threads for connection into a female NPT port.
- The other end features 1/2 inch female NPT threads for connection to a male NPT pipe.
- Threads comply with ASME B1.20.1 standards.
Compliance
- Approved for potable water applications by NSF 61.
- Certified lead-free by NSF 372.
- Dimensions conform to ASME B16.15 and ASME B16.18.
Specifications
- Body Material: Lead Free Brass (ASTM B584, Alloy C89833)
- Fitting Type: 90 Degree Street Elbow
- Nominal Pipe Size: 1/2 inch
- Connection Type: NPT Male x NPT Female
- Pressure Class: 125 lbs.
- Overall Length (A): 0.78 inch
- Center to Male Thread End (B): 1.06 inch
- Thread Standard: ASME B1.20.1
- Dimensional Standards: ASME B16.15, ASME B16.18
Certificates & Approvals
- NSF 61
- NSF 372
FAQs
What is the primary material of this street elbow?
This street elbow is manufactured from lead-free brass, specifically ASTM B584, Alloy C89833, ensuring safety for potable water applications.
What are the connection types and sizes for this fitting?
This is a 1/2 inch street elbow, featuring a 1/2 inch male NPT (National Pipe Taper) thread on one end and a 1/2 inch female NPT thread on the other end.
Is this fitting approved for use with drinking water?
Yes, this lead-free brass street elbow is approved for potable water applications, holding certifications from NSF 61 and NSF 372.
What is the maximum pressure rating for this 90-degree street elbow?
This fitting is rated for Class 125 lbs. applications, which indicates its suitability for general plumbing and low to medium pressure systems.
What are the exact dimensions (A and B) for the 1/2 inch street elbow?
For the 1/2 inch size, the overall length (Dimension A) from the center of the run to the end of the fitting is 0.78 inches. The length from the center of the run to the end of the male thread (Dimension B) is 1.06 inches.
