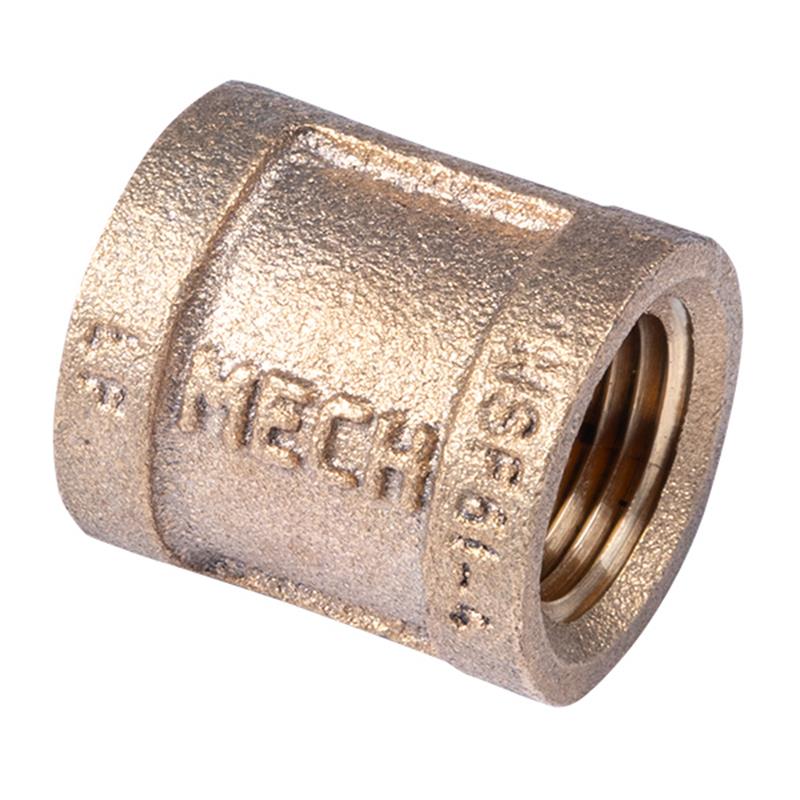

1/2" Lead Free Brass Coupling

Item Number: 15337
Skip to product information
1 of 1
Regular price $6.23
Limited Stock (9)
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Brand - Matco-Norca

  • Lead-free brass construction
  • Weight: 0.18 lb
  • Nominal Pipe Size: 1/2 inch
  • Class Rating: 125 lbs.
  • Thread Type: Female NPT
  • Certifications: NSF 61, NSF 372
  • Material: ASTM B584, Alloy C89833
  • Overall Length: 1.29 inches
  • Designed for straight pipe connections

Description

The 1/2 inch lead-free brass coupling provides a durable and safe solution for connecting two sections of male threaded pipe. Constructed from ASTM B584, Alloy C89833 lead-free brass, this Class 125 lbs. fitting is certified by NSF 61 and NSF 372, making it suitable for potable water applications. Its ASME B1.20.1 NPT threads ensure reliable connections in plumbing and industrial systems. With an overall length of 1.29 inches, it is a compact and essential component for secure pipe assembly. Item number 15337.

Help Me Connect

Connections

  • This 1/2 inch coupling features female National Pipe Taper (NPT) threads on both ends.
  • It is designed to connect two separate sections of pipe that each have 1/2 inch male NPT threads.
  • The threads conform to ASME B1.20.1 standards, ensuring compatibility with commonly available threaded pipe and fittings.
View full details

Collapsible content

Additional Details

This is a 1/2 inch lead-free brass coupling designed for connecting two sections of pipe in various plumbing and industrial applications. It creates a straight, secure connection between two male threaded pipes.

Features

  • Constructed from lead-free brass (Alloy C89833) for safe use with potable water.
  • Engineered for Class 125 lbs service, suitable for general plumbing and industrial pressure applications.
  • Conforms to ASME B1.20.1 threads ensuring compatibility with standard NPT connections.
  • Approved by NSF 61 and NSF 372 for health effects and lead content in drinking water systems.

Specifications

  • Body Material: ASTM B584, Alloy C89833
  • Nominal Pipe Size: 1/2 inch
  • Connection Type: Female NPT
  • Class Rating: 125 lbs.
  • Overall Length (A): 1.29 inches
  • Thread Standard: ASME B1.20.1

Certificates & Approvals

  • NSF 61
  • NSF 372

Dimensional Standards

  • ASME B16.15
  • ASME B16.18

FAQs

What material is this coupling made from?

This coupling is constructed from lead-free brass, specifically ASTM B584, Alloy C89833, ensuring safety for potable water applications.

What is the primary use of a 1/2" brass coupling?

Its primary use is to connect two separate sections of 1/2 inch pipe that both have male NPT threads, creating a straight and secure union.

Is this coupling approved for use with drinking water?

Yes, this coupling is approved by NSF 61 and NSF 372, indicating compliance with health effects and lead content standards for drinking water systems.

What type of threads does this coupling have?

The coupling features female National Pipe Taper (NPT) threads on both ends, conforming to ASME B1.20.1 standards for reliable connections.

What is the pressure class rating for this fitting?

This lead-free brass coupling is rated for Class 125 lbs. service, making it suitable for a variety of general plumbing and industrial pressure applications.
