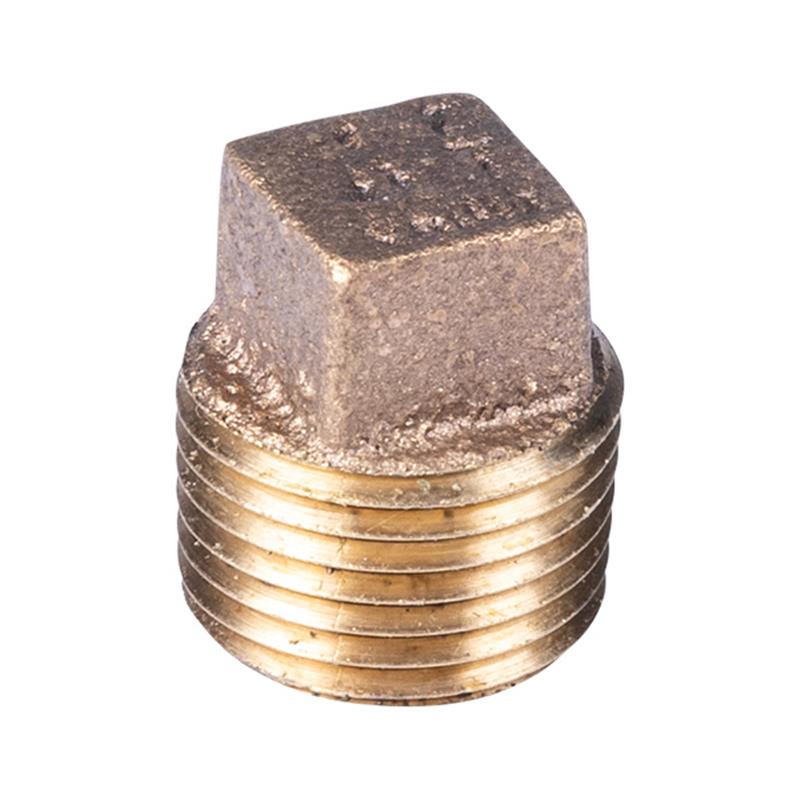

1/2" Lead Free Brass Plug

Item Number: 15404
Skip to product information
1 of 1
Regular price $5.18
In Stock (10)
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Brand - Matco-Norca

  • Plug Size: 1/2 inch
  • Weight: 0.1 lb
  • Material: Lead Free Brass (ASTM B584, Alloy C89833)
  • Class Rating: 125 lbs.
  • Thread Standard: ASME B1.20.1
  • NSF 61 Approved
  • NSF 372 Approved
  • Overall Length (A): 0.54 inches
  • Thread Length (C): 0.56 inches

Description

The 1/2 inch Lead Free Brass Plug is designed for securely capping off threaded pipe openings in plumbing systems. Constructed from durable ASTM B584, Alloy C89833 lead-free brass, it ensures compliance with safety standards for potable water. This plug features ASME B1.20.1 threads for reliable connections and is rated for Class 125 lbs. applications. It holds NSF 61 and NSF 372 approvals, making it suitable for drinking water contact. Its precise dimensions of 0.54 inches overall length and 0.56 inches thread length ensure a consistent fit.
View full details

Collapsible content

Additional Details

This is a 1/2 inch lead free brass plug, designed to reliably seal the end of a threaded pipe or fitting in various plumbing systems.
Construction & Compliance
  • Manufactured from lead-free brass (ASTM B584, Alloy C89833) for safe use in potable water applications.
  • Conforms to ASME B1.20.1 thread standards for consistent and secure connections.
  • Approved by NSF 61 and NSF 372, certifying its safety for drinking water contact.
  • Rated as Class 125 lbs., indicating its pressure capabilities.

Specifications

  • Plug Size: 1/2 inch
  • Material: Lead Free Brass (ASTM B584, Alloy C89833)
  • Thread Standard: ASME B1.20.1
  • Class Rating: 125 lbs.
  • Dimensions Standard: ASME B16.15, B16.18

Certificates & Approvals

  • NSF 61
  • NSF 372

1/2 Inch Plug Dimensions

  • Overall Length (A): 0.54 inches
  • Square Head Height (B): 0.38 inches
  • Thread Length (C): 0.56 inches

FAQs

What material is this plug made from?

This plug is manufactured from lead-free brass, specifically conforming to ASTM B584, Alloy C89833. This material ensures its suitability for potable water applications.

What size pipe does this plug fit?

This plug is designed to fit a 1/2 inch nominal pipe size and features threads that comply with ASME B1.20.1 standards for a secure connection.

Are there any certifications for potable water use?

Yes, this lead-free brass plug is approved by NSF 61 and NSF 372, certifying its safety for contact with drinking water.

What is the pressure rating for this plug?

The plug is rated as Class 125 lbs., indicating its designed capability for specific pressure applications within plumbing systems.

What are the key dimensions of the 1/2 inch plug?

For the 1/2 inch plug, the overall length (A) is 0.54 inches, the square head height (B) is 0.38 inches, and the thread length (C) is 0.56 inches.
