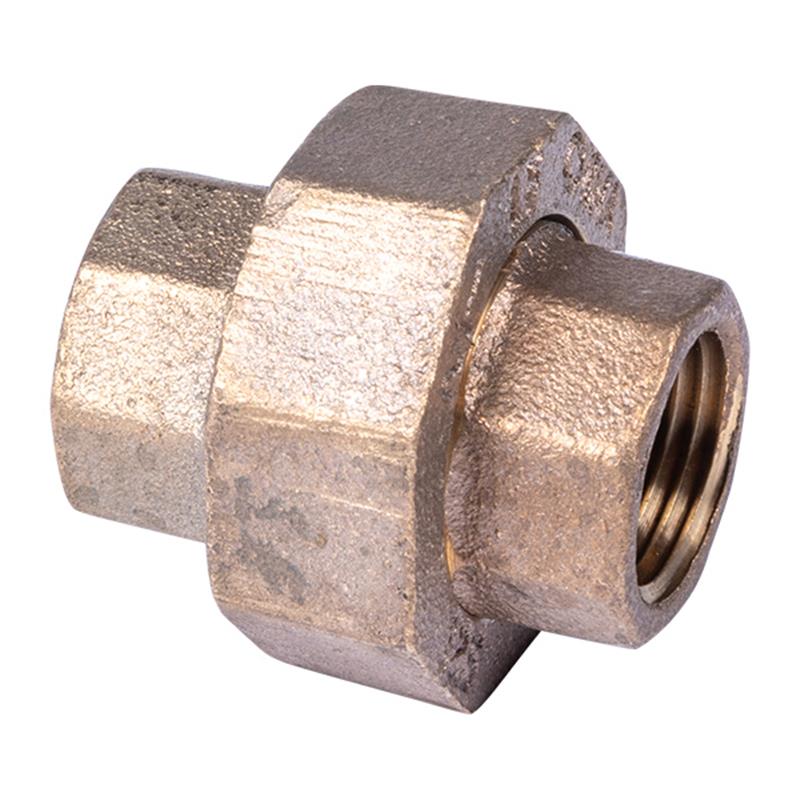

1/2" Lead Free Brass Union

Item Number: 15543
Skip to product information
1 of 1
Regular price $19.14
In Stock (10)
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Brand - Matco-Norca

  • Size: 1/2 inch
  • Weight: 0.44 lb
  • Material: Lead Free Brass (ASTM B584, Alloy C89833)
  • Class: 125 lbs.
  • Overall Length (A): 1.73 inches
  • Thread Standard: ASME B1.20.1
  • Approvals: NSF 61, NSF 372
  • Designed for easy pipe disconnection
  • Suitable for potable water applications

Description

The 1/2 inch Lead Free Brass Union (SKU: 15543) provides a robust and reliable connection for plumbing and industrial piping systems. Constructed from ASTM B584, Alloy C89833 lead-free brass, it is suitable for potable water applications and carries NSF 61 and NSF 372 approvals. This Class 125 lbs. fitting features ASME B1.20.1 compliant threaded ends, allowing two pipes to be securely joined while enabling easy disconnection for maintenance without rotating the pipes. With an overall length of 1.73 inches, it adheres to ASME B16.15 and B16.18 dimension standards for consistent sizing.

Help Me Connect

How to Connect

  • A 1/2 inch lead free brass union is used to join two pieces of pipe, typically with female NPT (National Pipe Taper) threads, creating a tight and leak-proof seal.
  • The union consists of three parts: two threaded end pieces and a nut that draws them together. This design allows for the connection and disconnection of pipes without rotating either pipe, which is particularly useful for future maintenance or modification.
  • Ensure that all connecting pipes are also 1/2 inch in size and feature male NPT threads for proper compatibility.
View full details

Collapsible content

Additional Details

This is a 1/2 inch Lead Free Brass Union, designed for securely connecting two pipes in plumbing or industrial systems, allowing for easy disconnection without rotating the pipes.

Material & Construction

  • Constructed from Lead Free Brass (ASTM B584, Alloy C89833) for safe use in potable water applications.
  • Engineered to a Class 125 lbs. rating, ensuring durability in appropriate systems.

Connections & Compatibility

  • Features threaded connections compliant with ASME B1.20.1 standards.
  • Allows for a tight, leak-free seal between two pipes, with the benefit of being able to separate the connection if needed for maintenance or system modification.

Specifications

  • Product Type: Union
  • Size: 1/2 inch
  • Body Material: Lead Free Brass
  • Material Specification: ASTM B584, Alloy C89833
  • Class: 125 lbs.
  • Overall Length (A): 1.73 inches
  • Dimensions Standard: ASME B16.15, ASME B16.18
  • Thread Standard: ASME B1.20.1

Certificates & Approvals

  • NSF 61
  • NSF 372

FAQs

What material is this union made from?

This union is made from Lead Free Brass, specifically ASTM B584, Alloy C89833, making it safe for use in potable water systems.

What size pipes is this 1/2" Lead Free Brass Union designed for?

This union is designed for use with 1/2 inch pipes, typically connecting two sections with corresponding male NPT threads.

Does this union meet any specific safety standards for water quality?

Yes, this union is approved with NSF 61 and NSF 372 certifications, indicating compliance with standards for potable water system components.

What is the "Class 125 lbs." rating?

The "Class 125 lbs." rating refers to the pressure class of the fitting, indicating its suitability for systems operating at certain pressure and temperature ranges. It signifies a robust construction for general purpose applications.

Can this union be easily disconnected once installed?

Yes, a key advantage of a union fitting is its three-piece design (two threaded ends and a nut) which allows the connection to be easily separated without needing to rotate or cut the pipes.
