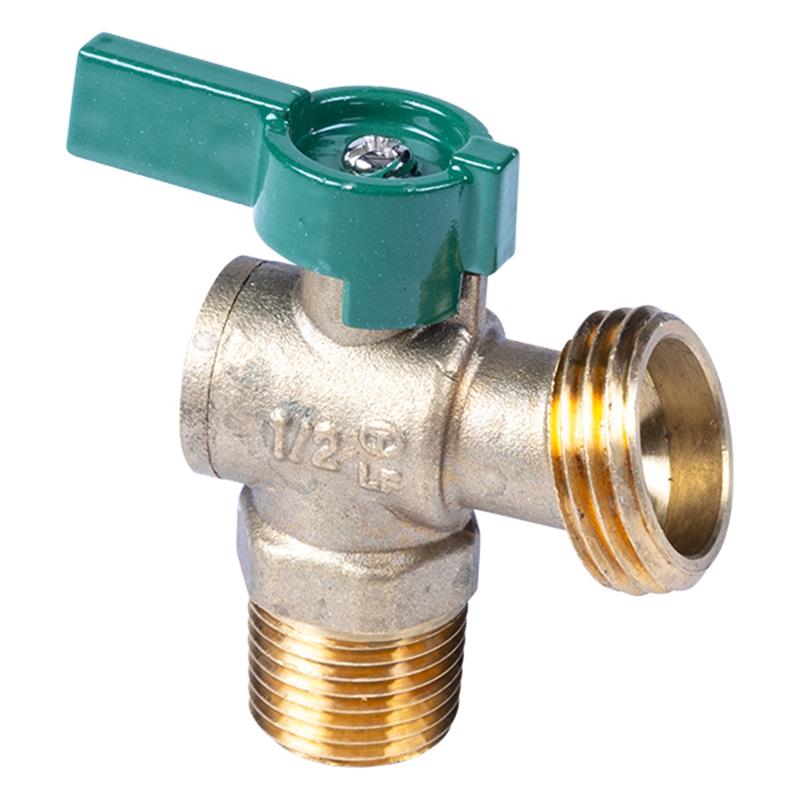

1/2" Lead Free Quarter Turn Boiler Drain
Item Number: 36232
1
/
of
1
Regular price
$21.16
In Stock
(10)
Estimated transit time: 2 to 5 Business Days
Eligible for Express Shipping
Brand - Matco-Norca
Couldn't load pickup availability
- 1/2 inch Male NPT inlet connection
- Weight: 0.24 lb
- 3/4 inch National Hose (NH) outlet connection
- Lead Free Brass construction
- Quarter Turn operation
- Maximum Working Pressure: 125 PSI
- NSF 61 and NSF 372 Approved
- UPC, cUPC, and CSA Approved
- Ideal for draining boilers and water heaters
Description
Description
This 1/2 inch lead free quarter turn boiler drain provides reliable flow control for draining boilers, water heaters, and similar residential or industrial applications. Constructed from lead free brass, it ensures safety for potable water systems. The valve features a 1/2 inch Male NPT inlet for easy installation into existing plumbing and a 3/4 inch National Hose (NH) thread outlet, compatible with standard garden hoses. Its quarter turn operation allows for quick and efficient fluid management. With a maximum working pressure of 125 PSI, and NSF 61, NSF 372, UPC, cUPC, and CSA approvals, this durable boiler drain offers dependable performance and compliance with industry standards.
Help Me Connect
Help Me Connect
Connection Information
This boiler drain features a 1/2 inch Male NPT inlet, which is compatible with standard 1/2 inch Female NPT connections commonly found on boilers, water heaters, and plumbing systems. The outlet is a 3/4 inch National Hose (NH) thread, designed to connect to standard garden hoses or other accessories with matching NH threads for easy draining.

Collapsible content
Additional Details
This is a 1/2 inch lead free quarter turn boiler drain designed for draining water heaters, boilers, and other similar applications. It features a quarter turn operation for quick and easy flow control.
Connections
- Inlet: 1/2 inch Male NPT (National Pipe Taper) thread
- Outlet: 3/4 inch NH (National Hose) thread
- NPT thread ends conform to ANSI B1.20.1.
- Hose thread conforms to ANSI B1.20.7.
Features
- Lead Free Brass construction for safe drinking water applications.
- Quarter turn handle for easy on/off operation.
- Maximum working pressure of 125 PSI.
Specifications
General
- Product Type: Boiler Drain
- Operation: Quarter Turn
- Size: 1/2 inch
- Maximum Working Pressure: 125 PSI
Materials
- Body Material: Lead Free Brass
- Ball Material: Lead Free Brass
- Stem Material: Brass
- Handle Material: Aluminum Alloy
- Cap Material: Lead Free Brass
- Packing Material: PTFE
- O-Ring Material: NBR
- Screw Material: Plated Steel
Connections
- Inlet Connection: 1/2 inch Male NPT
- Outlet Connection: 3/4 inch National Hose (NH)
- NPT Thread Standard: ANSI B1.20.1
- Hose Thread Standard: ANSI B1.20.7
Certificates & Approvals
- NSF 61 Approved
- NSF 372 Approved through IAPMO
- UPC Approved
- cUPC Approved
- CSA Approved
FAQs
What are the connection types on this boiler drain?
This boiler drain features a 1/2 inch Male NPT (National Pipe Taper) thread for the inlet and a 3/4 inch National Hose (NH) thread for the outlet. The NPT thread conforms to ANSI B1.20.1, and the hose thread conforms to ANSI B1.20.7.
Is this boiler drain suitable for potable water applications?
Yes, it is made from lead free brass and is NSF 61 and NSF 372 approved through IAPMO, making it suitable and safe for use with potable water.
What is the maximum operating pressure for this valve?
The maximum working pressure for this 1/2 inch lead free quarter turn boiler drain is 125 PSI.
What materials are used in the construction of this boiler drain?
The body, ball, and cap are made from lead free brass. The stem is brass, the handle is aluminum alloy, packing is PTFE, and the O-ring is NBR. Screws are plated steel.
Does this boiler drain have any certifications?
Yes, it is NSF 61 and NSF 372 approved through IAPMO, and also UPC, cUPC, and CSA Approved, ensuring compliance with relevant safety and performance standards.
