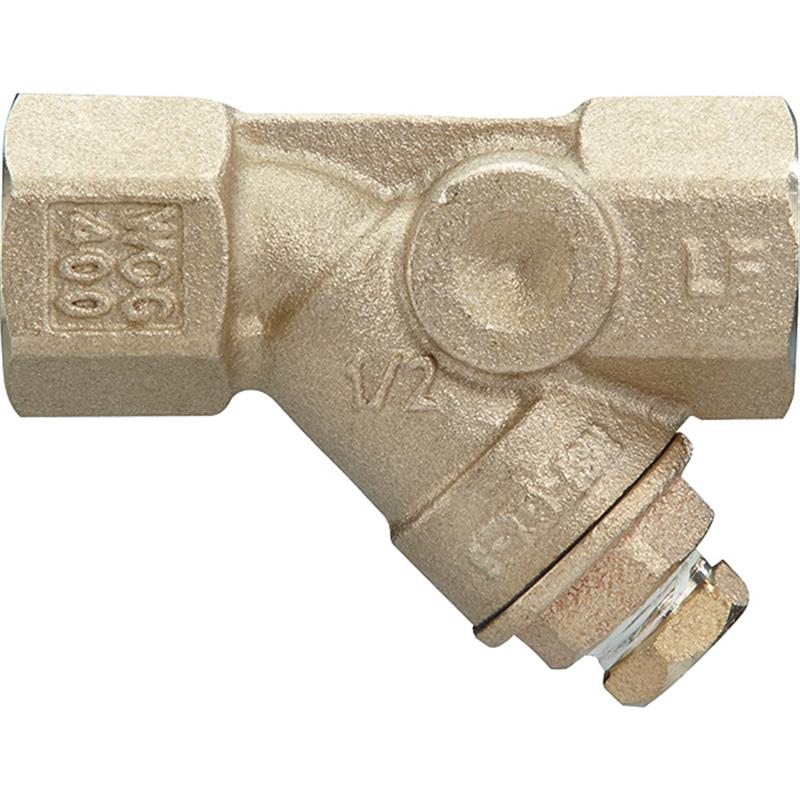

1/2 LF650A

Item Number: 0122975
1 1
$85.13
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • Lead Free* construction (less than 0.25% lead by weight)
  • Weight: 12.0 lb
  • Nominal Pipe Size: 1/2 inch
  • Body Material: Cast copper silicon alloy
  • Screen Material: 304 stainless steel
  • Screen Mesh: 20 Mesh
  • Max Working Pressure (WOG): 400 psi
  • End Connections: NPT threaded
  • Tapped retainer cap with closure plug

Description

The FEBCO Series LF650A 1/2 inch lead free Y-strainer is an essential component for protecting expensive equipment in water piping systems from debris. Constructed from durable cast copper silicon alloy and featuring a 304 stainless steel 20 mesh screen, it efficiently filters foreign material. Its lead free* design ensures compliance with modern installation requirements, having wetted surfaces with less than 0.25% lead. This strainer is rated for a maximum working pressure of 400 psi WOG at 210°F and includes NPT threaded end connections for straightforward integration. Item 0122975.

Help Me Connect

Connections

  • This FEBCO LF650A Y-strainer is designed with NPT threaded end connections.
  • It is intended for direct installation into water piping systems using compatible 1/2 inch male NPT threads.
  • The tapped retainer cap allows for connection of a closure plug or a blow-down valve for system maintenance.
View full details

Additional Details

This FEBCO Series LF650A Y-strainer is a 1/2 inch lead free cast copper silicon alloy component designed for installation in water piping systems. Its primary function is to protect expensive equipment, such as backflow preventers, from damage or failure caused by foreign material in the pipeline.

Features

  • Features Lead Free* construction, with wetted surfaces containing less than 0.25% lead by weight, to comply with Lead Free* installation requirements.
  • Includes a tapped retainer cap with a closure plug for easy maintenance and blow-down.
  • Equipped with a durable 304 stainless steel, 20 mesh screen.
  • Designed with recessed screen seats for accurate screen alignment and effective filtration.

Specifications

  • Body Material: Cast copper silicon alloy
  • Cap/Cover Material: Cast copper silicon alloy
  • Screen Material: 304 stainless steel
  • Screen Mesh: 20 Mesh
  • Nominal Pipe Size: 1/2 inch (15mm)
  • End Connections: NPT threaded
  • Maximum Working Pressure (WOG @ 210°F): 400 psi (27.6 bar)
  • Maximum Working Pressure (WSP @ 353°F): 125 psi (8.6 bar)
  • Overall Length (A): 2 3/4 inches (70 mm)
  • Overall Height (B): 1 3/8 inches (35 mm)
  • Blow-Down Port (C): 1/4 inch (6 mm)
  • Weight: 0.5 lbs (0.23 kgs)

FAQs

What is the primary purpose of the FEBCO LF650A Y-strainer?

The primary purpose is to protect expensive equipment in water piping systems, such as backflow preventers, from damage or failure caused by foreign material in the pipeline.

What material is the body of this strainer made from?

The body and cap/cover of the strainer are made from lead free cast copper silicon alloy.

What type of screen does this strainer use and what is its mesh size?

It uses a durable 304 stainless steel screen with a 20 mesh size for effective filtration of debris.

What are the maximum pressure and temperature ratings for this strainer?

The maximum working pressure is 400 psi WOG at 210°F (99°C) or 125 psi WSP at 353°F (178°C).

How does the "Lead Free" construction benefit this product?

The Lead Free* construction means the wetted surface of the product contains less than 0.25% of lead by weight, complying with Lead Free installation requirements for consumable water systems.
