1/2 LF800M4-FR-FZ

Item Number: T792016
1 1
$681.38
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Watts
  • Size: 1/2 inch
  • Body Material: Lead Free cast copper silicon alloy
  • Pressure Rating: Max 150 PSI, Min 15 PSI
  • Temperature Range: 33°F to 140°F
  • Integrated freeze sensor with SentryPlus Alert® technology
  • Includes tee handle quarter turn ball valve shutoffs
  • Built-in relief valve for freeze protection
  • Easy maintenance with replaceable plastic seat

Description

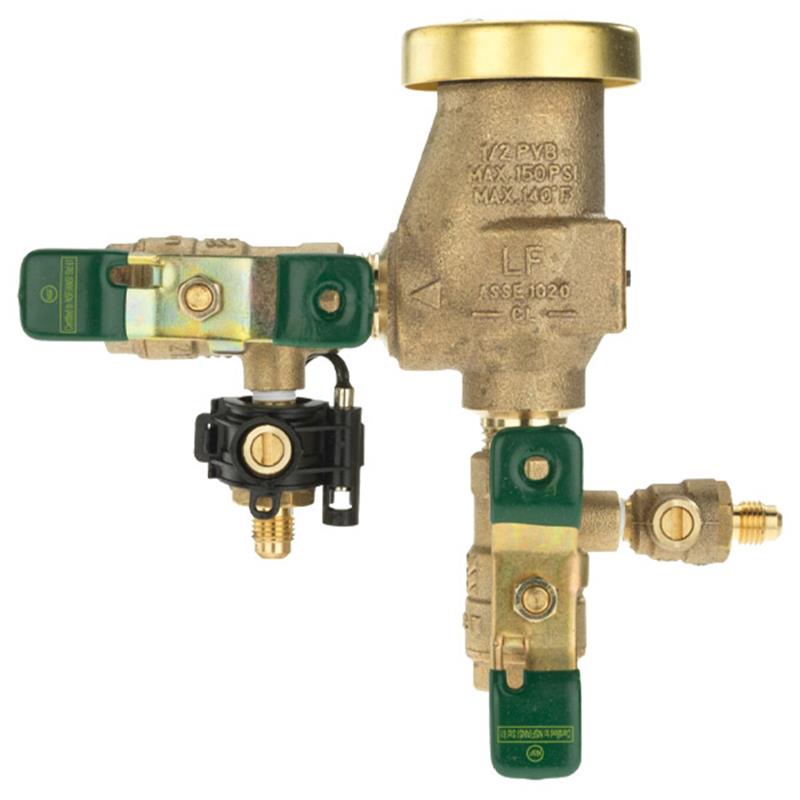

The 1/2 inch Watts LF800M4FR is a Lead Free freeze-resistant pressure vacuum breaker designed to prevent backsiphonage of contaminated water into the potable water supply. It features a cast copper silicon alloy body and protects internal components from freeze damage with a unique relief valve. An integrated freeze sensor with SentryPlus Alert® technology signals personnel when temperatures approach freezing. Ideal for health hazard continuous pressure applications like irrigation and industrial process water systems, this PVB has female NPT connections and a 150 PSI maximum operating pressure. Item T792016.

Help Me Connect

Connections

  • The inlet side connects to a 1/2 inch male NPT thread.
  • The outlet side connects to a 1/2 inch male NPT thread.
  • Both inlet and outlet feature quarter turn shutoffs with tee handles for easy operation.
  • To activate the freeze sensor and enable its alert features for Wi-Fi, BMS, or IMS, an add-on connection kit (sold separately) is required.
View full details

Additional Details

This 1/2 inch Lead Free Freeze-Resistant Pressure Vacuum Breaker (PVB) prevents backsiphonage of contaminated water under continuous pressure into the potable water supply. Its superior design protects the valve body and internal components during sudden freeze conditions by relieving pressure caused by ice formation through a unique relief valve built into the plastic float.

WARNING: The integrated freeze sensor provides alerts about a possible freeze event but does not prevent it from occurring. User action is required to prevent freeze conditions from causing product and/or property damage.

Features

  • Prevents backsiphonage of contaminated water into potable water supply.
  • Equipped with a freeze sensor for use with SentryPlus Alert® technology to monitor temperature and alert facility personnel when freeze conditions approach or reach freezing.
  • Alerts are available with an add-on connection kit (sold separately) for Wi-Fi networks, building management systems (BMS), and irrigation management systems (IMS).
  • Lead Free cast copper silicon alloy body for durability and compliance with Lead Free installation requirements.
  • Unique built-in relief valve relieves pressure caused by ice formation.
  • Features a replaceable plastic seat for easy maintenance.
  • O-ring bonnet seal reduces the possibility of fouling.
  • Silicone seat disc ensures durability.
  • Test cocks are positioned for easy testing and winterization.
  • Compact, space-saving design.
  • Standardly equipped with tee handle quarter turn ball valve shutoffs for sizes 1/2 inch to 1 inch.
  • No special tools are required for servicing.

Specifications

  • Product Type: Freeze-Resistant Pressure Vacuum Breaker
  • Nominal Size: 1/2 inch
  • Body Material: Lead Free cast copper silicon alloy
  • Check Valve Disc: Silicone rubber
  • Check Valve Seat: Noryl® plastic
  • Springs Material: Stainless steel
  • Bonnet Material: Celcon®
  • Vent Disc Material: Silicone rubber
  • Disc Holder Float Material: Polypropylene
  • Maximum Operating Pressure: 150 PSI (10.3 bar)
  • Minimum Operating Pressure: 15 PSI (55 kPa)
  • Temperature Range: 33°F to 140°F (0.5°C to 60°C)

Certificates & Approvals

  • ASSE 1020
  • IAPMO
  • CSA B64.4
  • NSF

FAQs

What is the primary function of the Watts LF800M4FR pressure vacuum breaker?

Its primary function is to prevent contaminated water from flowing back into the potable water supply due to backsiphonage, protecting the drinking water system.

How does this device protect against freezing temperatures?

It features a superior design that protects the valve body and internal components. A unique relief valve built into the plastic float relieves pressure caused by ice formation as water freezes and expands.

What does the integrated freeze sensor do?

The freeze sensor, used with SentryPlus Alert® technology, monitors temperature and alerts facility personnel when conditions approach or reach freezing. This helps prevent potential damage to equipment.

Is the freeze sensor active right out of the box?

No, an add-on connection kit, sold separately, is required to activate the freeze sensor and enable communication with monitoring systems. Without it, the sensor is a passive component.

What are the connection types and maximum pressure rating for this PVB?

This 1/2 inch PVB features female NPT inlet and outlet connections with quarter turn shutoffs. It has a maximum operating pressure of 150 PSI.
