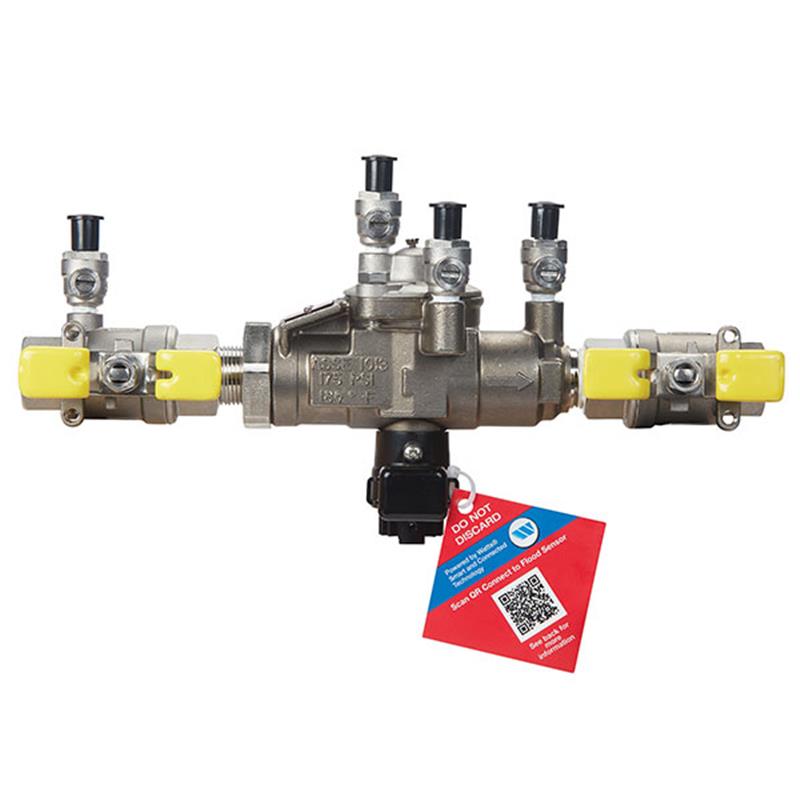

1/2 SS009M3-QT-FS

Item Number: 88004045
1 1
$4,562.25
Limited Stock (1)
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Brand - Watts
  • Assembly Size: 1/2 inch
  • Weight: 4.8 lb
  • Body Material: Investment Cast 316 Stainless Steel
  • Maximum Working Pressure: 175 psi
  • Temperature Range: 33°F - 180°F
  • Connections: NPT Inlet and Outlet
  • Shutoff Valves: Quarter-turn Ball Valves
  • Features Flood Sensor with SentryPlus Alert Technology
  • ASSE 1013 Approved

Description

The Watts Series SS009M3-QT-FS is a 1/2 inch stainless steel reduced pressure zone backflow preventer assembly, designed to safeguard potable water supplies from pollution due to backsiphonage or backpressure. Constructed from investment cast 316 stainless steel for superior corrosion resistance, it features NPT connections, quarter-turn ball valve shutoffs, and top-mounted vandal-resistant test cocks. With a maximum working pressure of 175 psi and a continuous temperature range of 33-180°F, this assembly includes a SentryPlus Alert flood sensor to detect water discharges, with optional connectivity. It is ASSE 1013 and CSA B64.4 approved, making it ideal for industrial and aggressive atmospheric applications.

Help Me Connect

Connections

  • The assembly features NPT inlet and outlet connections for straightforward installation into your plumbing system.

Flood Sensor Connectivity

  • To activate the SentryPlus Alert flood sensor's communication features, an add-on sensor connection kit is required. This kit allows the sensor to relay alerts to facility personnel via BMS or cellular communications (kits sold separately).
  • Without the add-on connection kit, the sensor operates as a passive component, detecting water discharge but without external communication.
View full details

Additional Details

The Watts Series SS009M3-QT-FS is a 1/2 inch stainless steel reduced pressure zone backflow preventer assembly, designed to prevent the flow of polluted water from entering the potable water supply due to backsiphonage and backpressure. It is suitable for health hazard installations whenever the downstream liquid may damage bronze materials or where it is desirable to eliminate trace elements of lead and copper.

Applications

  • Industrial or plant use
  • Medical/diagnostic equipment
  • Reverse osmosis systems
  • Carbonated beverage machines
  • Breweries/distilleries
  • Paper and pulp industry
  • Chemical plants and aggressive atmospheres

Key Features

  • Investment cast 316 stainless steel body and cover for superior corrosion resistance.
  • Features NPT inlet and outlet connections for straightforward installation.
  • Equipped with quarter-turn full port resilient seated ball valve shutoffs with tee handles.
  • Includes top-mounted vandal-resistant EZ-TC test cocks with covers for accessible testing.
  • Designed with an internal relief valve for reduced space requirements and easier installation.
  • Replaceable check seats and relief valve seats allow for economical repair without special tools.
  • Bolted-on, top entry single access cover simplifies maintenance.
  • Features two in-line independent check valves with captured springs and corrosion resistant internal parts.

Flood Sensor Technology

  • Includes a flood sensor with SentryPlus Alert technology to detect excessive water discharges from the relief valve.
  • When activated with an add-on sensor connection kit (sold separately), the flood sensor relays a signal to facility personnel, helping to prevent potential flooding and costly damage.

NOTICE: An add-on connection kit is required to activate the flood sensor for communication with other devices. Without the connection kit, the sensor is a passive component that has no communication with any other device. The flood sensor does not replace the need to comply with all required instructions, codes, and regulations related to installation, operation, and maintenance of this product, including providing proper drainage in the event of a discharge.

Specifications

  • Product Type: Reduced Pressure Zone Backflow Preventer
  • Assembly Size: 1/2 inch
  • Connections: NPT Inlet and Outlet
  • Shutoff Valves: Quarter-turn Ball Valves with Tee Handles
  • Test Cocks: Top-mounted, Vandal-resistant EZ-TC Test Cocks
  • Flood Sensor: SentryPlus Alert Technology Included
  • Maximum Working Pressure: 175 psi
  • Temperature Range: 33°F - 180°F (0.5°C - 82°C) continuous

Materials

  • Body Material: Investment Cast 316 Stainless Steel
  • Wetted Components: Lead Free* Stainless Steel or Plastic
  • Disc and Relief Valve: Silicone Rubber
  • Check Seats: Replaceable Polymer
  • Relief Valve Seat: Removable
  • Cover Bolts: Stainless Steel

Certificates & Approvals

  • ASSE 1013
  • CSA B64.4
  • USC Manual 9th Edition
  • AWWA C511-92

FAQs

What is the primary purpose of the Watts SS009M3-QT-FS backflow preventer?

This 1/2 inch reduced pressure zone assembly is designed to protect potable water supplies by preventing polluted water from entering due to backsiphonage or backpressure. It is suitable for health hazard installations.

What materials are used in the construction of this backflow preventer?

The assembly features an investment cast 316 stainless steel body and cover for corrosion resistance. Wetted components, including test cocks and ball valve shutoffs, are made from Lead Free* stainless steel or plastic.

What type of connections does the Watts SS009M3-QT-FS use?

It is equipped with NPT (National Pipe Taper) inlet and outlet connections, allowing for standard threaded pipe installations.

What are the operating pressure and temperature limits for this device?

The Watts SS009M3-QT-FS has a maximum working pressure of 175 psi. It is designed for continuous operation within a temperature range of 33°F to 180°F (0.5°C to 82°C).

How does the SentryPlus Alert flood sensor function?

The integrated flood sensor detects excessive water discharges from the relief valve. To enable communication and send alerts, an add-on sensor connection kit (sold separately) is required. Without the kit, the sensor is passive.
