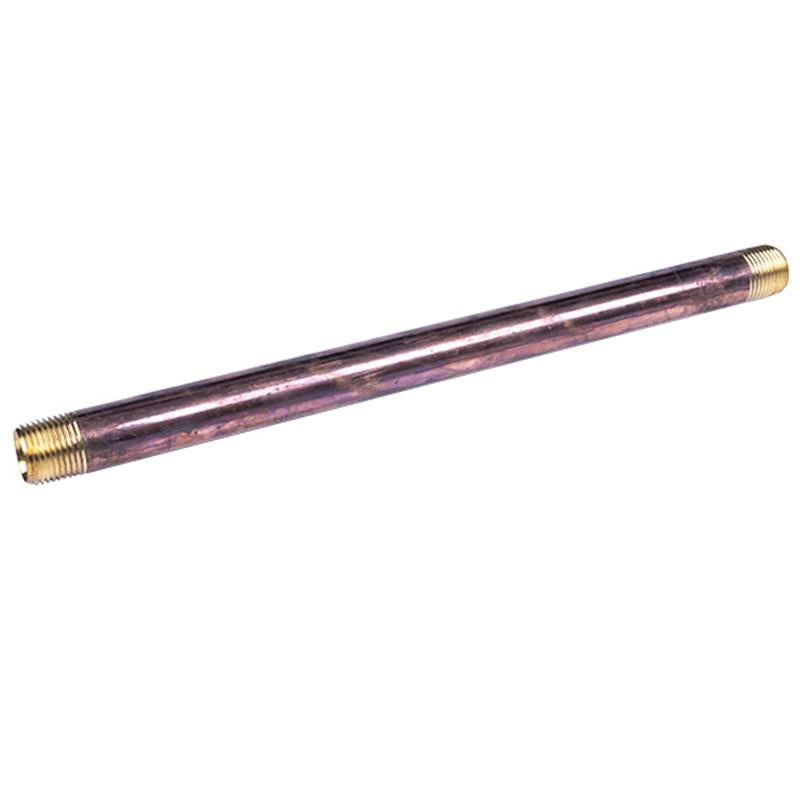

1/2" x 12" Lead Free Brass Nipple
Item Number: 3484
1
/
of
1
Regular price
$19.64
In Stock
(10)
Estimated transit time: 2 to 5 Business Days
Eligible for Express Shipping
Brand - Matco-Norca
Couldn't load pickup availability
- Lead Free Brass construction
- Weight: 0.94 lb
- Nominal Pipe Size: 1/2 inch
- Overall Length: 12 inch
- Schedule 40 pipe fitting
- Threads conform to ASME B1.20.1
- Meets NSF/ANSI 61, NSF/ANSI 372 & CRN
- Dimensions conform to ASTM B687
- Minimum Wall Thickness: 0.101 inch
Description
Description
This 1/2 inch x 12 inch Lead Free Brass Nipple is a durable Schedule 40 pipe fitting designed for extending pipe runs or connecting female-threaded components. Crafted from lead-free brass, it conforms to ASTM B43 and ASTM B687 standards, ensuring material quality and accurate dimensions. The threads are compliant with ASME B1.20.1 for reliable connections. This nipple meets NSF/ANSI 61, NSF/ANSI 372, and CRN certifications, making it suitable for potable water applications and various industrial uses. It provides a robust and safe solution for plumbing needs.
Help Me Connect
Help Me Connect
This 1/2 inch brass nipple features NPT (National Pipe Taper) threads on both ends.
It is designed to connect to 1/2 inch female NPT threaded components, creating a secure and leak-resistant connection in plumbing and industrial applications.

Collapsible content
Additional Details
This 1/2 inch x 12 inch lead free brass nipple is a Schedule 40 pipe fitting used for extending pipe runs or connecting two female-threaded components.
Material and Construction
- Constructed from lead free brass, conforming to ASTM B43 standards for reliable performance.
- Dimensions and ends conform to ASTM B687, ensuring accurate sizing.
- Threads conform to ASME B1.20.1 for secure and compatible connections.
Specifications
- Body Material: Lead Free Brass
- Pipe Schedule: Schedule 40
- Nominal Pipe Size: 1/2 inch
- Overall Length (L): 12 inch
- Outer Diameter (B): 0.840 inch
- Inner Diameter (A): 0.626 inch
- Thread Engagement Length (L1): 0.781 inch
- Minimum Wall Thickness (T): 0.101 inch
Certificates & Approvals
- NSF/ANSI 61
- NSF/ANSI 372
- CRN
FAQs
What material is this nipple made from?
This brass nipple is constructed from lead-free brass, conforming to ASTM B43 standards for material composition and quality.
What are the precise dimensions of this brass nipple?
This nipple has a nominal pipe size of 1/2 inch, an overall length of 12 inches, and is a Schedule 40 fitting. Its outer diameter is 0.840 inches and inner diameter is 0.626 inches.
What thread standard does this nipple adhere to?
The threads on this brass nipple conform to ASME B1.20.1, ensuring compatibility and a secure fit with standard NPT (National Pipe Taper) female threaded connections.
Is this brass nipple suitable for use with drinking water?
Yes, this nipple meets NSF/ANSI 61 and NSF/ANSI 372 standards, which makes it safe and suitable for use in potable water applications.
What certifications does this product hold?
This lead-free brass nipple is certified to NSF/ANSI 61, NSF/ANSI 372, and CRN standards, attesting to its quality and compliance for various applications.
