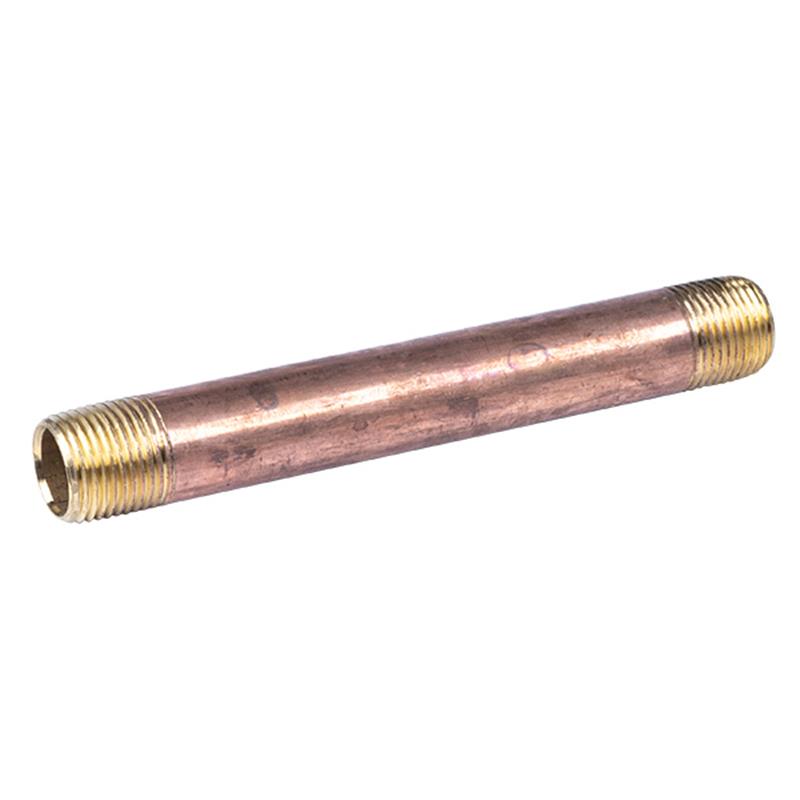

1/2" x 6" Lead Free Brass Nipple

Item Number: 2748
Skip to product information
1 of 1
Regular price $10.35
In Stock (10)
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Brand - Matco-Norca

  • Nominal Pipe Size: 1/2 inch
  • Weight: 0.47 lb
  • Length: 6 inches
  • Material: Lead Free Brass
  • Schedule: 40
  • Threads: ASME B1.20.1 compliant
  • Certified to NSF/ANSI61
  • Certified to NSF/ANSI372
  • CRN Approved

Description

This 1/2 inch x 6 inch lead-free brass nipple is designed for durable and safe plumbing connections. Constructed from Schedule 40 lead-free brass, it conforms to ASTM B43 and B687 standards, ensuring high quality and longevity. The threads are compliant with ASME B1.20.1, making it compatible with standard NPT fittings. This nipple is certified to NSF/ANSI61, NSF/ANSI372, and CRN, making it suitable for potable water applications. Ideal for commercial and residential plumbing where safety and reliability are paramount. Item number 2748.
View full details

Collapsible content

Additional Details

This is a 1/2 inch x 6 inch Lead Free Brass Nipple, engineered for reliable plumbing connections in various applications, particularly those requiring potable water safety. It features a Schedule 40 wall thickness for durability and is constructed from lead-free brass conforming to ASTM B43 standards.

Features and Benefits

  • Constructed from Lead Free Brass for safe potable water applications, conforming to ASTM B43.
  • Manufactured to Schedule 40 pipe specifications, ensuring robust wall thickness.
  • Dimensions and end standards conform to ASTM B687.
  • Threads conform to ASME B1.20.1, ensuring compatibility with standard NPT fittings.
  • Meets rigorous certifications including NSF/ANSI61, NSF/ANSI372, and CRN.

Specifications

  • Nominal Pipe Size: 1/2 inch
  • Length: 6 inches
  • Material: Lead Free Brass
  • Schedule: 40
  • Dimensions Conformance: ASTM B687
  • Threads Conformance: ASME B1.20.1
  • Wall Thickness (T-min): 0.101 inch
  • Dimension A: 0.626 inch
  • Dimension B: 0.840 inch
  • Dimension L1: 0.781 inch

Certificates & Approvals

  • NSF/ANSI61 Certified
  • NSF/ANSI372 Certified
  • CRN Approved

FAQs

What material is this nipple made from?

This nipple is made from lead-free brass, ensuring it is safe for use in potable water systems. The brass conforms to ASTM B43 standards.

What are the dimensions of this pipe nipple?

This is a 1/2 inch nominal pipe size nipple with a length of 6 inches. It has a Schedule 40 wall thickness and its dimensions and ends conform to ASTM B687.

What certifications does this brass nipple meet?

This nipple meets multiple important certifications, including NSF/ANSI61, NSF/ANSI372, and CRN, verifying its quality and suitability for various applications, including drinking water.

What type of threads does this nipple have?

The threads on this nipple conform to ASME B1.20.1, which is the standard for National Pipe Taper (NPT) threads, ensuring compatibility with most common pipe fittings.

What does 'Schedule 40' mean for this nipple?

Schedule 40 refers to the wall thickness of the pipe nipple. A Schedule 40 rating indicates a standard, robust wall thickness, providing strength and durability for typical plumbing and industrial applications.
