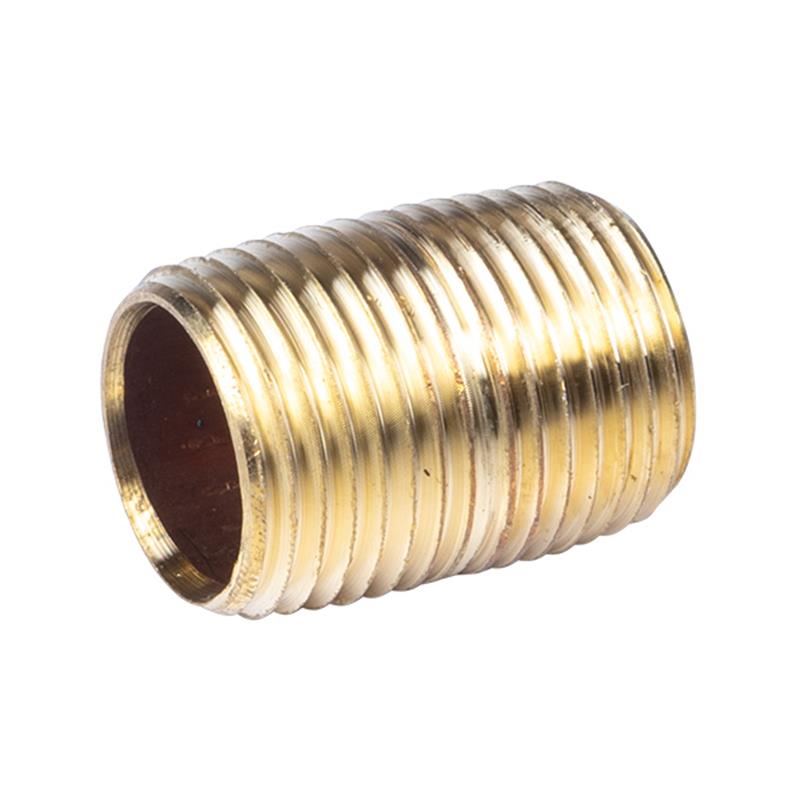

1/2" x Close Lead Free Brass Nipple

Item Number: 9368
Skip to product information
1 of 1
Regular price $2.86
Limited Stock (9)
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Brand - Matco-Norca

  • Size: 1/2 inch
  • Weight: 0.09 lb
  • Type: Close Nipple
  • Material: Lead Free Brass
  • Schedule: 40
  • Lead Free Brass conforms to ASTM B43
  • Threads conform to ASME B1.20.1
  • Meets NSF/ANSI61, NSF/ANSI372 & CRN
  • Overall Length: 1-1/8 inch

Description

The 1/2 inch x Close Lead Free Brass Nipple is a Schedule 40 pipe fitting essential for various plumbing and industrial applications. Constructed from lead-free brass conforming to ASTM B43 and B687 standards, it ensures safe and reliable connections. Its NPT threads meet ASME B1.20.1 for compatibility. This close nipple is fully threaded and suitable for connecting two female-threaded components in a compact configuration. It also meets NSF/ANSI61, NSF/ANSI372, and CRN certifications, highlighting its quality and safety. Item number 9368.

Help Me Connect

Thread Connections

This 1/2 inch brass nipple features NPT (National Pipe Taper) threads on both ends, as indicated by the 'XNPT' designation. It is designed to connect two female NPT threaded fittings or pipes, creating a compact, close connection. A 'close nipple' means it is fully threaded along its entire length, allowing fittings to be screwed together directly with minimal exposed pipe.

View full details

Collapsible content

Additional Details

This is a 1/2 inch x Close Lead Free Brass Nipple designed for connecting pipe or fittings in various plumbing and industrial applications. This close nipple is fully threaded and used to join two female-threaded components as closely as possible.

Features

  • Manufactured to Schedule 40 specifications for durability.
  • Made from Lead Free Brass conforming to ASTM B43 standards.
  • Dimensions and pipe ends meet ASTM B687 requirements.
  • Threads conform to the ASME B1.20.1 standard for reliable connections.

Specifications

General

  • Part Number: NBR03CL
  • Size: 1/2 inch
  • Type: Close Nipple
  • Material: Lead Free Brass
  • Schedule: 40
  • Overall Length (L): 1-1/8 inch
  • Min. Wall Thickness (Tmin.): 0.101 inch
  • Nominal Diameter A: 0.626 inch
  • Nominal Diameter B: 0.840 inch

Standards & Compliance

  • Material Standard: ASTM B43
  • Dimension & End Standard: ASTM B687
  • Thread Standard: ASME B1.20.1

Certificates & Approvals

  • NSF/ANSI61
  • NSF/ANSI372
  • CRN

FAQs

What is a 'close nipple'?

A close nipple is a pipe fitting that is fully threaded along its entire length, with no unthreaded surface between the two threaded ends. It is designed to connect two female-threaded fittings as closely as possible.

What material is this nipple made from?

This nipple is manufactured from Lead Free Brass, which conforms to ASTM B43 standards. This ensures it is suitable for applications where lead-free components are required.

What are the thread specifications for this nipple?

The threads on this nipple conform to the ASME B1.20.1 standard, which specifies National Pipe Taper (NPT) threads. This ensures compatibility with other NPT-threaded components.

What certifications does this brass nipple hold?

This brass nipple meets NSF/ANSI61, NSF/ANSI372, and CRN certifications, indicating its compliance with standards for drinking water system components and other safety regulations.

Can this nipple be used for potable water applications?

Yes, because it is made from Lead Free Brass and meets NSF/ANSI61 and NSF/ANSI372 certifications, it is suitable for use in potable (drinking) water systems.
